5.3 Drying System
5.3.1 Squeegee

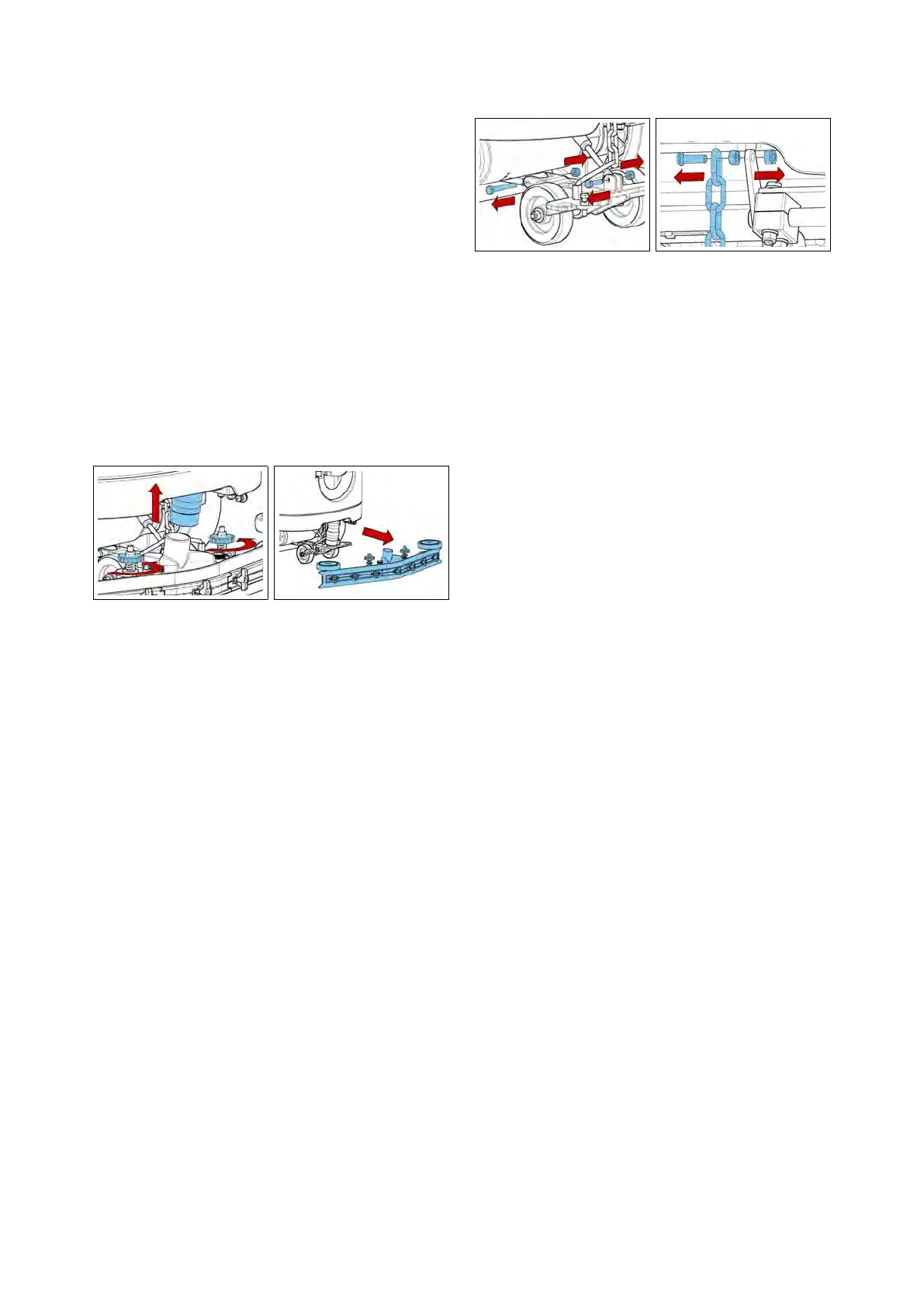

• Put the machine in safe conditions.
• Unplug the Vacuum Hose and loose
the knobs that block the Squeegee to
the Squeegee Support (see fig. 5.3.1-26).
• Remove the squeegee (see fig. 5.3.1-27).
• Proceed at reverse to refit the part.
• Check the adjustment of the
squeegee support.
5.3.1-26 5.3.1-27
5.3.2 Squeegee Support
Squeegee Coupling
• Put the machine in safe conditions.
• Disassemble the Squeegee from the
Machine (see section 5.3.1 at page 27).
• Loosen the screw that secures the
gas spring from squeegee coupling
and remove it.
• Loosen the screw that secures the
squeegee coupling from the lower
side of the squeegee support fulcrum
and remove it (see fig. 5.3.2-28).
• Loosen the screw that secures the
chain to the squeegee rear lifting
lever (see fig. 5.3.2-29).
• Remove the squeegee support.
• Proceed at reverse to refit the part.
5.3.2-28 5.3.2-29
Squeegee Support Fulcrum
• Put the machine in safe conditions.
• Disassemble the squeegee coupling.
• Remove the battery support from the
machine (see fig. 5.3.2-30)
• Loosen the upper fixing screw of the
squeegee support hub fulcrum (see fig.
5.3.2-31).
• Lay the machine on the left side.
• Remove the screws that secure the
reinforcing plate of the squeegee
support fulcrum and remove it. to-
gether with, it will be also removed
the squeegee support fulcrum hub
(see fig. 5.3.2-32).
• Remove the squeegee support ful-
crum rotating it properly (see fig. 5.3.2-
33).
27
