Fimap MXR - Page 28

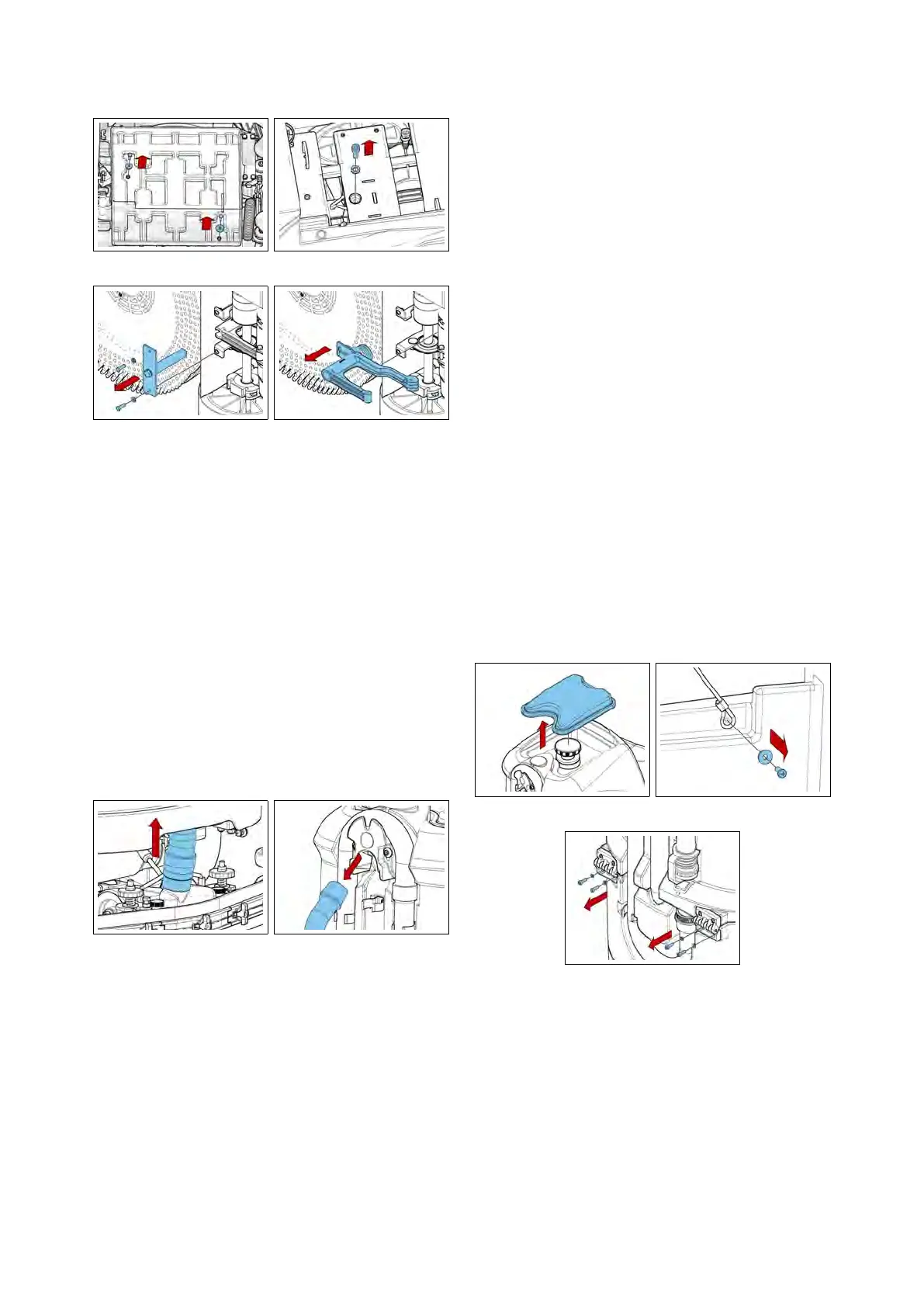

5.3.2-30 5.3.2-31
5.3.2-32 5.3.2-33
5.3.3 Vacuum Hose
• Put the machine in safe conditions.
• Unplug the Vacuum Hose from the
Squeegee (see fig. 5.3.3-34).
• Uncouple the Vacuum Hose from the
Recovery tank Inlet (see fig. 5.3.3-35).
• Slip off the hose from its housing.
• Proceed at reverse to refit the part.
5.3.3-34 5.3.3-35
5.3.4 Recovery Tank
• Make sure that the recovery tank is
completely empty.
• Put the machine in safe conditions.
• Remove the recovery tank lid and the
vacuum hose (see fig. 5.3.4-36) (see section
5.3.3 at page 28).
• Unplug the charger cable - vacuum
motor - blinking light.
• Cut the clamps that secure the ca-
bles to the solution tank.
• Loosen the screw that fix the safety
cord of the tank (see fig. 5.3.4-37).
• Unscrew the screws holding the
opening hinges to the recovery tank
(see fig. 5.3.4-38).
• Proceed at reverse to refit the part.
5.3.4-36 5.3.4-37
5.3.4-38
28
