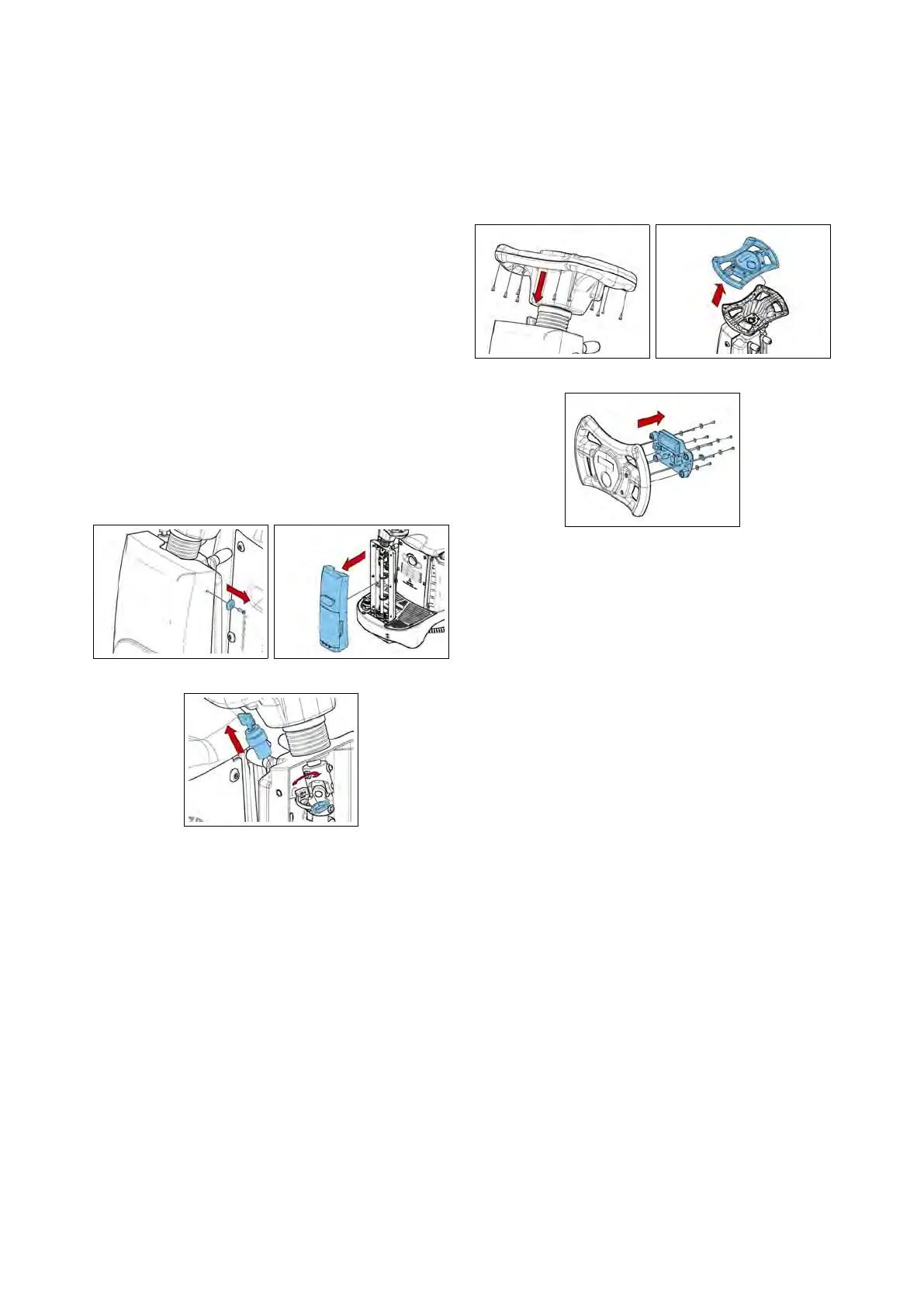

5.1 Electrical Installation
5.1.1 Key Switch
• Put the machine in safe conditions.
• Remove the screws that secure the
front carter to the steering column
(see fig. 5.1.1-1) (see fig. 5.1.1-2).
• Disconnect the wires connected to
the key switch.
• Unscrew the ring nut that secures
the key switch to the steering col-
umn and remove the key switch (see
fig. 5.1.1-3).
5.1.1-1 5.1.1-2
5.1.1-3
5.1.2 Control Card
• Put the machine in safe conditions.
• Remove the screws that secure the
upper and lower part of the steering
wheel (see fig. 5.1.2-4).
• Separate the top part from the bot-
tom part (see fig. 5.1.2-5).
• Disconnect the communication ca-
ble from the Control card.
• Unscrew the screws to remove the
control card from the top part (see fig.
5.1.2-6).
5.1.2-4 5.1.2-5
5.1.2-6
5.1.3 Main Card
• Put the machine in safe conditions.
• Remove the screws to remove the
footrest.
• Remove the screws to remove the
electrical system cover (see fig. 5.1.5-7).
• Disconnect the electrical wiring of
the Main card.
• Remove the screws that secure the
card to the support bracket and re-
move the card (see fig. 5.1.5-8).
22
