5.2.6 Brush deck lifting arms
• Put the machine in safe conditions.
• Disassemble the Brush Deck from
the machine (see section 5.2.4 at page 25).
• Unscrew the screws that hold the lift
arms from the brush deck (see fig. 5.2.6-
22) (see fig. 5.2.6-23).
• Proceed at reverse to refit the part.

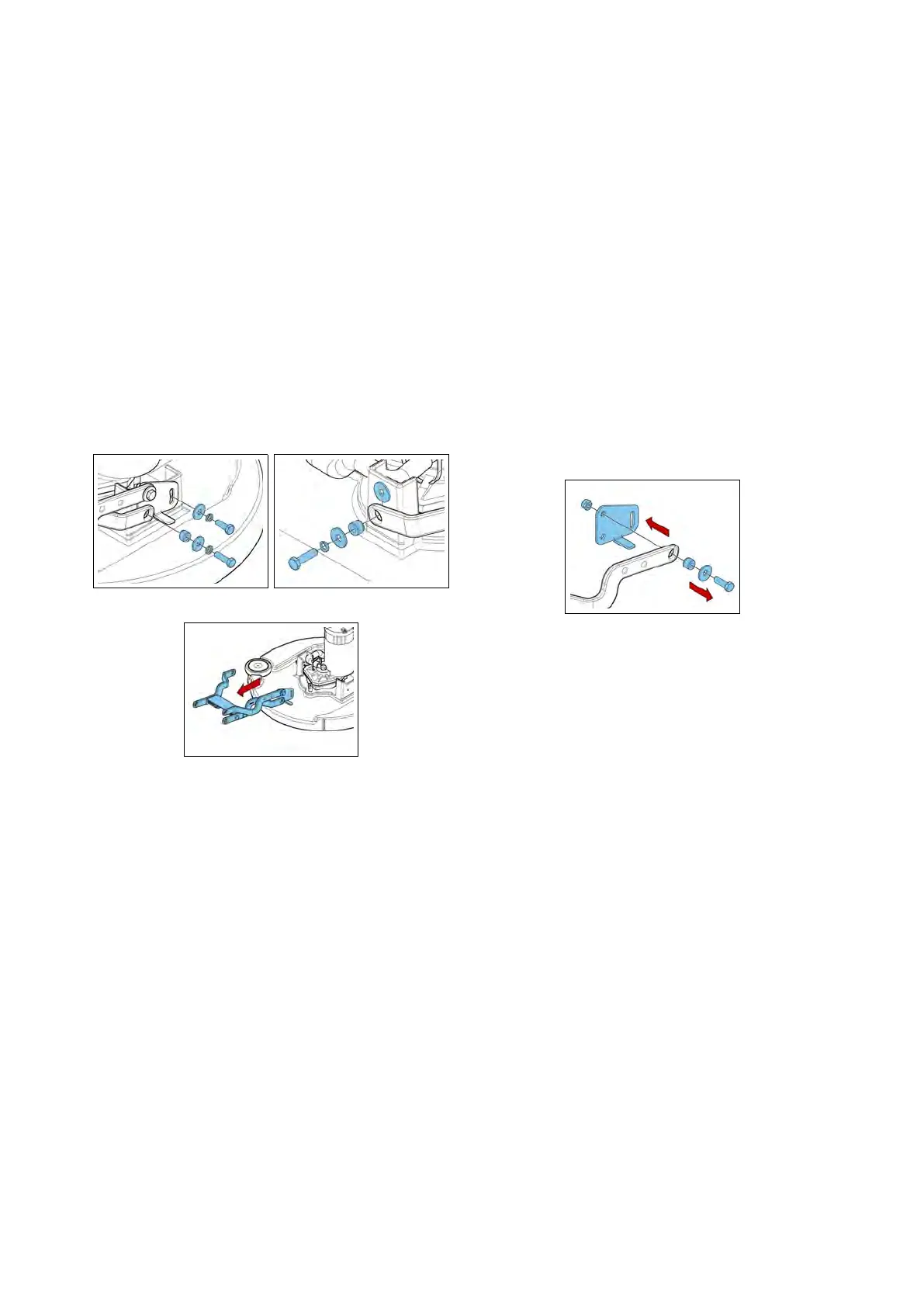

5.2.6-22 5.2.6-23
5.2.6-24
5.2.7 Brass Bushings
• Put the machine in safe conditions.
• Remove the screws that fix the Dis-
assemble the lifting arms to the
brush deck.
• Replace worn out bushings with new
ones.
• Proceed at reverse to refit the part,
being careful to lubricate the bush-
ings with grease.
5.2.8 Fixing and adjustment
plate
• Put the machine in safe conditions.
• Disassemble the Brush Deck from
the machine (see section 5.2.4 at page 25).
• Disassemble the brush deck lifting
arms.
• Remove the screw that secures the
fixing and adjustment plate to the
brush deck (see fig. 5.2.8-25).
• Proceed at reverse to refit the part.
5.2.8-25
