• Disconnect the water hose from the
solution filter (see fig. 5.5.1-77).
• Disconnect the control rod from the
water valve (see fig. 5.5.1-78).
• Release the wiring from the plastic
clamps.
• Remove the screws that secure the
solution tank to the machine frame.
• Remove the tank, pulling it out from
the steering column, taking care not
to damage the steering wheel.
• Put the tank Upside down and re-
move the solution delivery system (see
fig. 5.5.2-79) (see fig. 5.5.2-80) (see fig. 5.5.2-81).
• Proceed at reverse to refit the part.

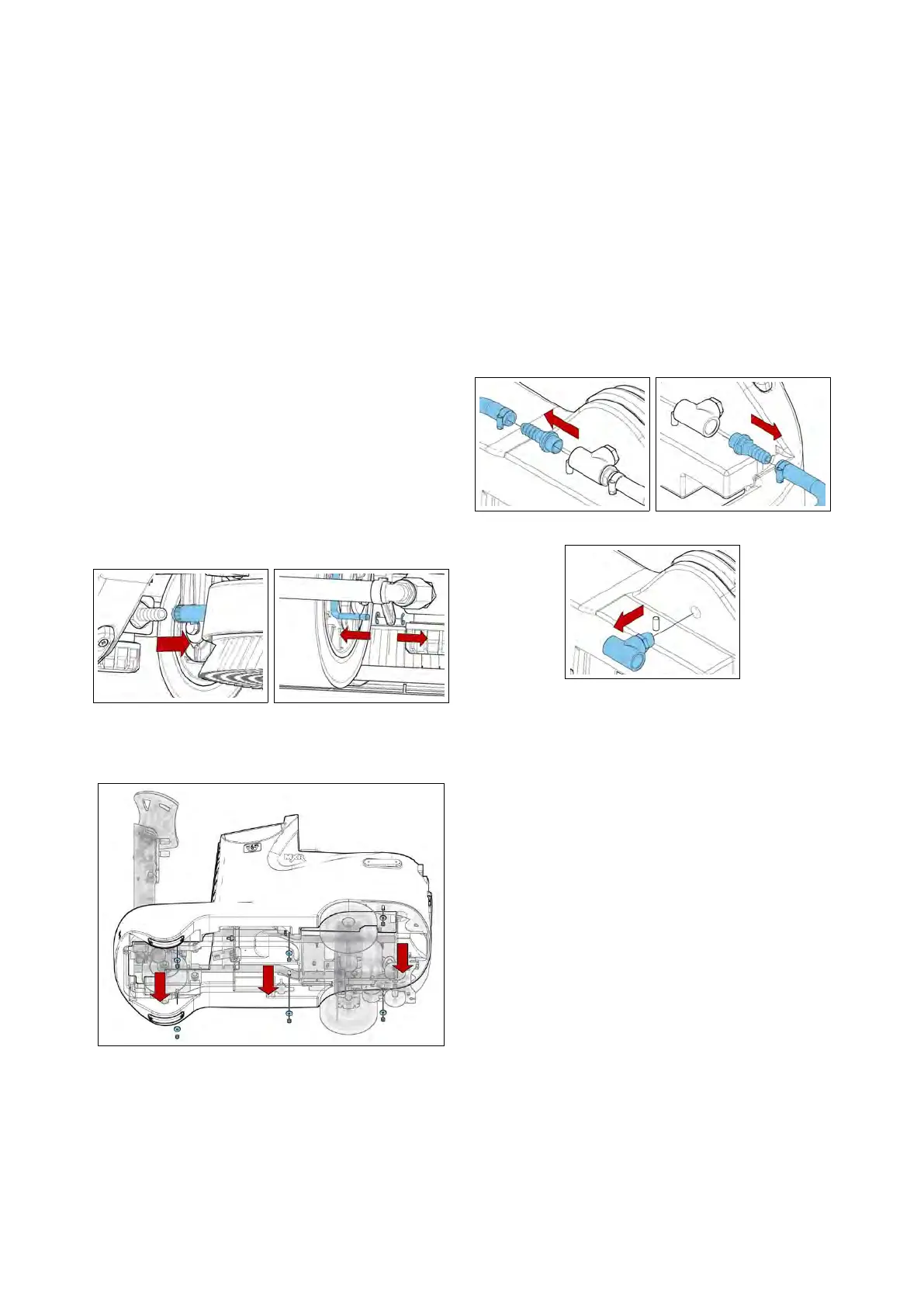

5.5.1-77 5.5.1-78
5.5.2 Hoses
• Put the machine in safe conditions.
• Loosen the clamps that hold the
hose to the fitting.
• Cut any eventual clamps that secure
the hose to the machine body.
• Remove the hose from the fitting.
5.5.2-79 5.5.2-80
5.5.2-81
