5.5.3 Water Valve / Solution
Filter
• Put the machine in safe conditions.
• Disconnect the control rod from the
water valve.
• Remove the group including the wa-
ter valve and the solution filter (see fig.
5.5.3-82).
• Disconnect the hoses from the fit-
tings of the water valve and the so-
lution filter.
• Unscrew the nipple fitting and the
straight fittings from the water valve
and the solution filter (see fig. 5.5.3-83) (see
fig. 5.5.3-84).
• Remove the solution filter.

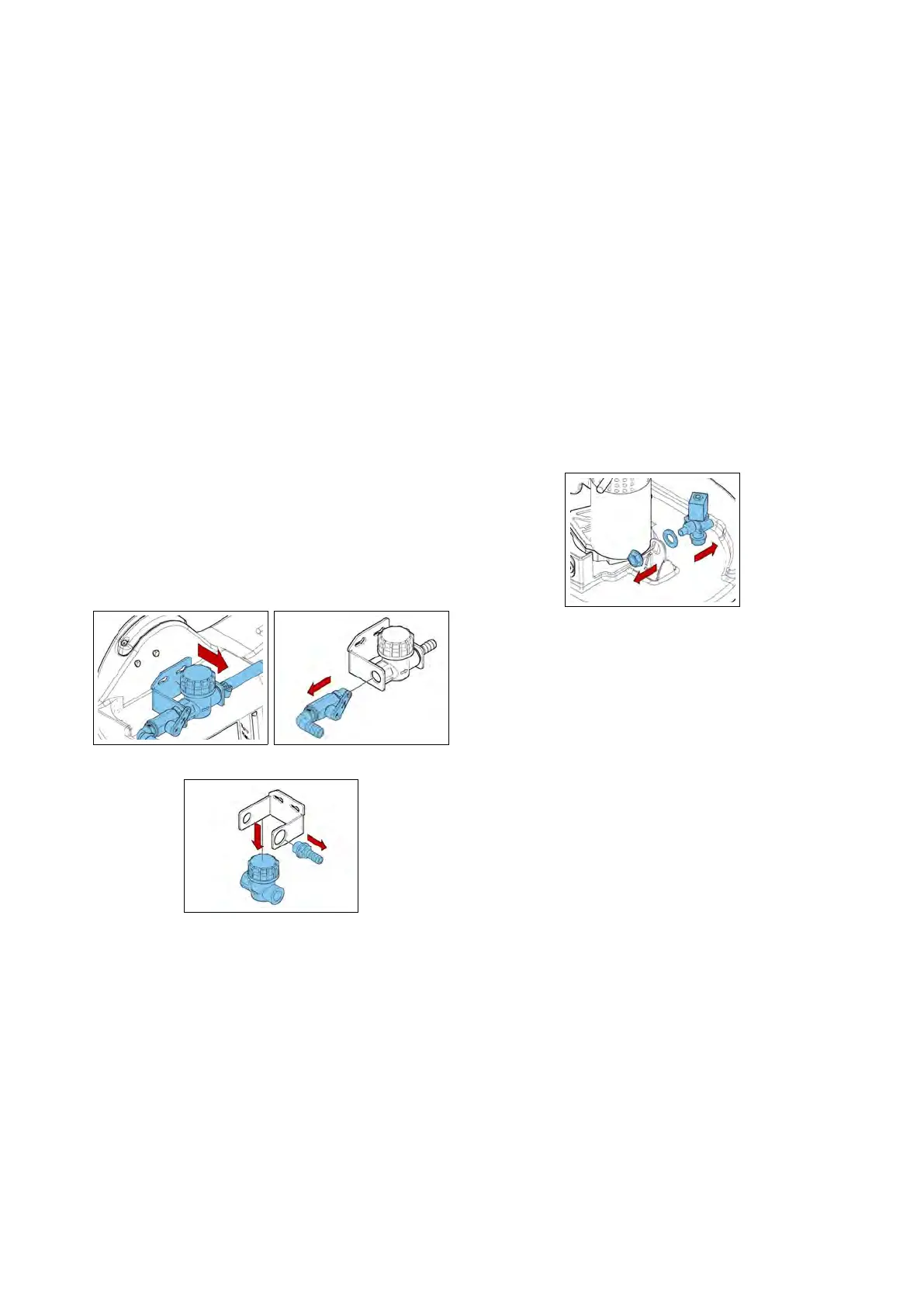

5.5.3-82 5.5.3-83
5.5.3-84
5.5.4 Solenoid Valve
• Put the machine in safe conditions.
• Lower the Brush deck.
• Remove the hoses connected to the
solenoid valve.
• Loosen the screw that secures the
solenoid connector and disconnect
the connector from the solenoid coil.
• Unscrew the plastic nut that secures
the solenoid valve to its support (see
fig. 5.5.4-85).
5.5.4-85
35
