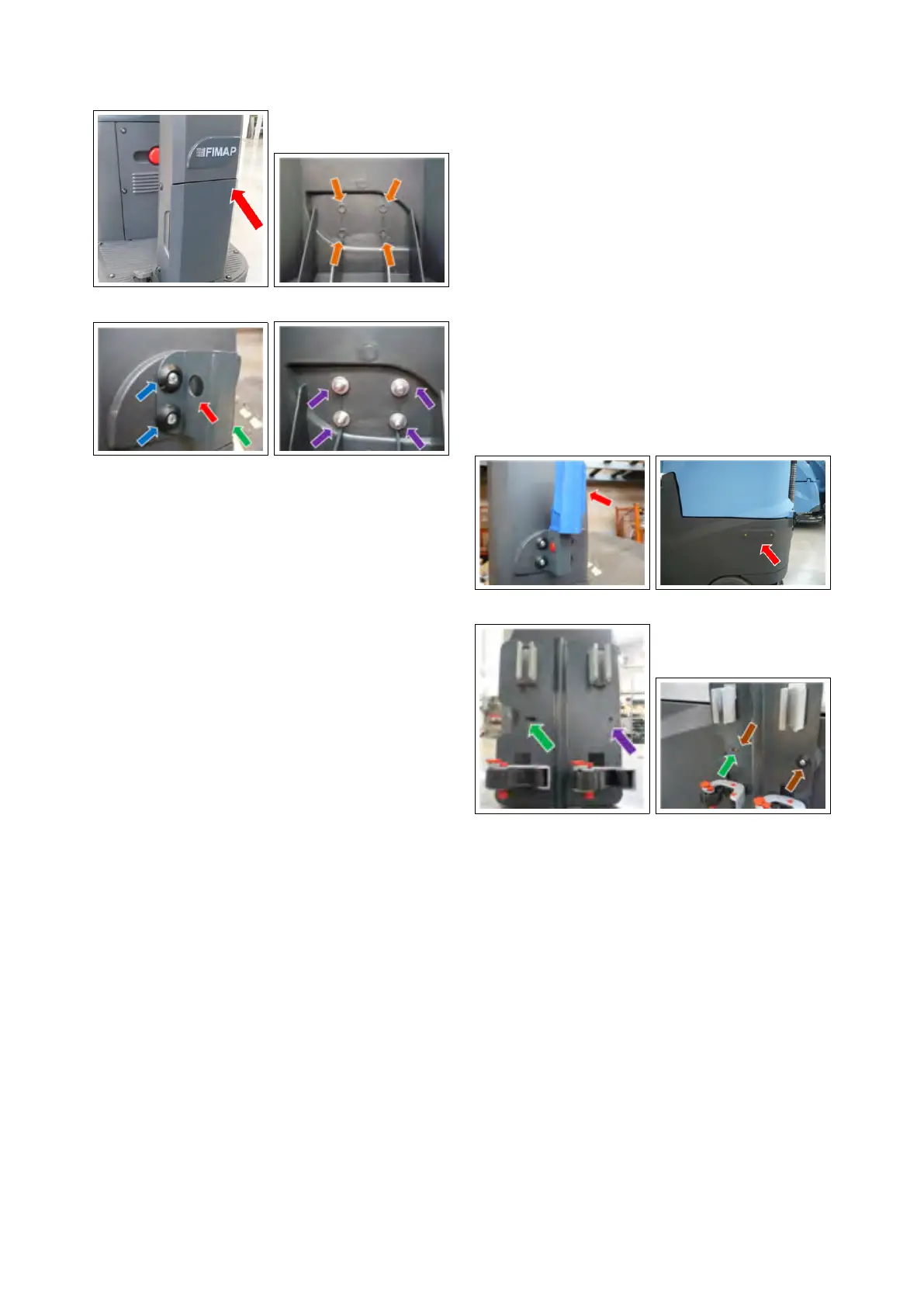

11.5.2-165 11.5.2-166
11.5.2-167 11.5.2-168
• The accessories group is grafted in
pressure.
• The side bracket must be inserted in
predisposition located below the re-
covery tank.
• The side bracket is provided with a
slot and a fixing hole.
• Install the bracket as shown in the
figure and secure the bracket with
the two M5 screws supplied with the
kit.
• Reconnect the battery cables and
proceed to a functional check of the
machine.
11.5.2-169 11.5.2-170
11.5.2-171 11.5.2-172
81
