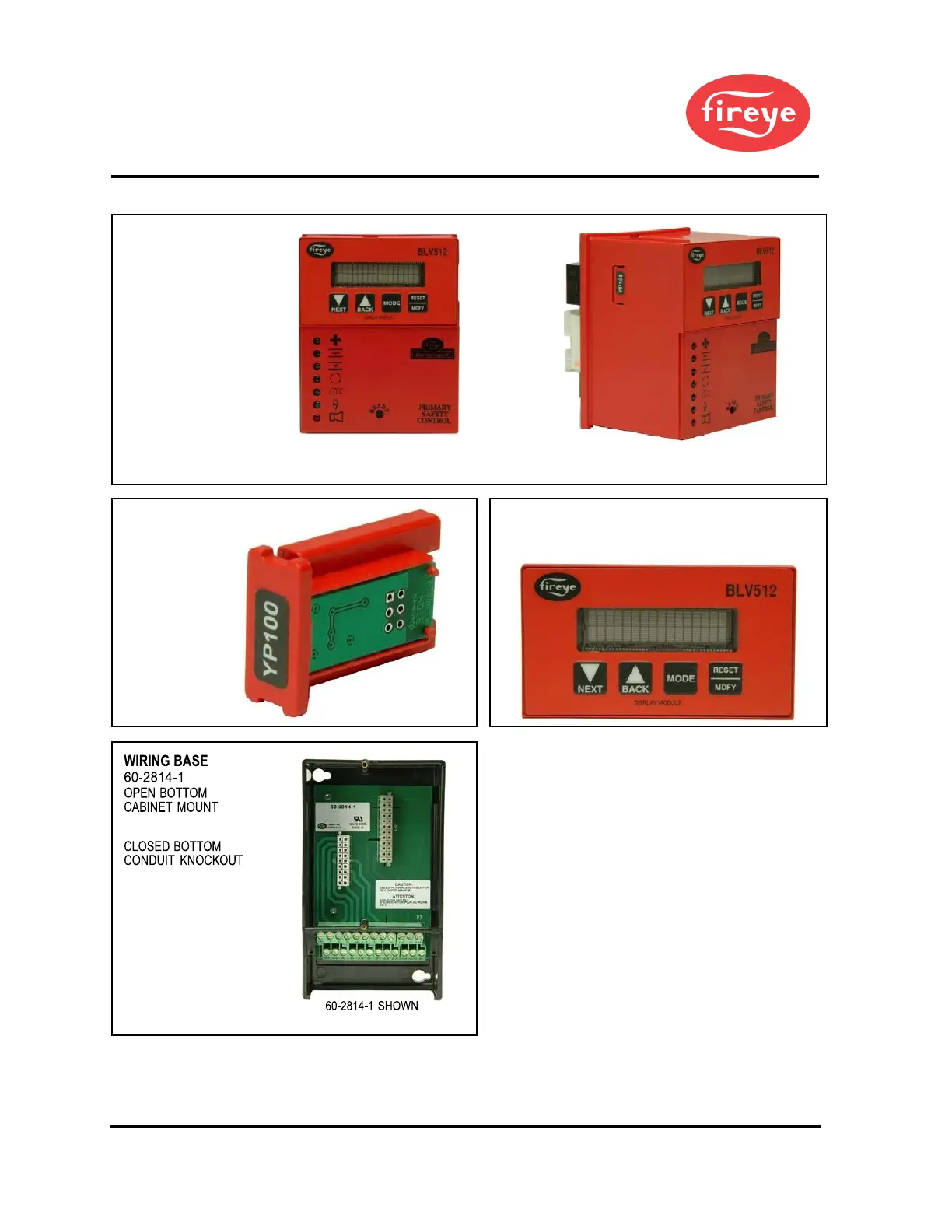

FRONT VIEW
(WITH OPTIONAL DISPLAY INSTALLED)
Figure 1. BURNERLOGIX ORDERING INFORMATION
60-2812-1
PROGRAMMER MODULE
YP100
YP102
YP200
YP202
YP300
YP302
YP113
YP138
YP118
YP148
YP184
DISPLAY MODULE
BLV512 - OLED
BLL510 - LIQUID CRYSTAL
NOTE: The Phoenix QDWR models with electrical quick-disconnect have replaced the original WR
models equipped with ten feet of captive cable. The QDWR models (with 59-546-X cables) are also
suitable for use in Class I Division 2 hazardous areas, thereby eliminating the need for the “EXWR” models.
CHASSIS/AMPLIFIER
120 VAC, 50/60 Hz
YB110UV
YB110UVSC
YB110IR
YB110FR
YB110DC
230 VAC, 50/60 Hz
YB230UV
YB230 UVSC
YB230IR
YB23FR
YB230DC
FRONT VIEW SIDE VIEW
(WITH OPTIONAL DISPLAY INSTALLED) (WITH OPTIONAL PROGRAMMER AND DISPLAY INSTALLED)
GEN II
GEN II
GEN II
GEN II
