SYSTEM INFO SUB-MENU
The sub-menu "SYSTEM INFO" allows the user to review information pertaining to the
operation of the control (e.g., average main flame signal strength, status of the high fire and
low fire end switches, etc.). This information can be very helpful when setting the damper
linkages on the firing rate motor. The user may also clear the internal burner history (burner
hours, cycles, and system hours), number of lockouts and stored lockout information.
Language choices of English, French, Spanish, Dutch German, and Swedish are available.
The MODE key is used to enter and exit the "SYSTEM INFO" sub-menu, and the NEXT and
BACK keys are used to advance through the sub-menu.

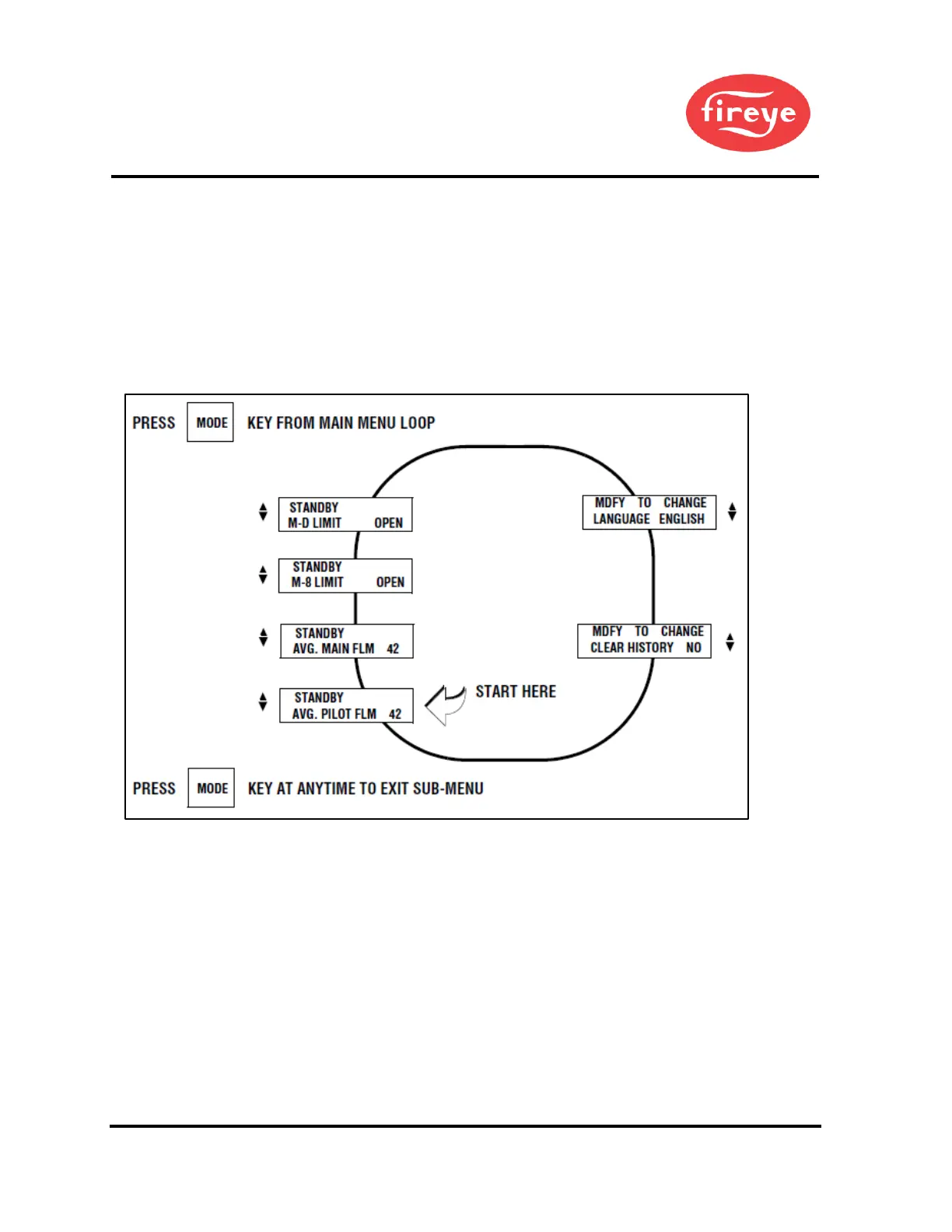

Figure 16. SYSTEM INFO SUB-MENU
SYSTEM OPERATION
The programmer module determines the functional operation of the Burnerlogix control
(e.g., purge timing, trial for ignition timings, recycle or non-recycle operation, etc.). As
illustrated, we are using the YP100 Programmer functions and messages associated with
the BLL510 display module in this bulletin. Because the messages change depending
upon which YP style programmer is being used, it is necessary to check the bulletin
covering the specific programmer for exact details. Refer to the suggestions shown in
this bulletin before proceeding to power the Fireye YB110 (YB230) BurnerLogix system.
Items such as scanner installation, short circuit tests and safety information must be
carefully reviewed.
