INSTALLATION - 85 SERIES PHOENIX SCANNER
Fireye Phoenix 85UVF self-checking scanners are used to detect 295 to 340 nanometers
wavelength ultraviolet emissions.
Fireye Phoenix 85IRF self-checking scanners are used to detect 830 to 1100 nanometers
wavelength infrared emissions.
Fireye Phoenix scanners are suited for application to duct burners, industrial gas/oil
burners, refinery applications, ignition systems and Low NOx detection and for
continuous or non-continuous burner operation.
NOTE: Because the sensors in the Phoenix are solid state devices they can perform well
with many different fuels. For example, UV is typically used on gaseous fuels but can also
be applied to oils and heavy oils. To be 100% sure of correct application a test should be
performed. Phoenix scanners ARE NOT recommended for use on small pilot flames or
obstructed sighting.
Operator interface to the Phoenix scanner is via a pushbutton keypad and informative
LEDs. These provide continuous indication of flame signal, flame relay status, scanner
status as well as selected mode of operation. Simplified keystroke routines are used for
setup, and this can be completed in seconds. For remote interface, outputs are provided
for flame switch, fault relay and 4 to 20mA flame strength.
The installer must assure the combined flame failure response (FFRT) time of the Phoenix
and BurneLogix is within the guidelines of the local codes. Refer to bulletin CU-114 for
detailed information.

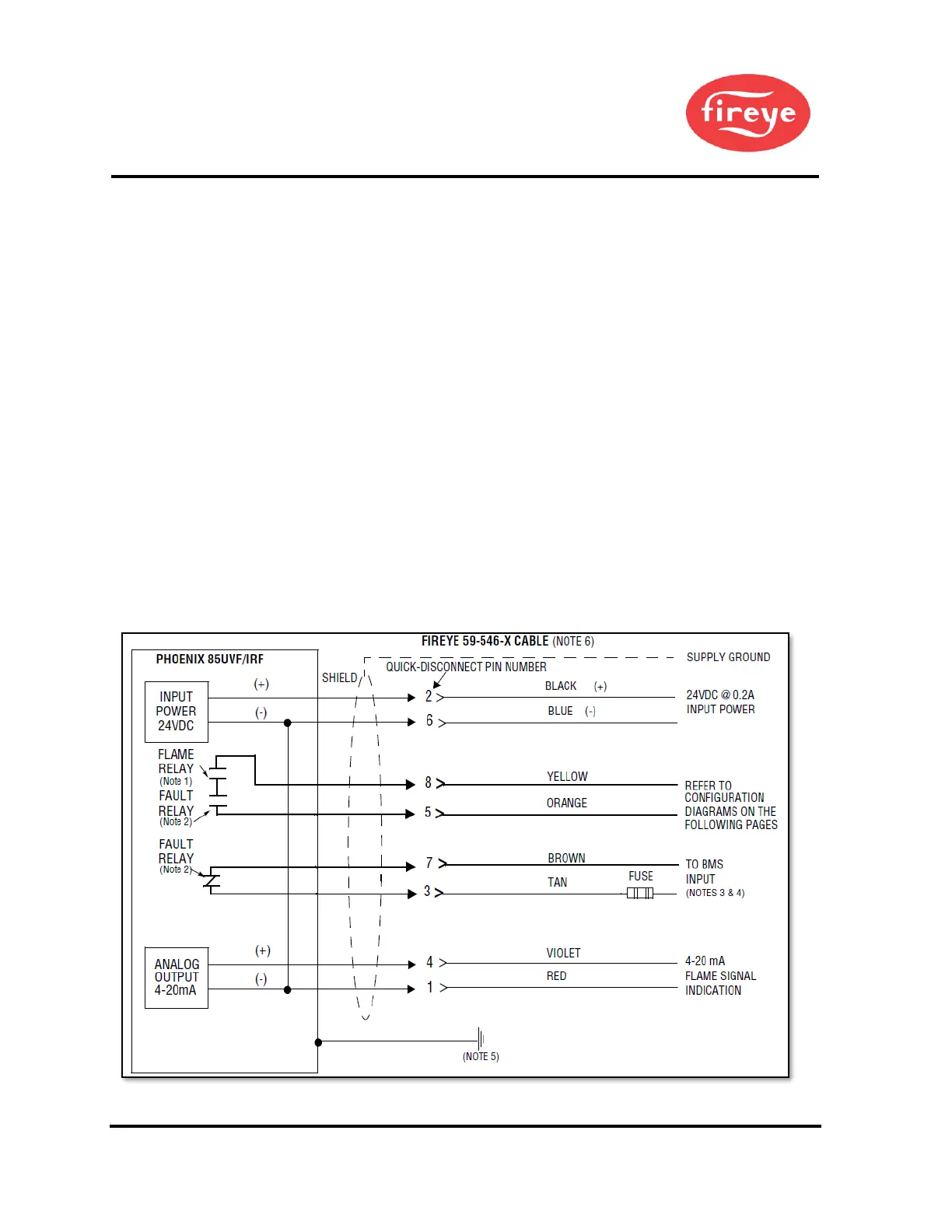

Figure 12. PHOENIX WIRING DIAGRAM
