Fireye BurnerLogiX YB110 User Manual

© 2023 Carrier 45

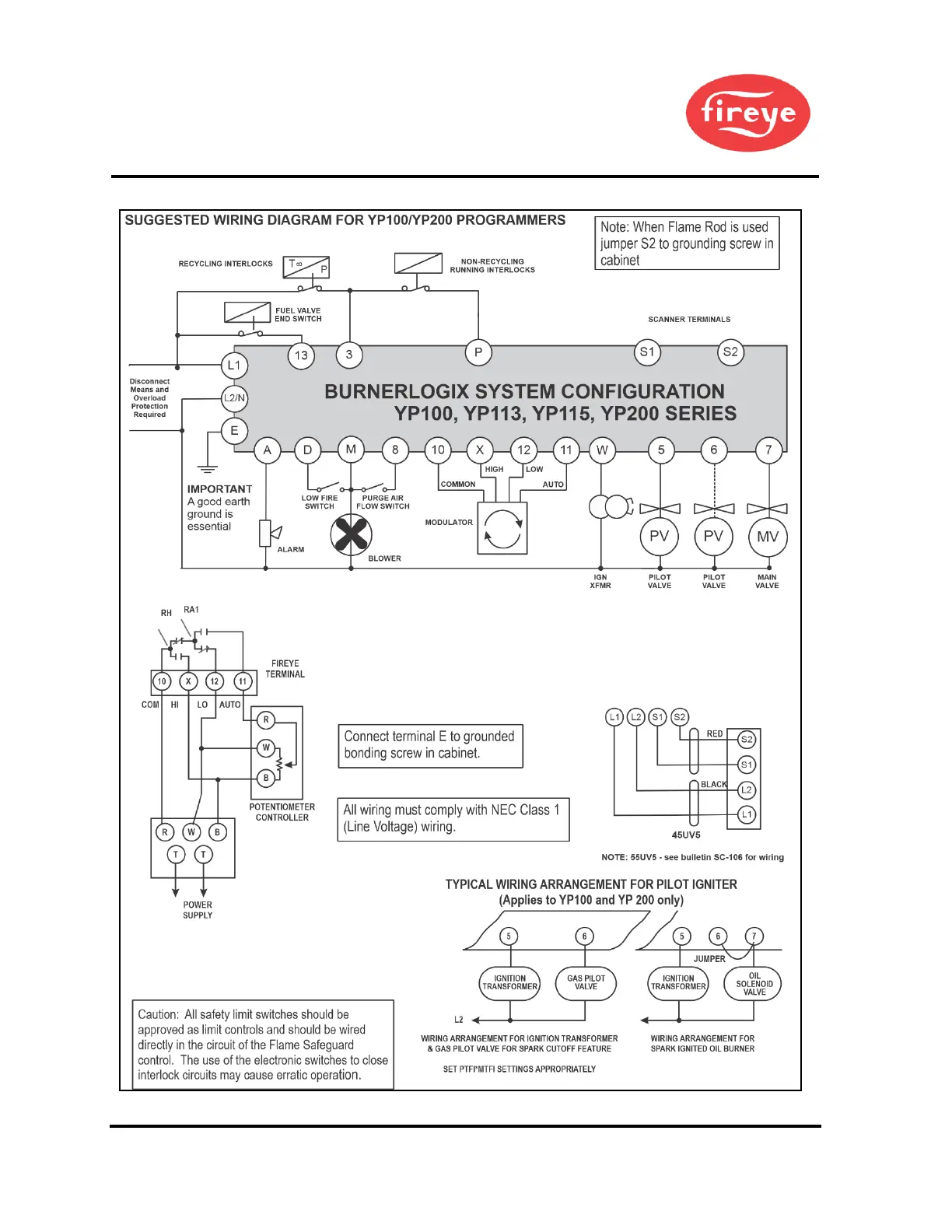

Figure 22. BURNERLOGIX WIRING DIAGRAM
1. Purge air switch from M to 8 not required for YP200.
2. YP200 programmers recycles on 3-P open and a minimum purge time of
30secs should be configured for these programmers to recycle.
3. Terminal 6 selectable interrupted/intermittent pilot.
4. Terminal W active first 5 seconds of PTFI (YP100 Series only).
5. See chart on table 2 for selectable timings (YP100, YP200 only)
