Fisher & Paykel DCS RGS Series User Manual

40

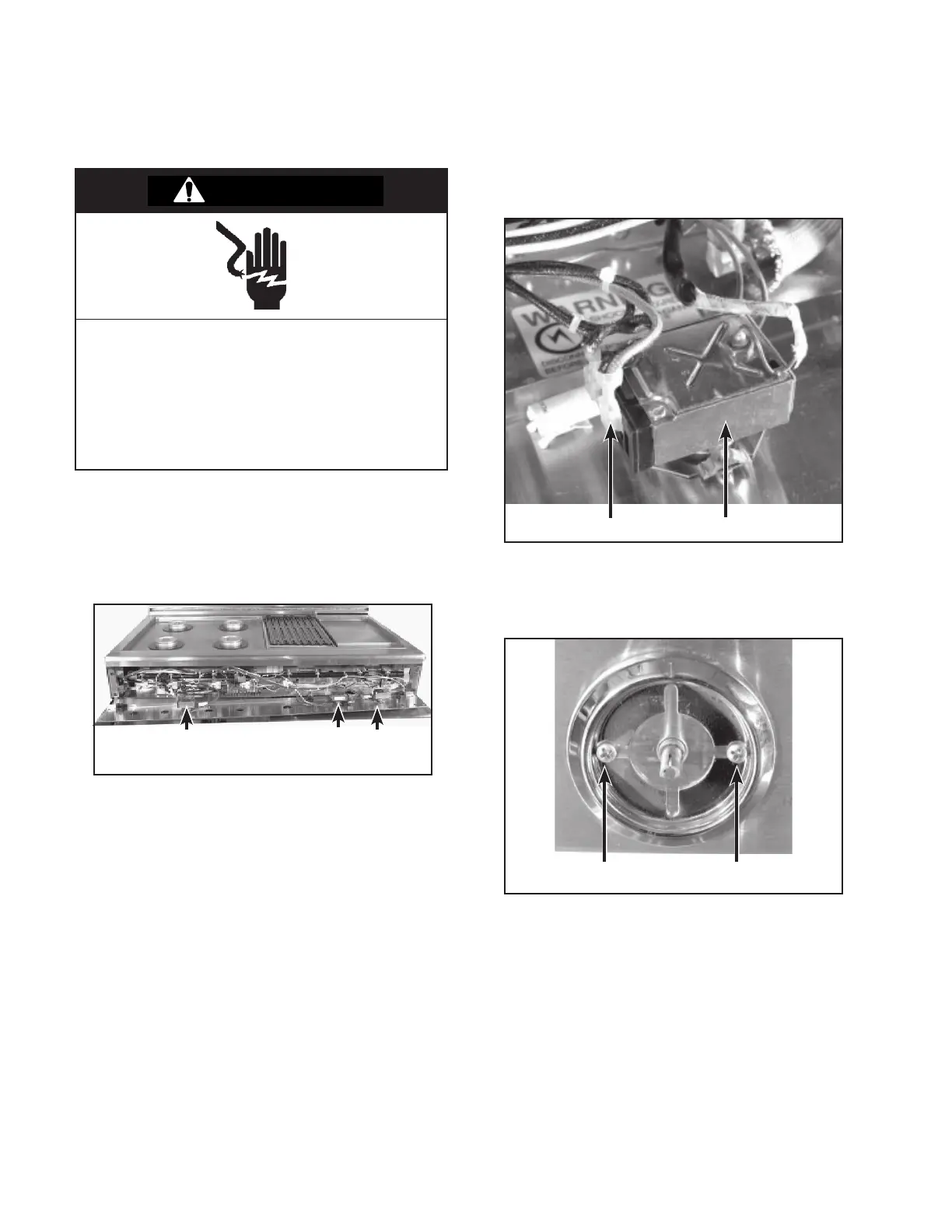

4. To remove the main oven thermostat:
a) Remove the two main oven thermostat bezel
screws, and remove the bezel and the main oven
thermostat from the valve panel.
1. Turn off the gas and disconnect power to the range.
2. Remove the valve panel (see page 56 for the proce-
dure).
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical
shock.
12ʺ Oven Main Oven Griddle
2 Blk Blu & Blk Griddle Thermostat
c) Remove the two griddle thermostat bezel
screws, and remove the bezel and the griddle
thermostat from the panel.
Griddle Thermostat Bezel Screws
Thermostats
3. To remove the griddle thermostat:
a) Remove the griddle from the range and remove
the thermostat bulb (see page 54 for the proce-
dure).
b) Disconnect the wires from the thermostat ter-
minals.
SERVICING THE COMPONENTS
REMOVING A THERMOSTAT
WARNING
