42

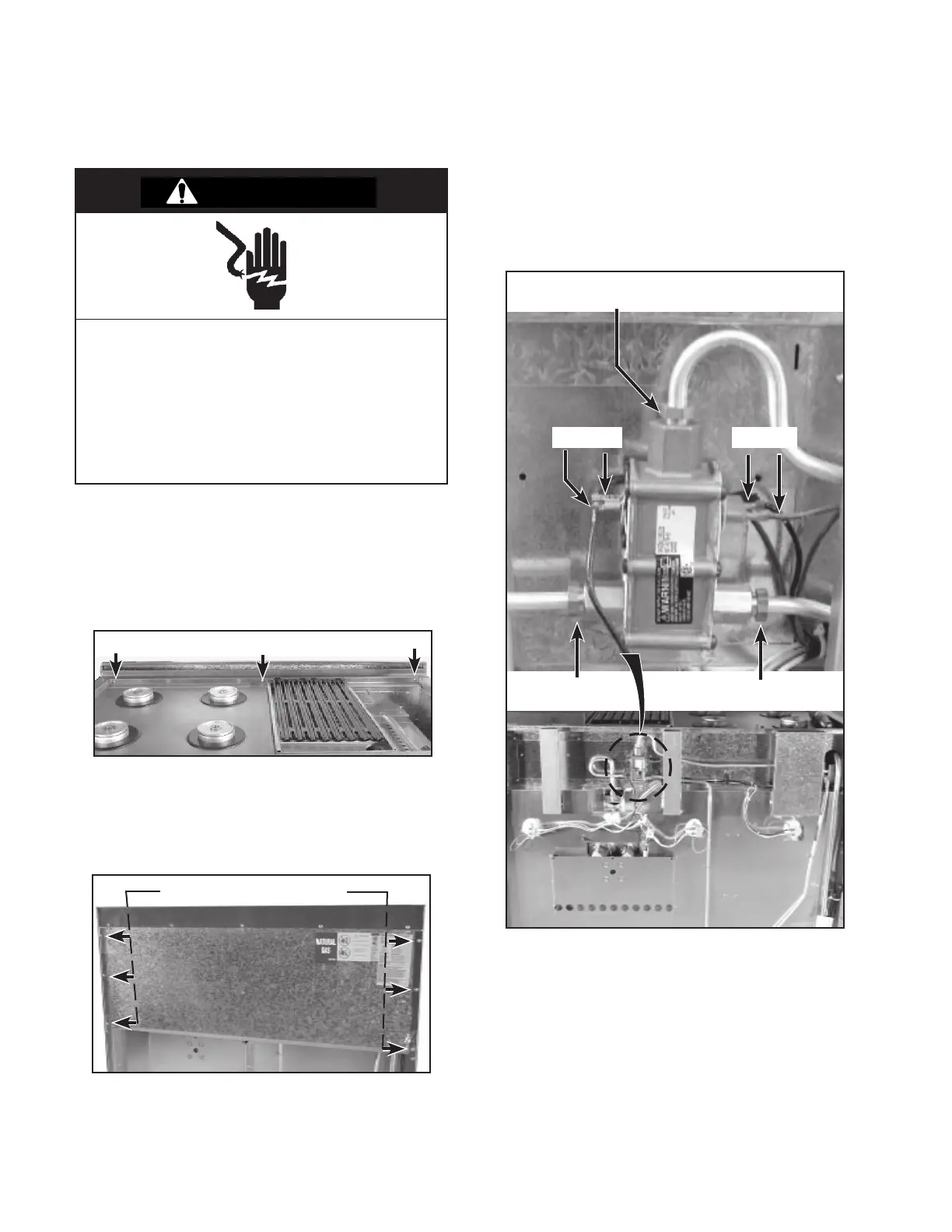

4. Remove the six screws from the island back trim, and
lift the island back trim and the island trim up and off
the range.
1. Turn off the gas and disconnect power to the range.
2. Pull the range away from the wall so you can access the
rear panel and gas line to the range.
3. Remove the three screws from the island trim.
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical
shock.
3 Island Trim Screws
6 Island Back Trim Screws
5. Remove the inlet and two outlet gas lines from the dual
thermal valve.
6. Disconnect the four wire connectors from the dual
thermal valve terminals.
Dual Thermal Valve Gas Inlet Line
Main Bake Gas Line
IR Gas Line
Blk BrnBlk Red
NOTE: The screw numbers may vary.
SERVICING THE COMPONENTS
REMOVING THE DUAL THERMAL VALVE (MAIN OVEN)
WARNING
To Next Page
