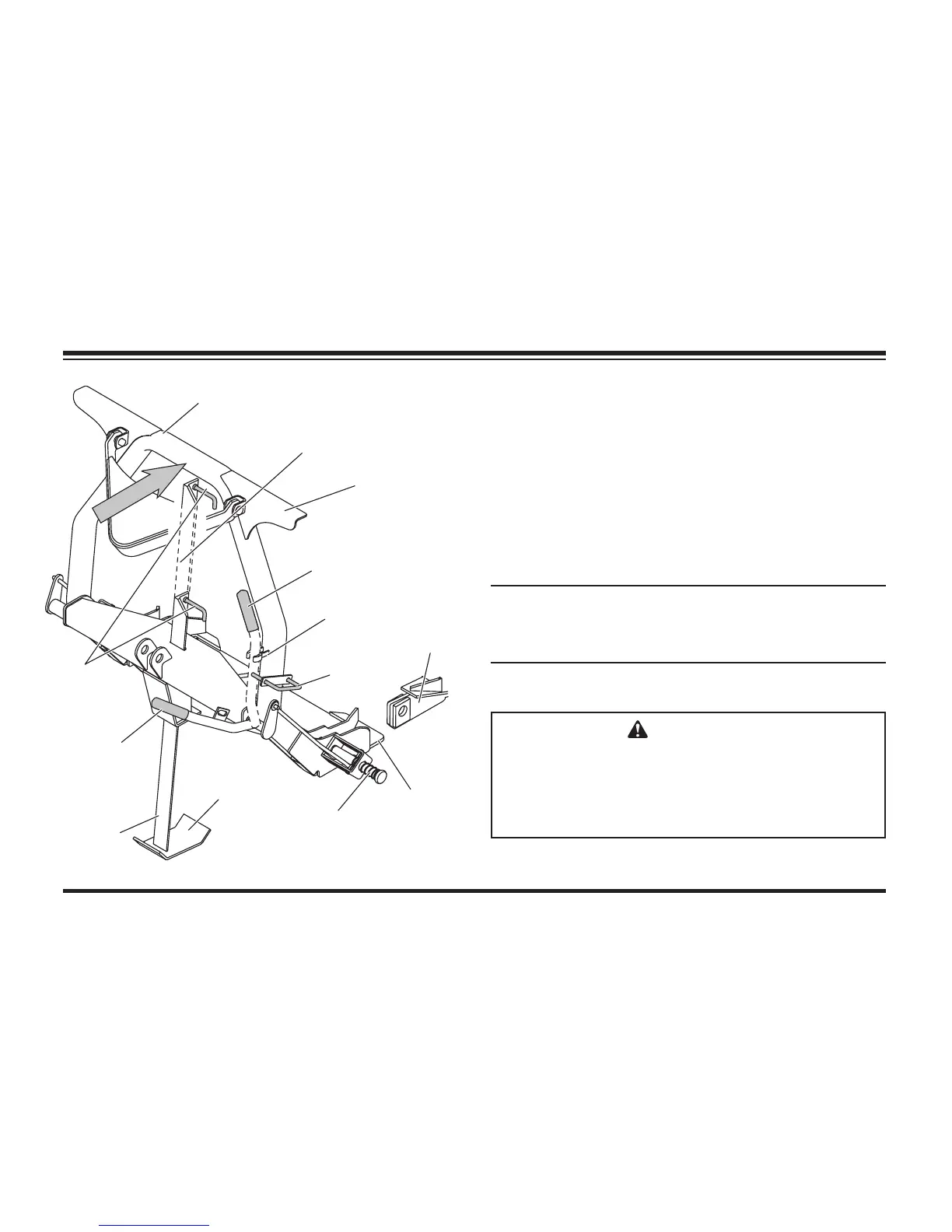

DETACHING SNOWPLOW FROM VEHICLE & STORAGE
P
U
SH
Attachment
Pin Release
Handle
(lowered)
Jack
Handle
Connecting
Pin
Pushplate
Jack
Stop
Pin Release
Handle (raised)
3. Stand in front of blade. While pushing headgear
toward vehicle with left hand, push pin release
handle down to disengage connecting pins.
Make sure connecting pins are fully retracted. If
unable to push headgear from in front of blade,
stand in front of headgear on the driver's side
and push headlamp bracket.
4. Detach all electrical connectors.
NOTE: After each use of the snowplow, reapply
dielectric grease to the electrical plugs to
maintain the protective coating on the terminals.
CAUTION
On 2-plug electrical systems, plug covers
shall be used whenever snowplow is
disconnected. Vehicle Battery Cable is 12V
unfused source.
