MAINTENANCE
11. For straight blades any angle will do, but
XtremeV™, XV2™, and XLS blades must
be in the fully retracted (vee) position. With
the lift ram fully retracted, ll the reservoir
with FISHER
®
EZ Flow hydraulic uid to
–40°F (–40°C), or other uid conforming to
Military Specication MIL-H-5606A, such as
Mobil Aero HFA or Shell AeroShell
®
Fluid 4.
Replace the ll plug.
NOTE: On XtremeV, XV2, and XLS blades, add
uid only when all rams are retracted.
CAUTION
Do not raise blade during ll process as
this may cause pump cavitation.
AeroShell
®
is a registered trademark (
®
) of Shell Oil Company.

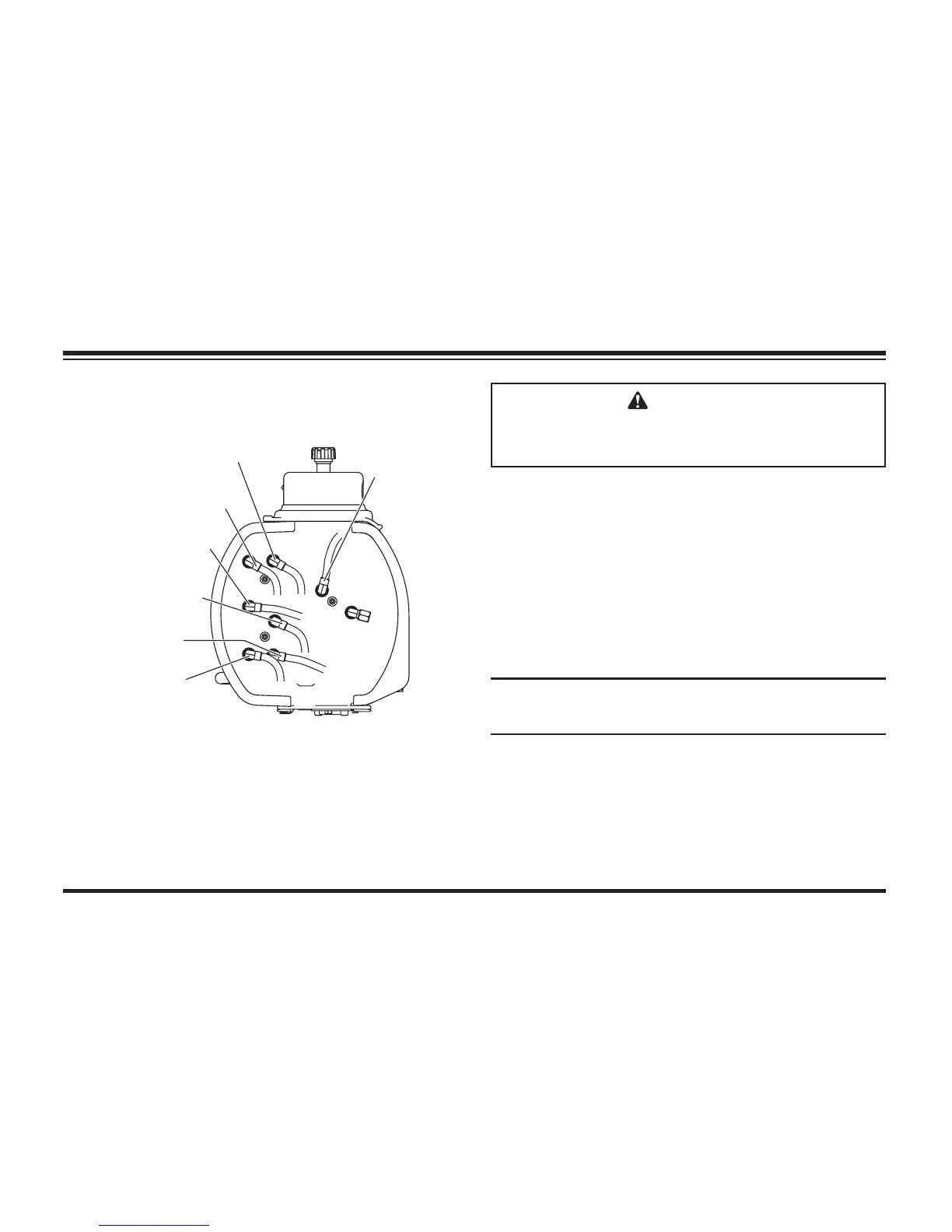

Hose Routing – XLS™ Blades
To PS Wing
Rod (inside)
To DS Angle Ram
To
PS Angle Ram
To DS Wing
Base (outside)
To DS Wing
Rod (inside)
To PS Wing
Base (outside)
To Lift Ra
m
