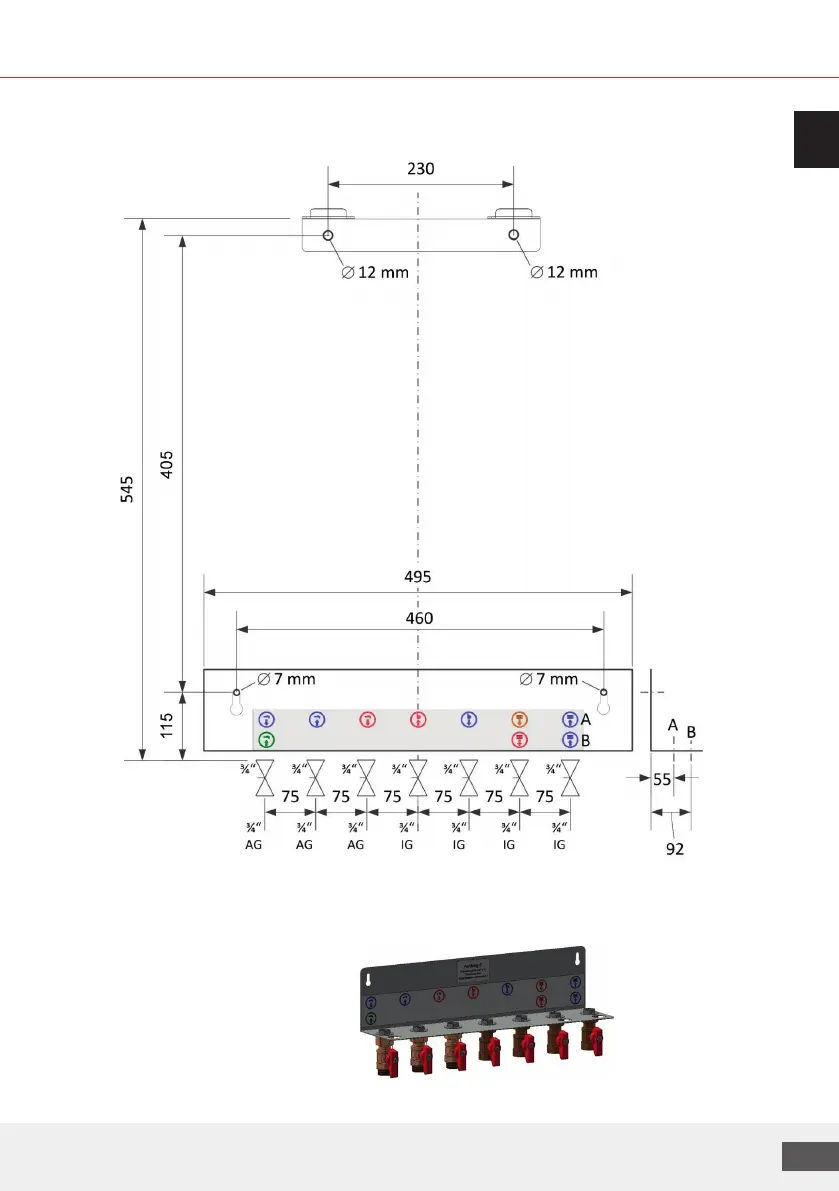

Drill hole dimensions for station installation (for insulated SM variant) and use of optional mounting
rail (M10203.762, see also chap. 4.10.5) with throughflow ball valves:
Note: The connections (drinking water, heating) are each labelled with the appropriate symbol.
Warning!
Use plastic plugs only to fix the
ball valves.
