6 Installation
6.1 Transmitter FLUXUS F501
2020-06-30, UMFLUXUS_F501V1-3EN
26
Installation on a pipe > 2''
The pipe mounting kit is fixed to the pipe by using tension straps, see Fig. 6.5.
• Insert the tension straps (3) into the holes of the pipe mounting plate (1) and the instrument mounting plate (2).
• Fix the pipe mounting plate and the instrument mounting plate to the pipe using the tension straps.
• Use the screws to fix the transmitter to the instrument mounting plate.
Caution!
The edge of the tension strap is very sharp.
Risk of injury!
→ Debur sharp edges.
→ Wear the required personal protective equipment. Observe the applicable rules.

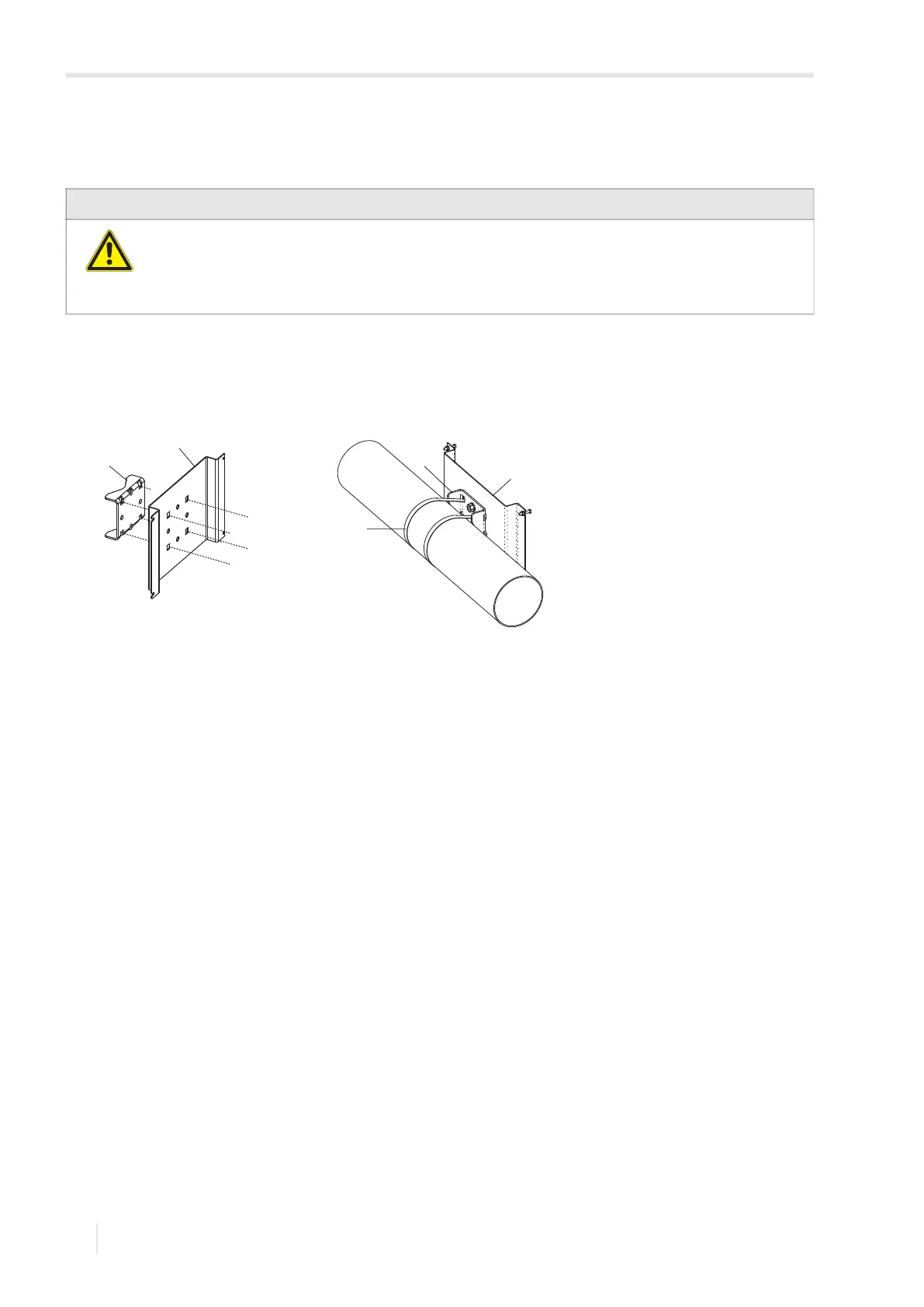

Fig. 6.5: Pipe installation with tension straps
1 – pipe mounting plate
2 – instrument mounting plate
3 – tension strap
1
1
2
2
3
