6.1.2.2 Pipe installation
Installation on a 2'' pipe
The pipe mounting kit is fixed to the pipe using a shackle, see Fig. 6.4.
• Fix the pipe mounting plate (2) and the instrument mounting plate (3) to the pipe using the nuts (4) and the shackle (1).
• Use the screws to fix the transmitter to the instrument mounting plate.

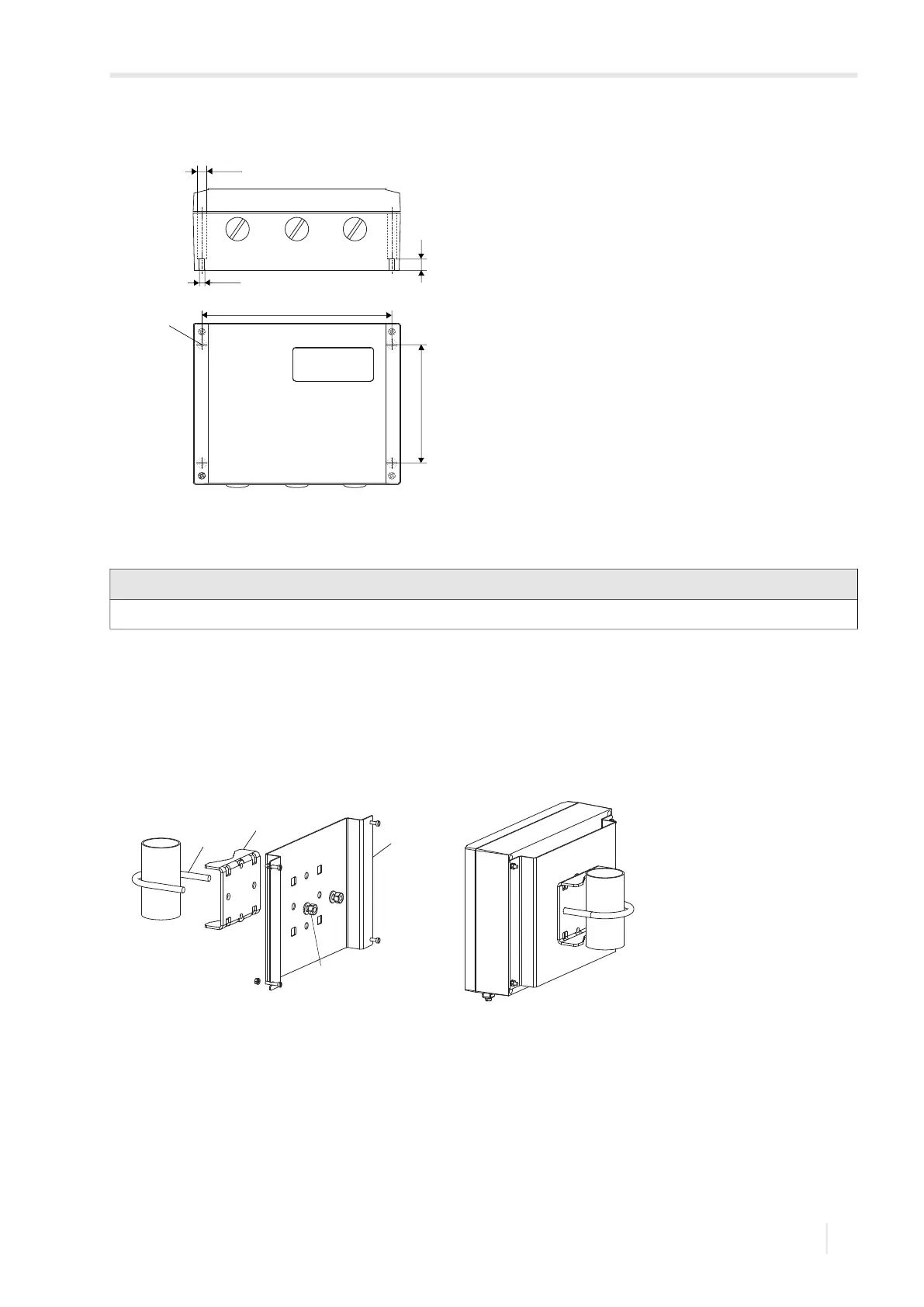

Fig. 6.3: Transmitter (dimensions in mm)
1 – fixing holes for wall mounting
Important!
The pipe has to be sufficiently stable to withstand the pressure exerted by the transmitter and the shackles.
Fig. 6.4: Pipe mounting kit
1 – shackle
2 – pipe mounting plate
3 – instrument mounting plate
4 – nut
1
Ø 8.4
10
Ø 4.5
165
103
3
1
2
4
