6 Installation
FLUXUS F501 6.2 Transducers
47
UMFLUXUS_F501V1-3EN, 2020-06-30
Remove the cover from the mounted transducer mounting fixture Variofix C as follows:
• Use a lever tool to remove the cover.
• Insert the lever tool in one of the 4 openings of the cover, see Fig. 6.47.
• Press the lever tool against the fixture.
• Bend the cover outwards and release it from the anchoring.
• Repeat the steps for the other 3 openings.
• Remove the cover from the rail.

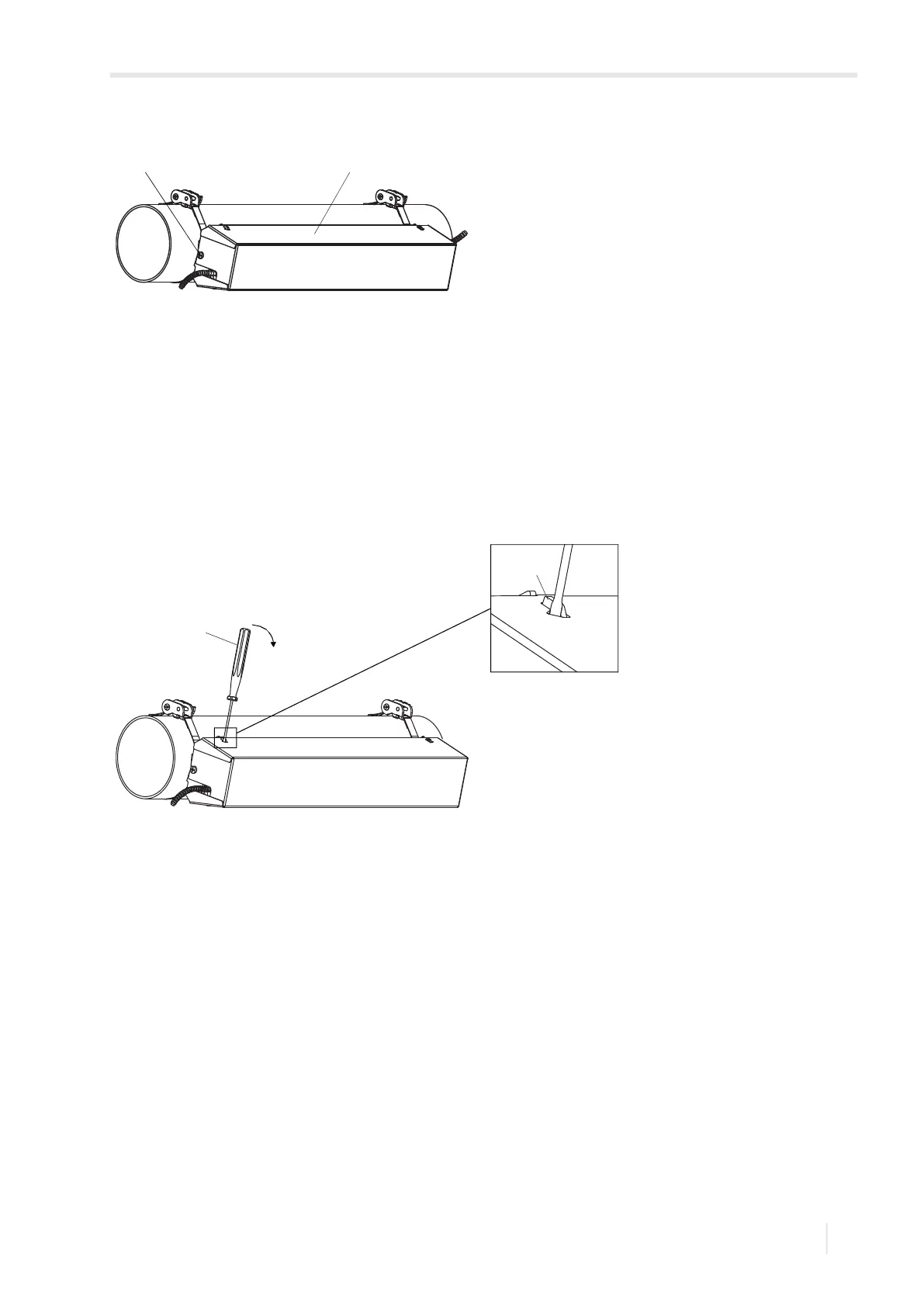

Fig. 6.46: Variofix C with transducers on the pipe
1 – screw
2 – cover
Fig. 6.47: Removal of the cover
1 – lever tool
2 – fixture
1 2
2
1
