3 General principles
FLUXUS G809 3.1 Measurement principle
13
UMFLUXUS_G809V2-2EN, 2020-06-25

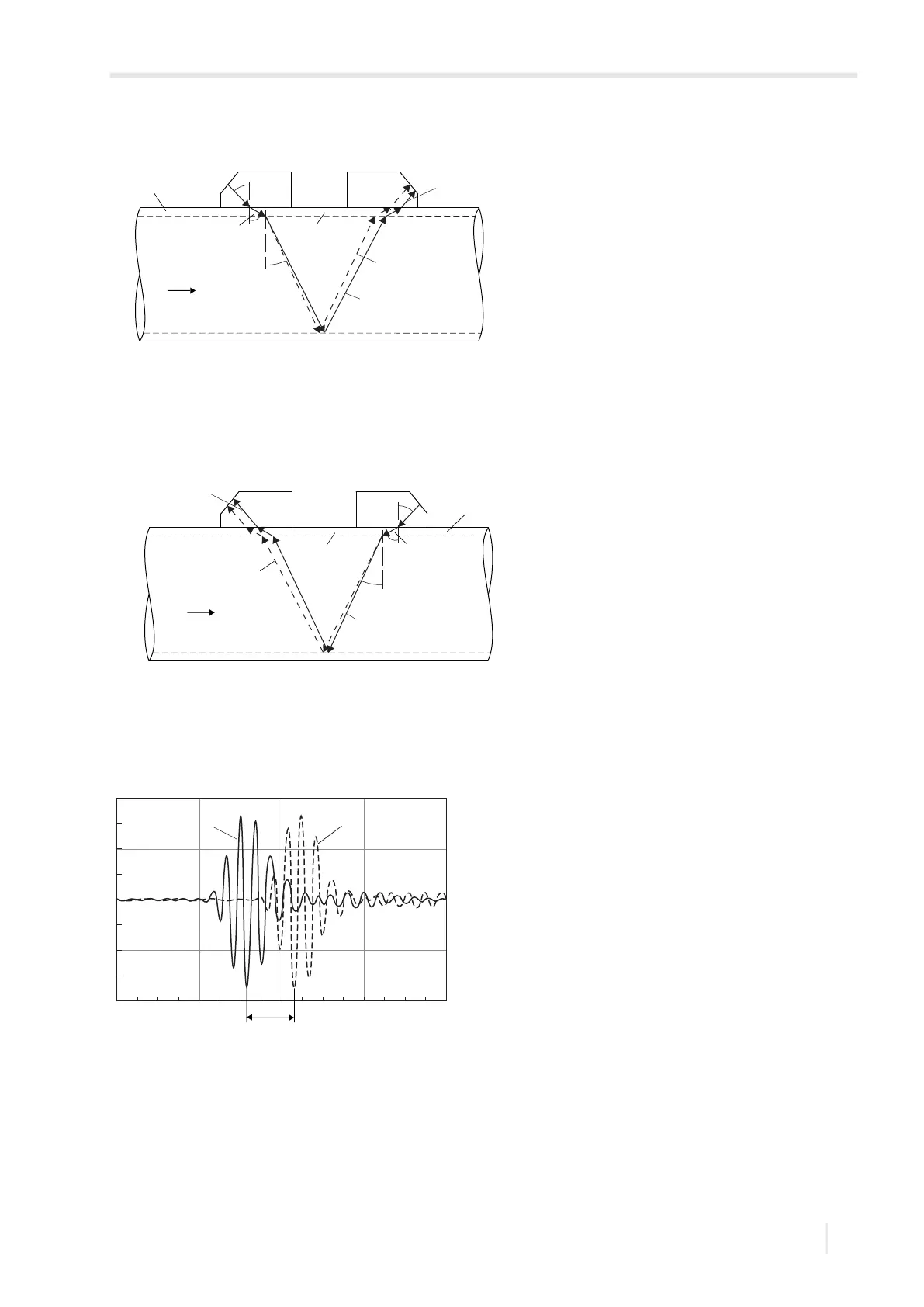

Fig. 3.1: Sound path of the signal in the flow direction
c – sound speed
1 – transducer (emitter)
2 – transducer (receiver)
3 – pipe wall
Fig. 3.2: Sound path of the signal against the flow direction
c – sound speed
1 – transducer (emitter)
2 – transducer (receiver)
3 – pipe wall
Fig. 3.3: Transit time difference Δt
1 – signal in the flow direction
2 – signal against the flow direction
c
β
β
α
γ
c
γ
3
21
c
α
c
α
reduction of the
sound path
flow direction of
the fluid
sound path with flow
sound path
without flow
c
β
flow direction of
the fluid
sound path with flow
sound path with-
out flow
β
α
γ
c
γ
increase of the
sound path
3
12
c
α
c
α
1 2
Δt
