3 General principles
FLUXUS G809 3.4 Undisturbed flow profile
17
UMFLUXUS_G809V2-2EN, 2020-06-25
disturbance source: 2 × 90° elbows on different planes
inlet: l ≥ 40 D outlet: l ≥ 5 D
disturbance source: valve
inlet: l ≥ 40 D outlet: l ≥ 5 D
disturbance source: reducer
inlet: l ≥ 10 D outlet: l ≥ 5 D
disturbance source: compressor
inlet: l ≥ 20 D

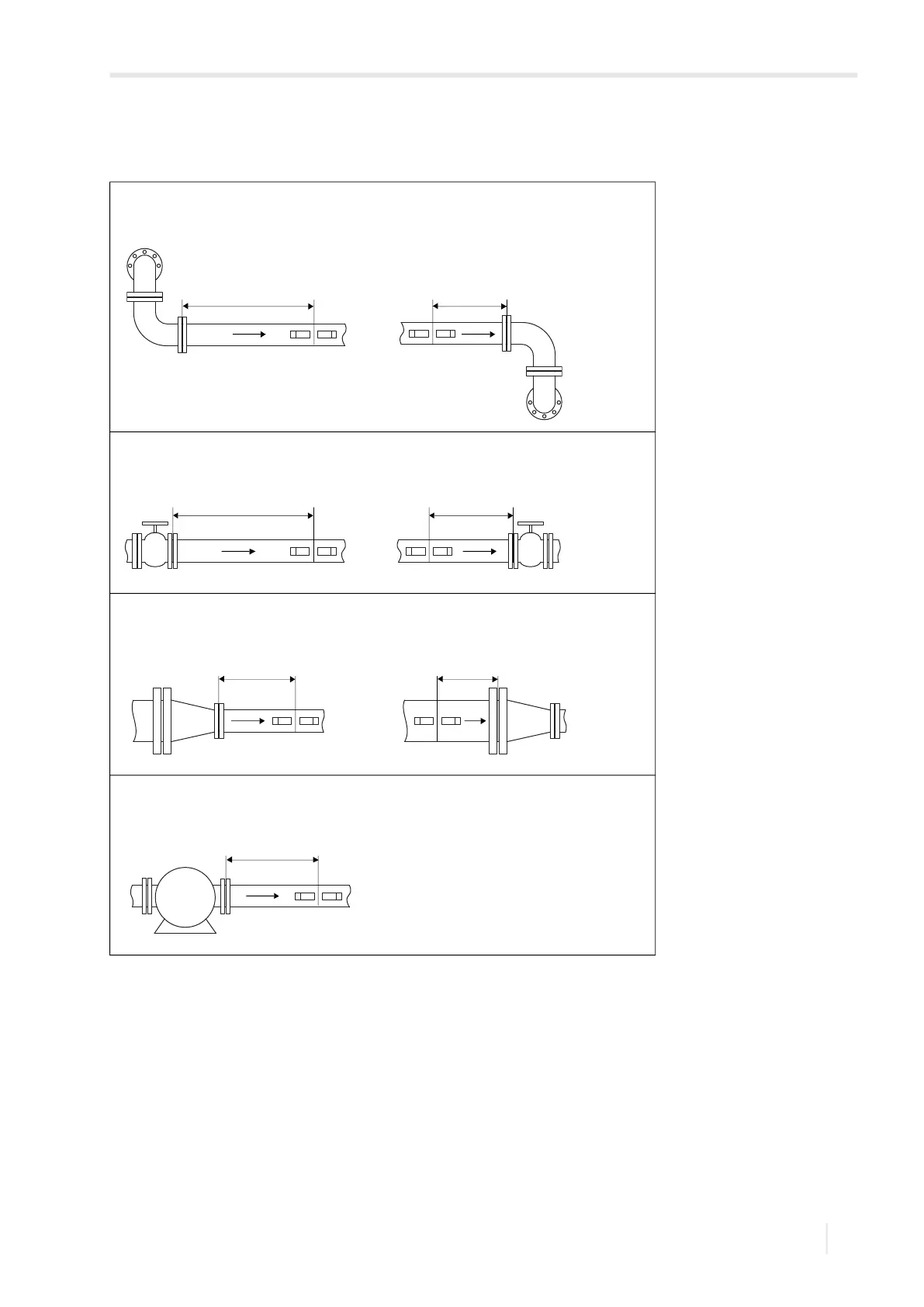

Tab. 3.1: Recommended distance from disturbance sources
D – nominal pipe diameter at the measuring point
l – recommended distance between disturbance source and transducer position
l l
l l
l l
l
