6 Installation
6.2 Transducers FLUXUS G809
2020-06-25, UMFLUXUS_G809V2-2EN
30

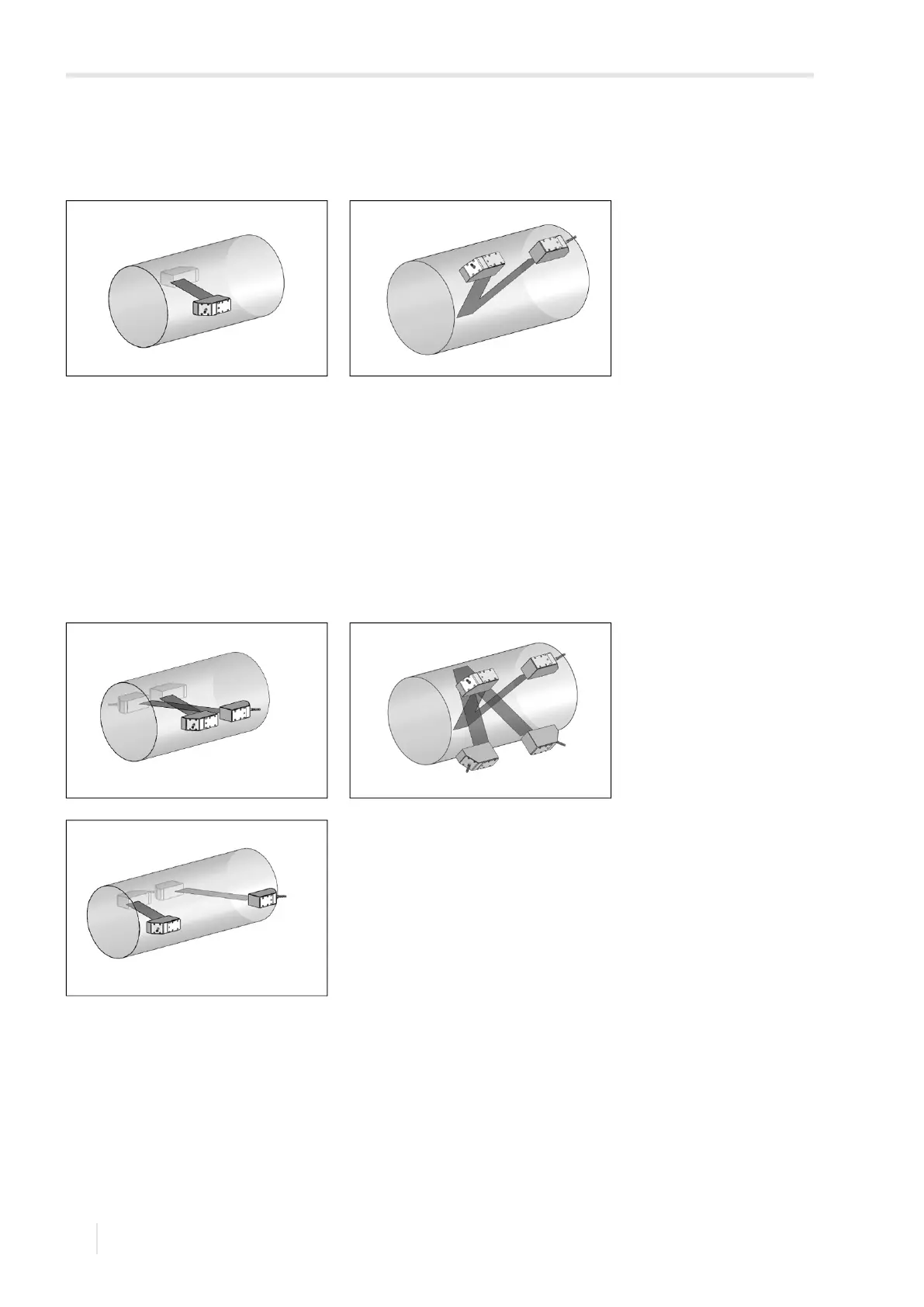

6.2.1.3 Selection of the measurement arrangement
Diagonal arrangement with 1 beam Reflection arrangement with 1 beam
• wider flow velocity and sound speed
range compared to the reflection ar-
rangement
• use in the presence of deposits on the in-
ner pipe wall or with strongly attenuating
gases or liquids (only 1 sound path)
• smaller flow velocity and sound speed
range compared to the diagonal arrange-
ment
• transverse flow effects are compensated
because the beam crosses the pipe in 2
directions
• higher accuracy of measurement be-
cause the accuracy increases with the
number of sound paths
Diagonal arrangement with 2 beams Reflection arrangement with 2 beams
and 2 planes
• same characteristics as reflection
arrangement with 1 beams
• additional characteristic:
influences of the flow profile are compen-
sated because the measurement takes
place in 2 planes
• same characteristics as diagonal ar-
rangement with 1 beam
• additional characteristic:
transverse flow effects are compensated
because the measurement is conducted
with 2 beams
X arrangement
displaced X arrangement
