6 Installation
6.2 Transducers FLUXUS G809
2020-06-25, UMFLUXUS_G809V2-2EN
34
Outer pipe diameter < 900 mm
For the calculation of the mounting length of the transducer or pipe damping mats, see Tab. 6.1.

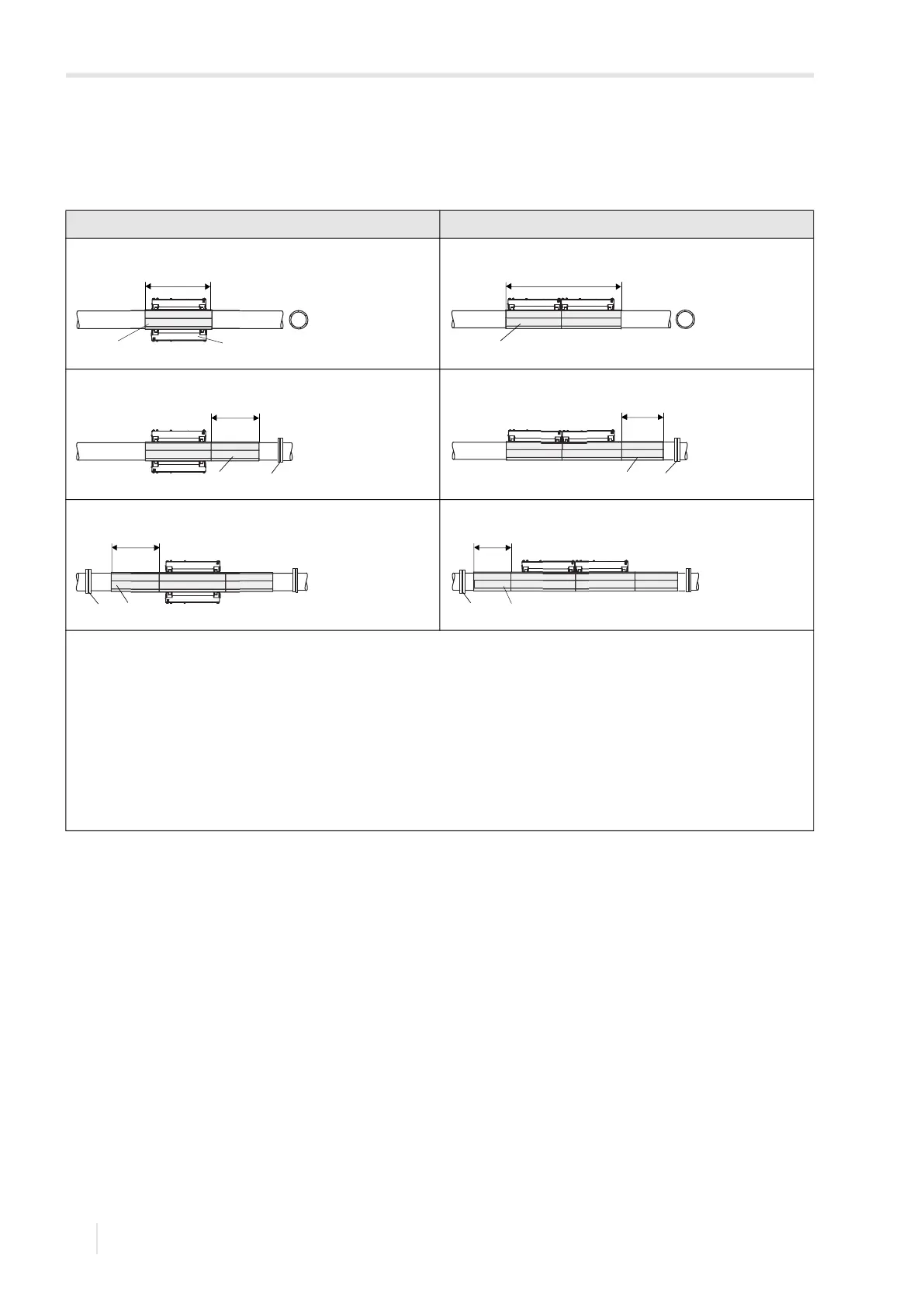

Tab. 6.1: Mounting length of the transducer and pipe damping mats
diagonal arrangement reflection arrangement
no reflection point no reflection point
1 reflection point 1 reflection point
2 reflection points 2 reflection points
1 – transducer mounting fixture
2 – transducer damping mats
3 – pipe damping mats
4 – reflection point
l
S1
– mounting length of the transducer damping mats (diagonal arrangement)
l
S2
– mounting length of the transducer damping mats (reflection arrangement)
l
R
– mounting length of the pipe damping mats
l
S1
= length of the transducer mounting fixture + 2 × 20 mm
l
S2
= 2 × length of the transducer mounting fixture + 2 × 20 mm
l
R
= length of transducer mounting fixture + 2 × 20 mm
1
2
l
S1
2
l
S2
4
3
l
R
3
l
R
4
4 3
l
R
3
l
R
4
