6 Installation
6.2 Transducers FLUXUS G809
2020-06-25, UMFLUXUS_G809V2-2EN
58
• Insert approx. 100 mm of the tension strap into part 1 and part 2 of the clasp, see Fig. 6.57 a.
• Bend the tension strap.
• Insert the tension strap into part 1 of the ratchet clasp, see Fig. 6.57 b.
• Tighten the tension strap.
• Insert the tension strap into the slots of one rail (arrangements b, c, d) or both rails (arrangement a), see Fig. 6.59.
• Place the rail (arrangement b, c, d) or both rails (arrangement a) on the pipe and place the tension strap around the pipe.
• Insert the loosen end of the tension strap into the second slot of the tension strap screw, see Fig. 6.58.
• Tighten the tension strap.
• Cut off the protruding tension strap, see Fig. 6.57.
• Tighten the screw of the ratchet clasp.
• Repeat the steps for the second tension strap.
• Repeat the steps for the second rail, if necessary.
Caution!
The edge of the tension strap is very sharp.
Risk of injury!
→ Debur sharp edges.
→ Wear the required personal protective equipment. Observe the applicable rules.

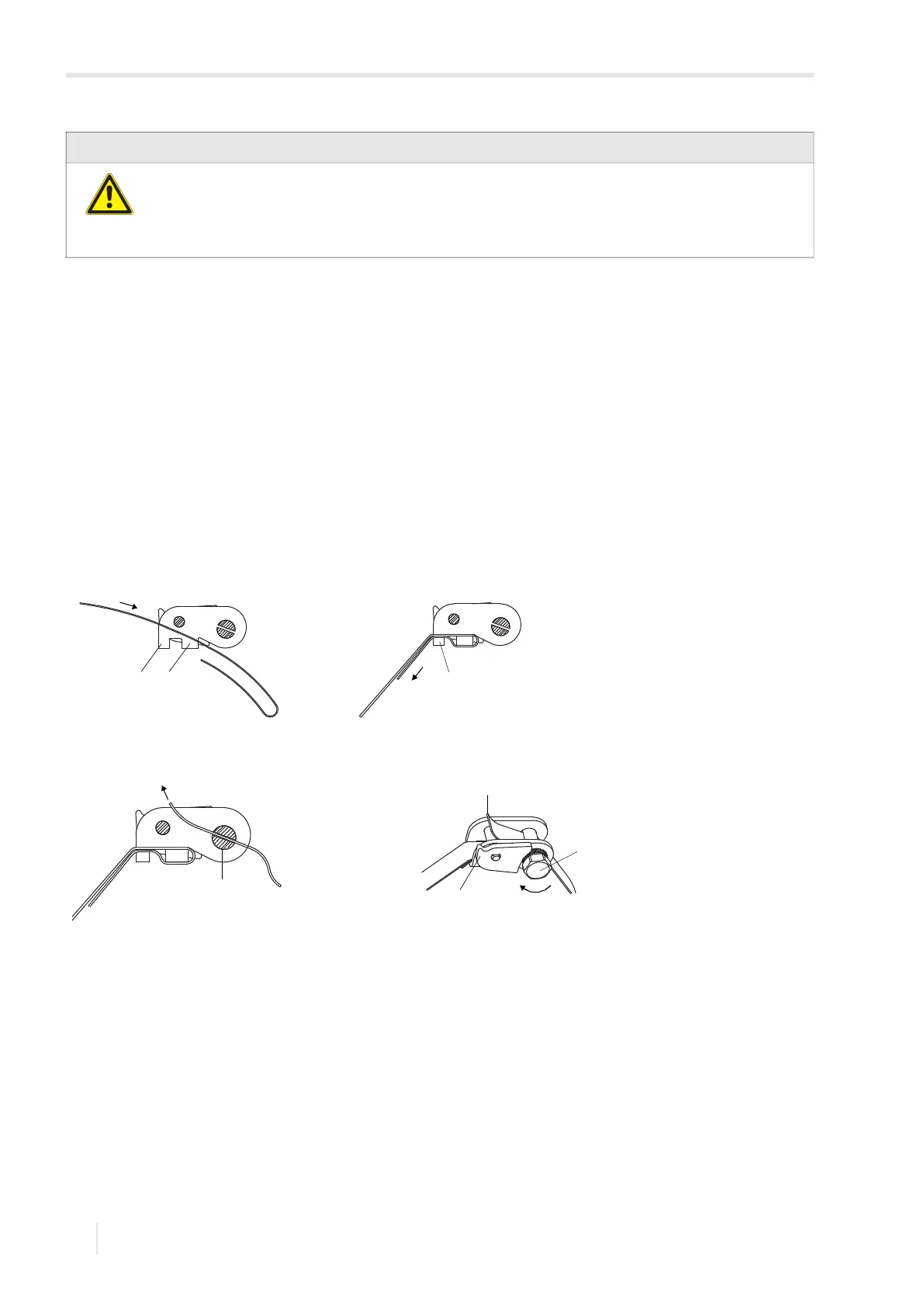

Fig. 6.57: Ratchet clasp with tension strap
Fig. 6.58: Ratchet clasp with tension strap
1 – sense of rotation
2 – edge
3 – lever
4 – clasp screw with slot
a b
1 2
1
1
2
4
3
4
