7 Connection
FLUXUS G809 7.1 Transducers
67
UMFLUXUS_G809V2-2EN, 2020-06-25
7.1.3.2 Transducer cable with stainless steel conduit and stripped cable ends
• Remove the blind plug for the connection of the transducer cable, see Fig. 7.7.
• Insert the transducer cable into the junction box.
• Fix the transducer cable by tightening the cable gland.
• Connect the transducer cable to the terminals of the junction box, see Fig. 7.7 and Tab. 7.5.

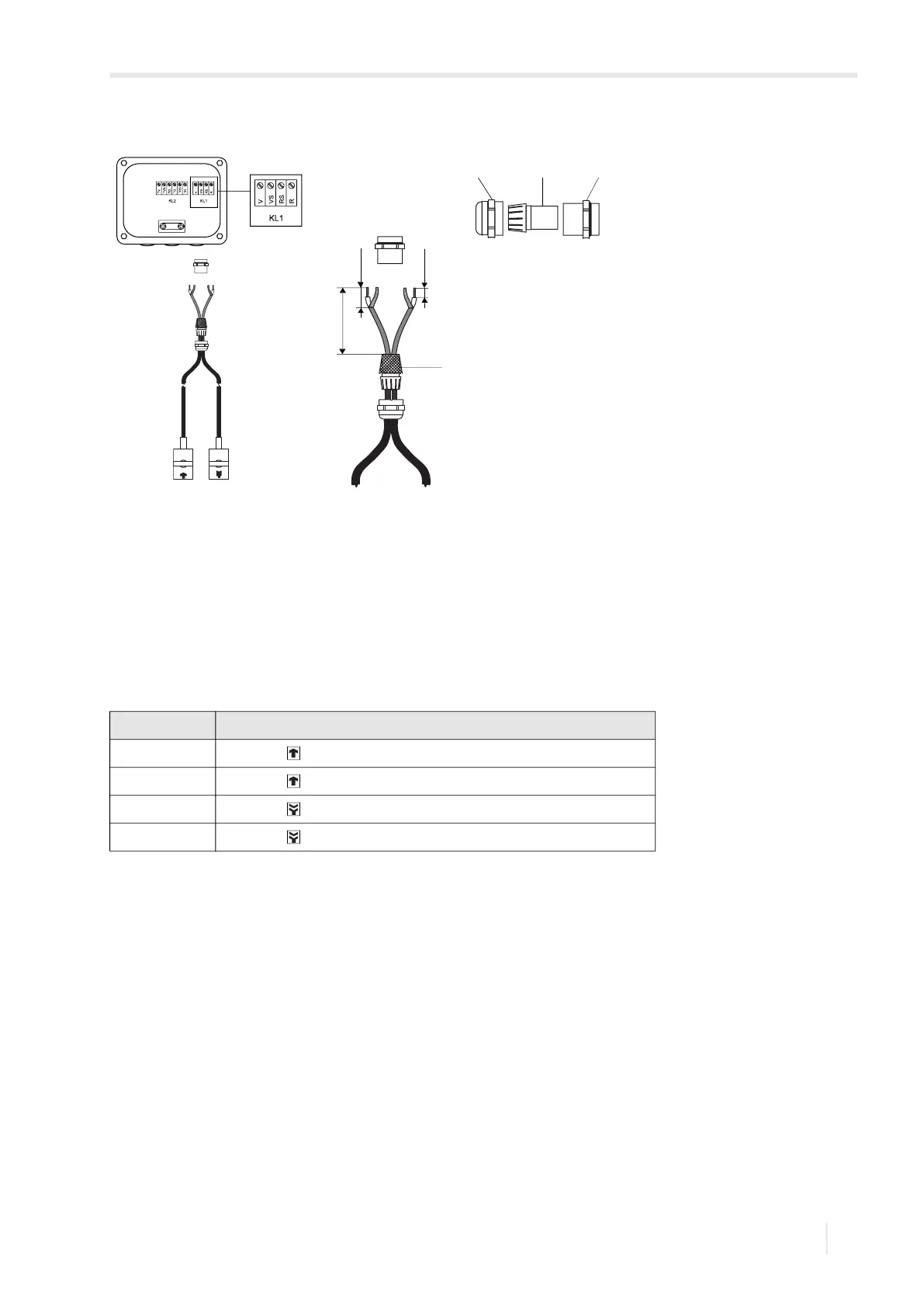

Fig. 7.6: Connection of the transducer cable with plastic cable jacket and stripped cable ends
1 – cap nut
2 – compression part
3 – basic part
4 – external shield brushed back
Tab. 7.5: Terminal assignment
terminal connection
V transducer (brown cable, marked white)
VS transducer (red cable)
RS transducer (red cable)
R transducer (brown cable)
100 mm
20 mm
10 mm
4
cable gland
1 2 3
