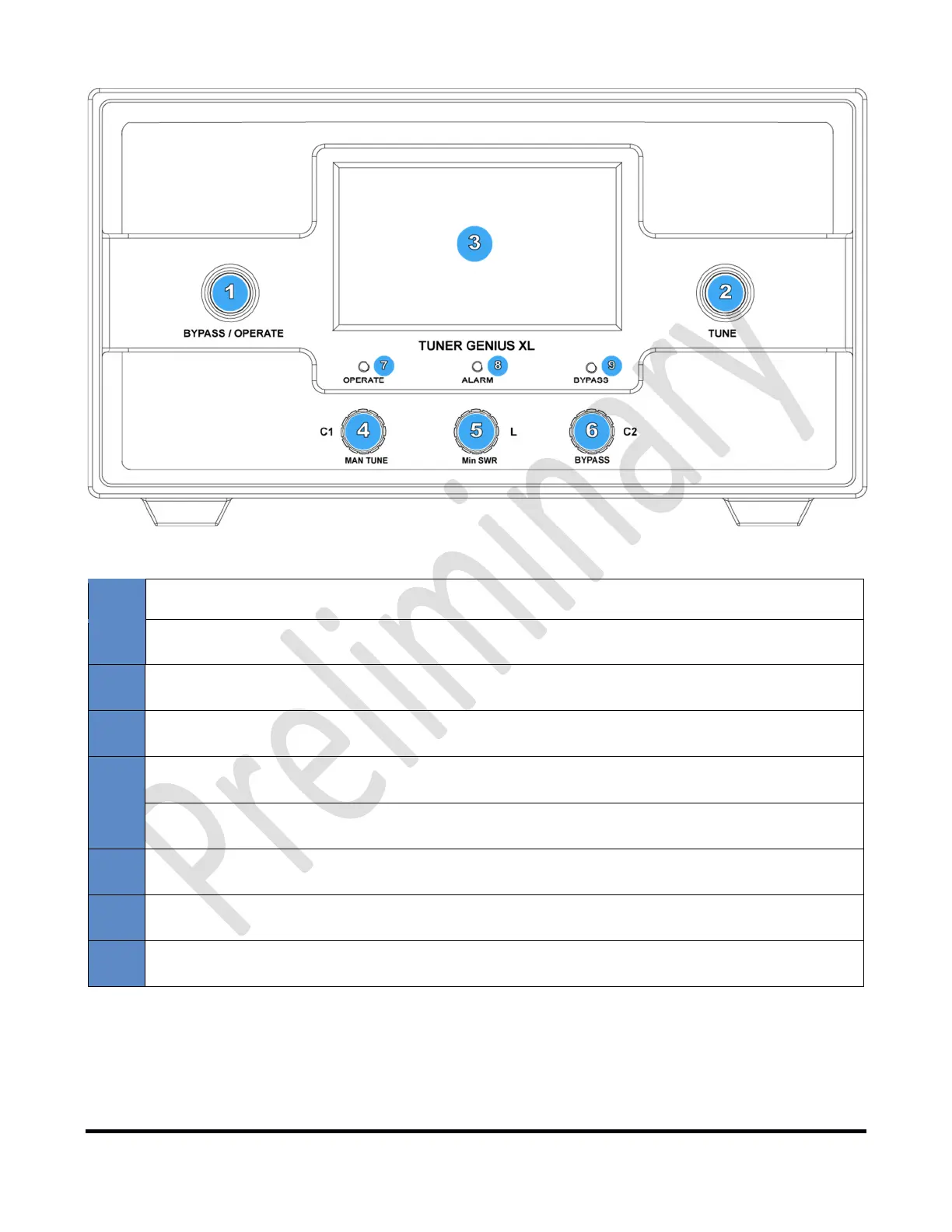

Figure 5-2 Tuner Genius Front Panel Drawing
1
Bypass/Operatebutton
2
TuneButton
3
4.5”(110mm)ColorLCDTouchscreenDisplay
4
ManualTune/C1 Adjust
5
MinimumSWR/LAdjust
6
Bypass/C2Adjust
7
OperateLED
8
AlarmLED
9
BypassLED
