ExciterBandDataInterfaces: Ethernet(includesPTT)forFlexRadioSystemstransceivers
CATviaRS‐232
CI‐V
BCD
Pin‐to‐Band(PTB)
LegacyExciterInterface Built‐infrequencycounter
PTT(InandOut) Opendrain(XXVandXXXmamaximum)
Alarms Frequencyoutofrange
WrongBand
HighPower
SWR>10:1
Warnings Lowdrive
PTTUnk ey
Messages ManualTuning
TuningSaved
MemoryCleared
ConfigReset
5.1 Front Panel
Designedtobeeasytouseandintuitive,thefrontpanelconsistsofnineelements:


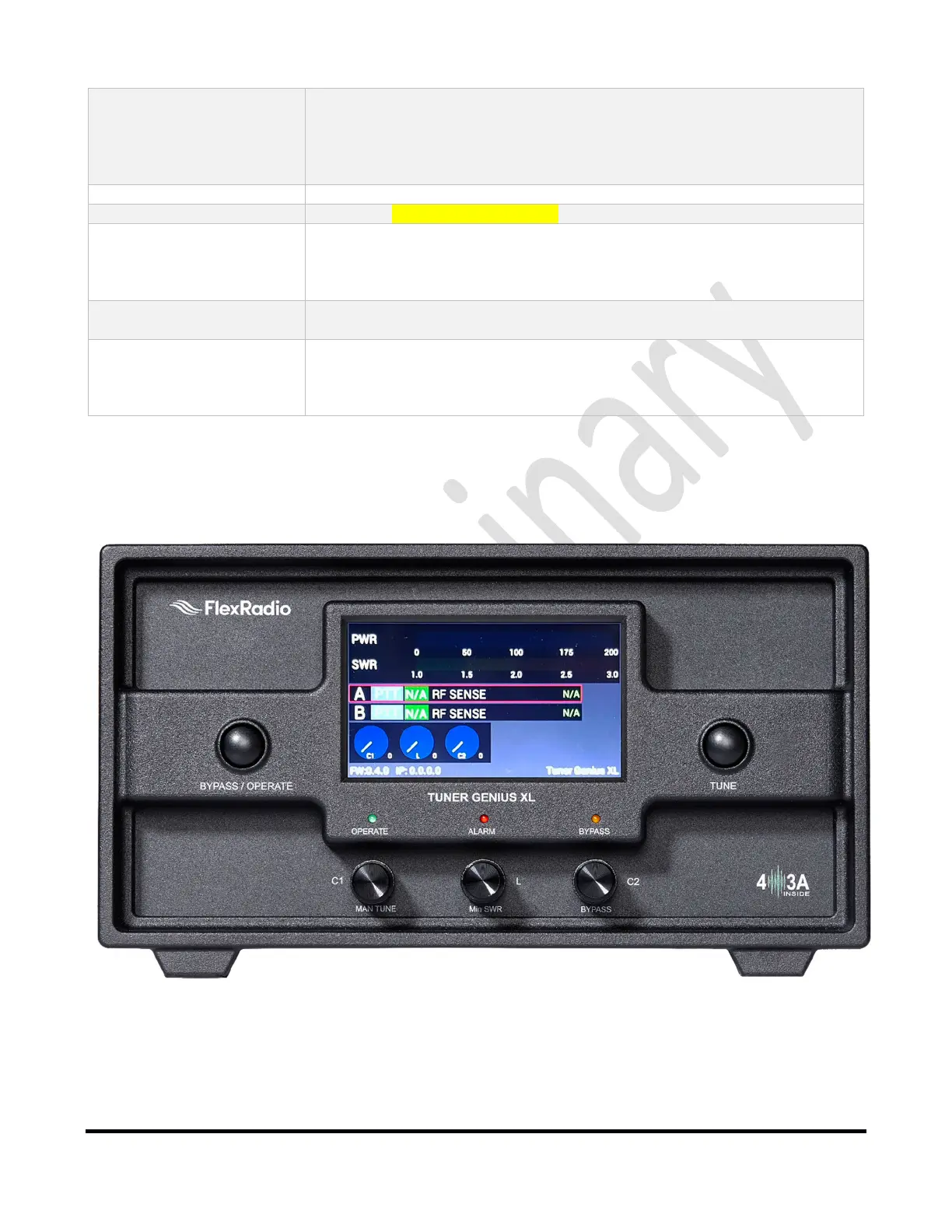

Figure 5-1 Tuner Genius Front Panel

FlexRadio Systems Tuner Genius XL Specifications

General

Brand	FlexRadio Systems
Model	Tuner Genius XL
Category	Tuner
Language	English
