6.4 Antenna Genius Integration
TheTunerGeniusXL willinterfacedirectlywithanAntennaGenius(AG)2x8or1x8switch.Pleaserefertothe
AntennaGeniusUserGuideavailable{here}forinstructionsonsetupandconfiguringthatdevice.
IntegratinganAntennaGenius(AG)willunlockadditionalsolutionmemoriesintheTunerGeniusXLand
automatically
switchtoanappropriateantennaforthefrequencyorbandyouareusing.
6.4.1 Enable Integration

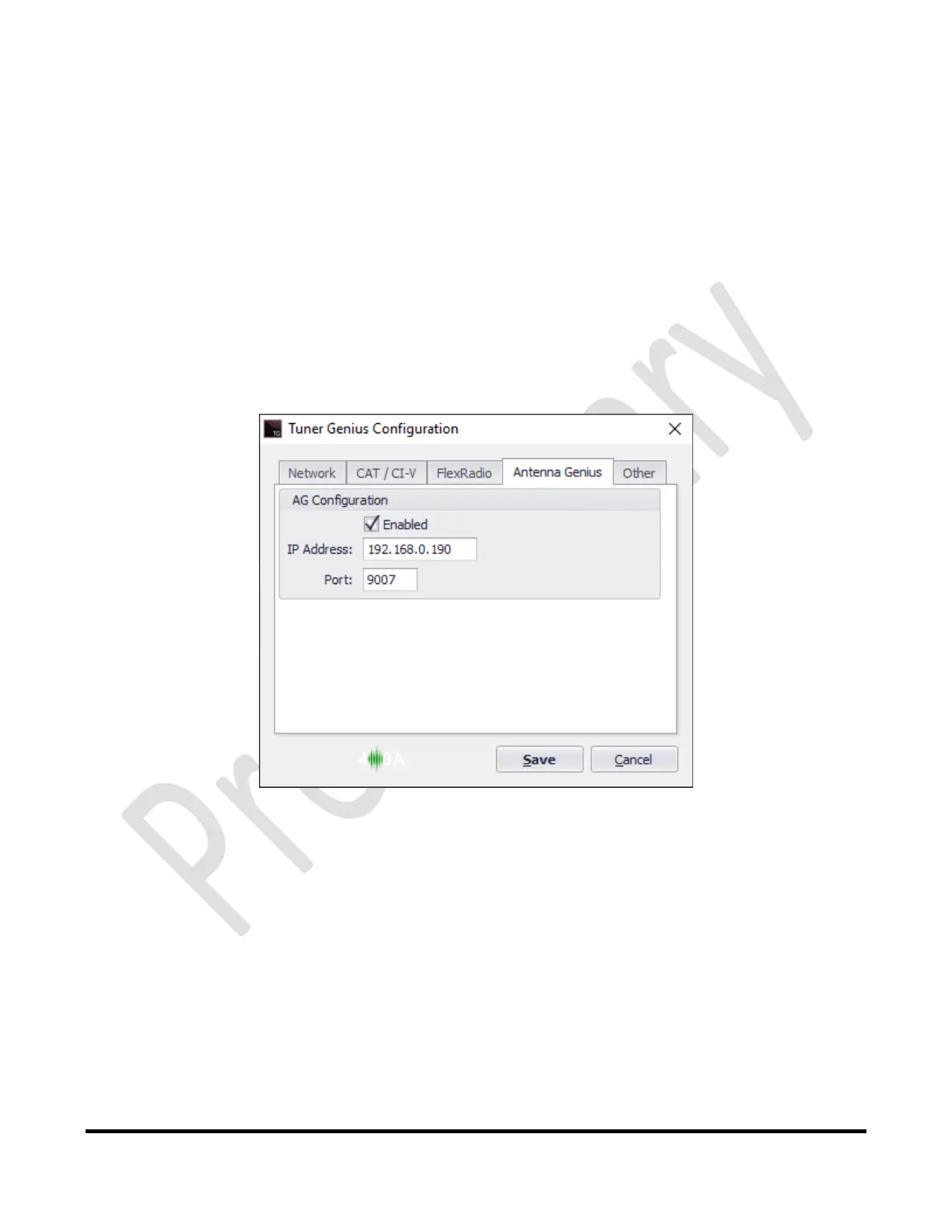

ToenableAGintegration,youmustenableit,supplythenetworkTCP /IPaddressandTCPportusedbythe
AntennaGeniusontheAntennaGeniustaboftheTunerGeniusXLWindowsUtility.Forexample,inthecase
below,theAntennaGeniusislocatedat192.168.0.190andusesthedefaultTCP
port9007forcommunications.
Click[Save]toconfirmandstoretheconfiguration.

