FlexRadio Systems Tuner Genius XL User Manual


Page70of 72
Copyright 2021 FlexRadio. All Rights Reserved. 7 June 2021(FW:0.9.12, Utility: 0.9.12)

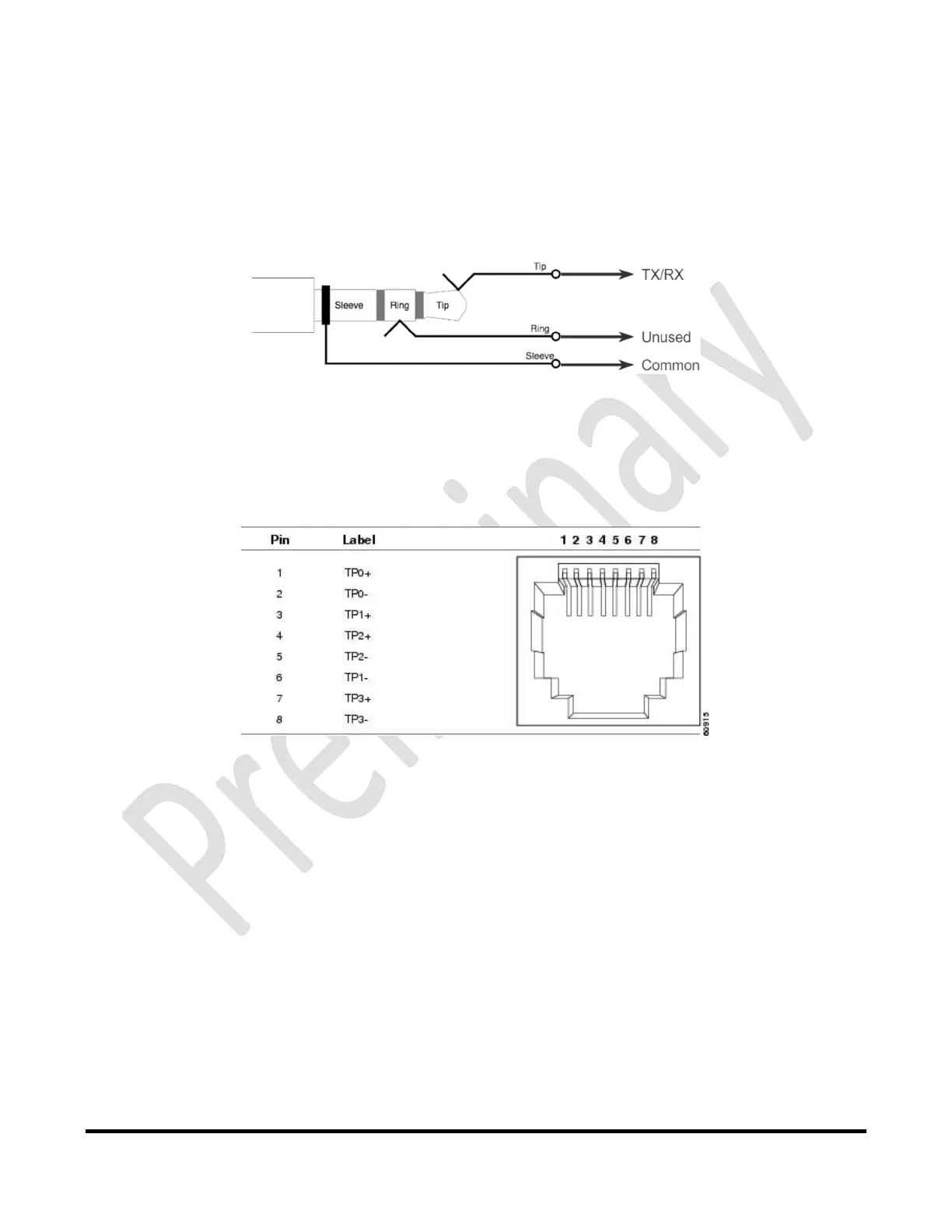

14.2.5 CI-V Connector
CI‐VstandsforComputerInterface5[RomannumeralV]andisICOM'sdesignationfortheirdigitalradiocontrol
interfacetoacomputer,peripherals,oranotherradio.YoufinditonmostIcomHFandsomeVHFtransceivers.
CI‐Visasimple10‐bit,negative‐logic,TTL‐levelserialinterface
thatallowsmorethanonedevicedaisy‐chained
oronabus.EachdeviceisrequiredtohaveauniqueCI‐Vaddress.TheTGXLus es twoCI‐Vsignallin es(data
[tip]andground[sleeve];itdoesnotimplementthePT T(RTS)line onthe[ring]

14.2.6 LAN (Ethernet) Connector
ThisRJ45jackistheEthernetnetworkconnectionfortheradio.Itisanauto‐sensing10/100megabitEthernet
port.Itauto‐sensespolarityaswell,soifyouareusingadirectconnectiontoyourPC,youdonotneeda
crossovercable.Pleaserefertothenetworkconfigurationoptions.


