singledecimalpointlessSWRmaynotprovidemuchoverallbenefit.
RXBypass
TheEnableBypassflagsandBypassStart/Stopfrequenciesseta"deadband"wherethetunerdoesnotengage
whenPTTisasserted.Whentheseflagsarenotsetoronfrequenciesoutsideofthesegmentdescribedby
BypassStartandBypassSop,atuningsolutionwillalwaysbeapplied.

8.4 User Interface Elements

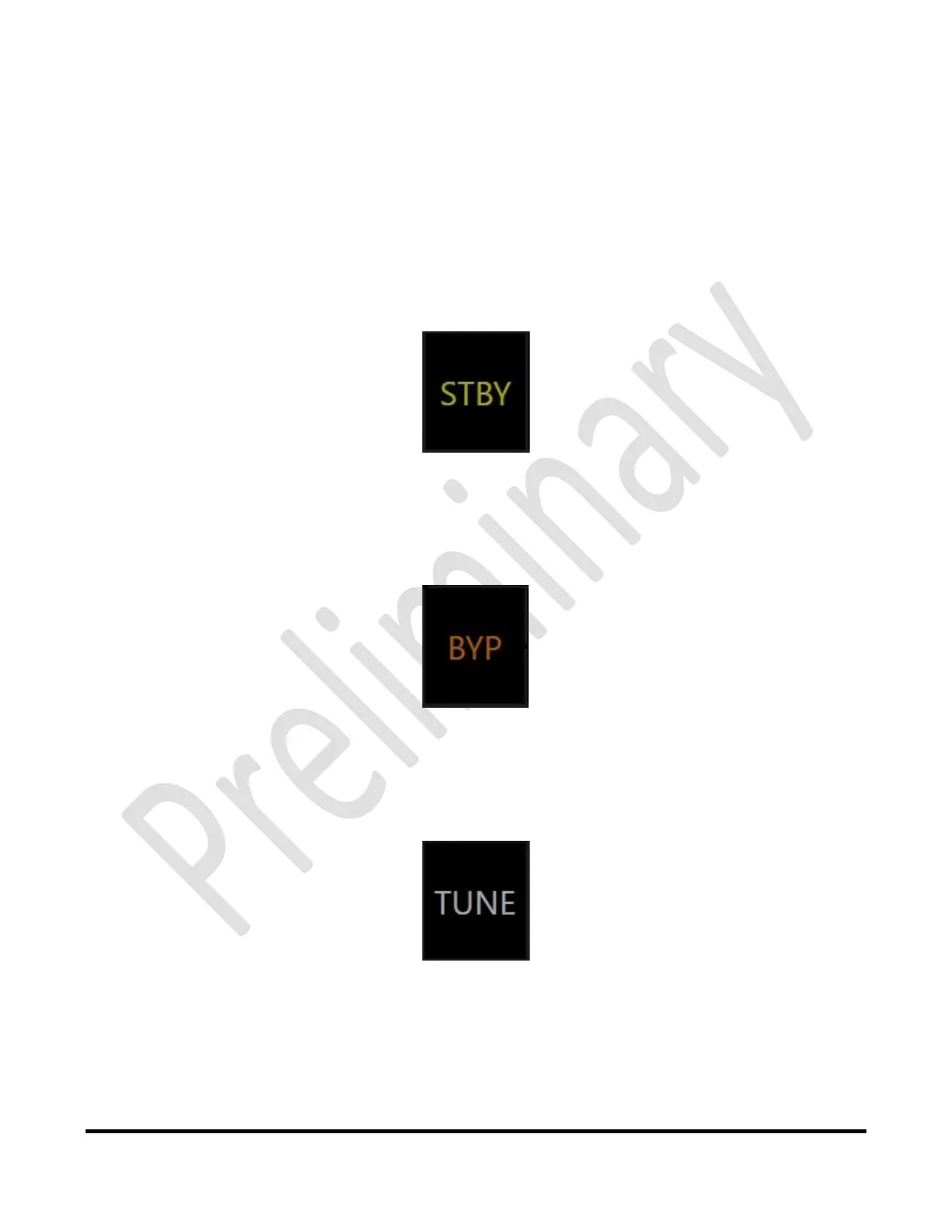

8.4.1 STBY Button

Theutilityapplicationprovidesastandby/bypassbutton.ClickingthisbuttonchangesthetunerfromStandby
modetoOperateorBypassmodeandback.
8.4.2 BYP Button

Theutilityapplicationprovidesabypass/operatebutton.ClickingthisbuttonchangesthetunerfromBypass
modetoOperatemodeandback.
8.4.3 TUNE Button

TheutilityapplicationprovidesaTUNEbutton.Amouseclickonthisbuttonstartsatuningcycleonthe
frequencycurrentlyshownonthedisplay.
