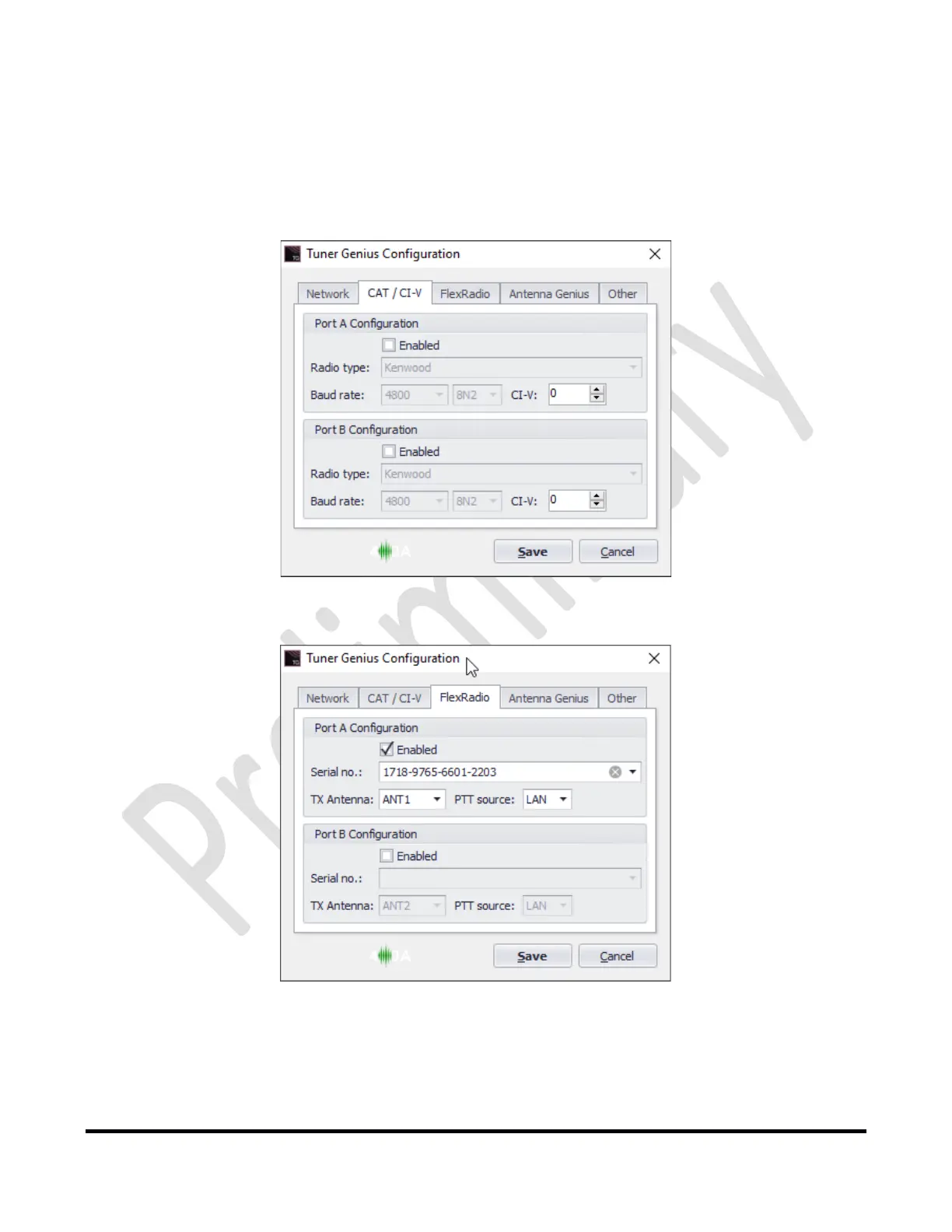

8.3.2 CAT/CI-V Tab
UsetheCAT/CI‐VtabwhenaFLEX6000Seriestransceiverdoesnotcontrolthetuner.Choosethe
transceiver'smakeandmodelconnectedtoeachofthetunerportsandthedetailsofthecommunication
protocolbetweentheradioandthetuner.Aselectionofradiomakesandmodels
areprovided.Donotusethis
tabtoconfigureFLEX‐6000Seriestransceivers.ClicktheSavebuttonafterthechoiceshavebeenmade.

8.3.3 FlexRadio Tab

Figure 8-1 A FLEX-6600M configured
for operations on Port A and ANT 1 on the Transceiver
