7.4 Transmitting

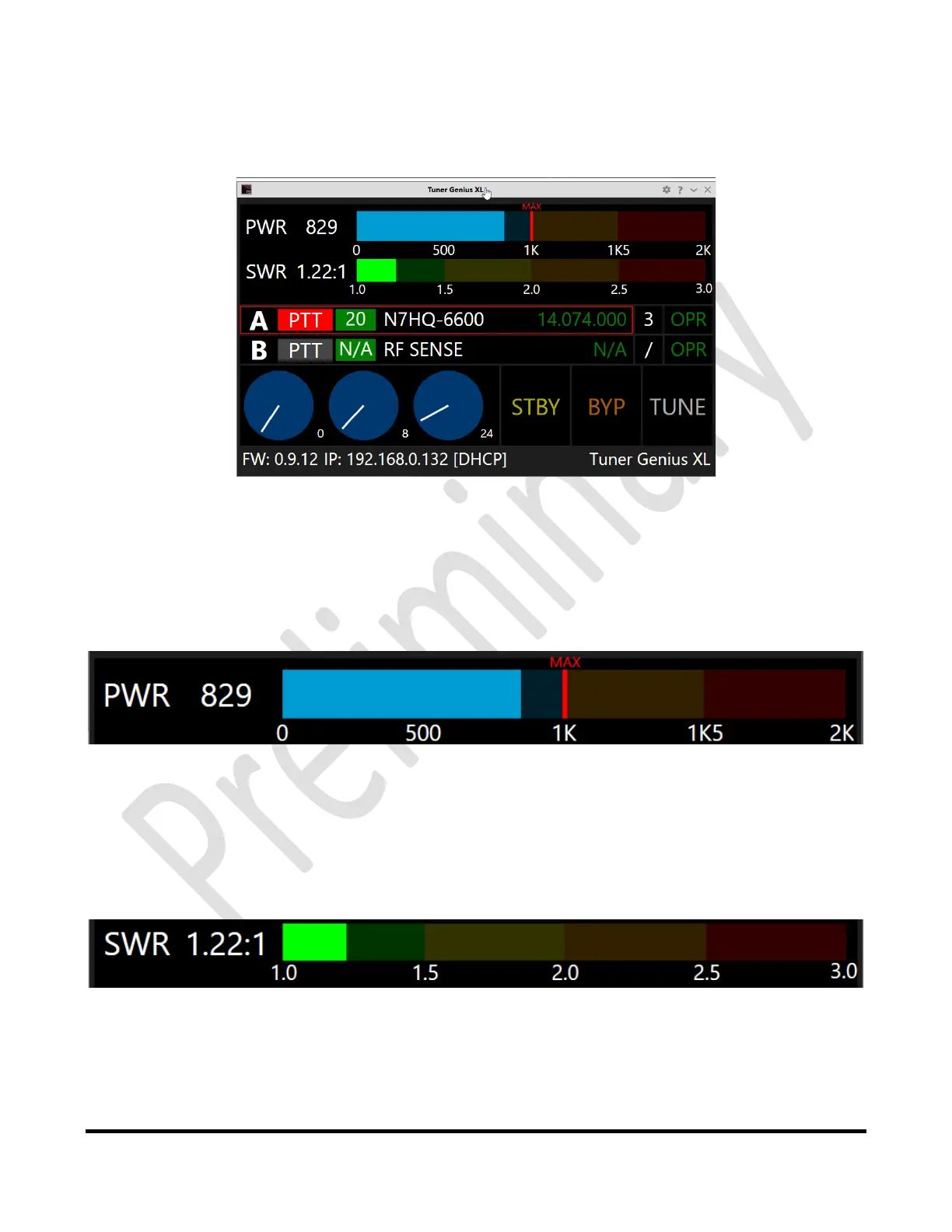

Whentransmitting,thePTTindicatorisilluminated,andthefrontpaneldisplaylookslikethefollowing:

Theelementsofthedisplayaredetailedinthefollowingsections.
7.4.1 Power Meter (PWR)
Thepowermeterindicatesthetransmittedpeakandaveragepower.Itrangesfrom0to2000watts.In
addition,amaximumpowerindicatorisshownwhendemandedbythelimitsofthetuningsolution.


i–Powermeasurementsupdateapproximatelyevery100msandshouldbeusedforreferenceonly.For
a
moreaccuratepowerreading,transmitafixedamplitudeandfrequencysignalforatleast1second.
7.4.2 SWR meter

TheSWRmetershowstheStandingWaveRatio(SWR)ontheinputportafterthetuningsolution. Itrepresents
theSWR"seen"bythetransmitteroramplifier.
