WhendrivenbyaFLEX‐6000Seriestransceiver,thetunercanbekeyedovertheradio'sLANconnection,which
automaticallymanagesalltransmitdelaysandotherdetails.Thisoptionisstronglyrecommended.However,
youcanuseaPTTsignalwireconnectedtotheappropriateRCAPTTInputonthetunerback
panel.WiredPTT
connectionsrequireatwentymillisecond(20ms)TXdelayineachTransmitprofilethatusestheTunerGenius
XL.SelectthedesiredkeyingsourceinthePTTSourceboxontheconfigurationscreenforeachradio.
WhenthesameFLEX‐6000transceiverisconnectedtobothTunerGenius
XLports(AandB),youmustselect
thesameserialnumberforbothPortAandBsectionsontheconfigurationscreen.Thisconfigurationenables
advancedSingleOperatorTwoRadio(SO2R)operationsusingasingletransceiverandtuner.


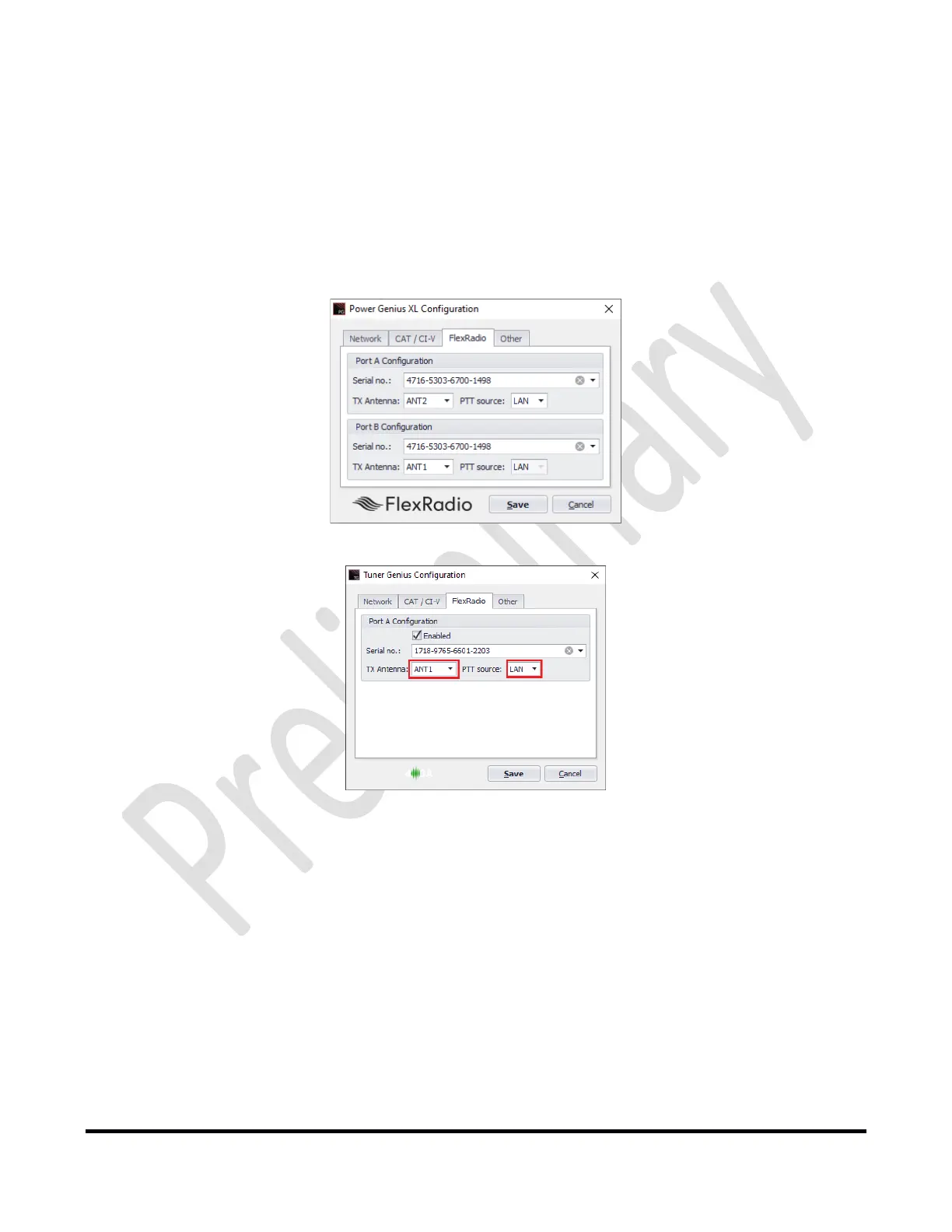

SO2RConfigurationANT2‐>PortA,ANT1‐>PortB

1x3pairingwith
theANT1outputona6600M
ClicktheSavebuttontorecordtheconfigurationinthetuner.TheTunerGeniusXLtunerisnowconfiguredfor
usebytheFLEX‐6000Seriestransceiver.Pleaseproceedtosection6.5,Testing.
!–DonotconnectanothertransceiverviaRS‐232(CAT),
CI‐V,orBCDtothesametunerPortconfiguredfora
FlexRadiotransceiver.
i–DonotconnectaPTTlinewheninterfacingwithaFLEX‐6000transceiver.Unlesssomeadvancedneed
requiresaseparatePTTsignalingwire,LANsignalingisallyouneed.
i–TheLANintegration
oftheTunerGeniusXLtunerissupportedinSmartSDRVersion2.0andlaterversions.
ItisnotsupportedinSmartSDRVersion1. 
i–Thetunerwillresetwhensaveispressed.
