FLIR T10 Series User Manual

Using the high-speed interface
(HSI)
8
8.1 General
The high-speed interface (HSI) is included in the FLIR T10xx SC kit. The high-speed in-
terface enables streaming of live video from the FLIR T10xx camera to a PC running the
FLIR ResearchIR Max software. The high-speed interface is primarily intended for R&D
usage and development purposes. As an example, the camera can capture and stream
very rapid processes, which cannot be perceived by the human eye, for later processing
and analysis in the PC software. The streamed video is fully radiometric and
uncompressed.
8.2 System overview

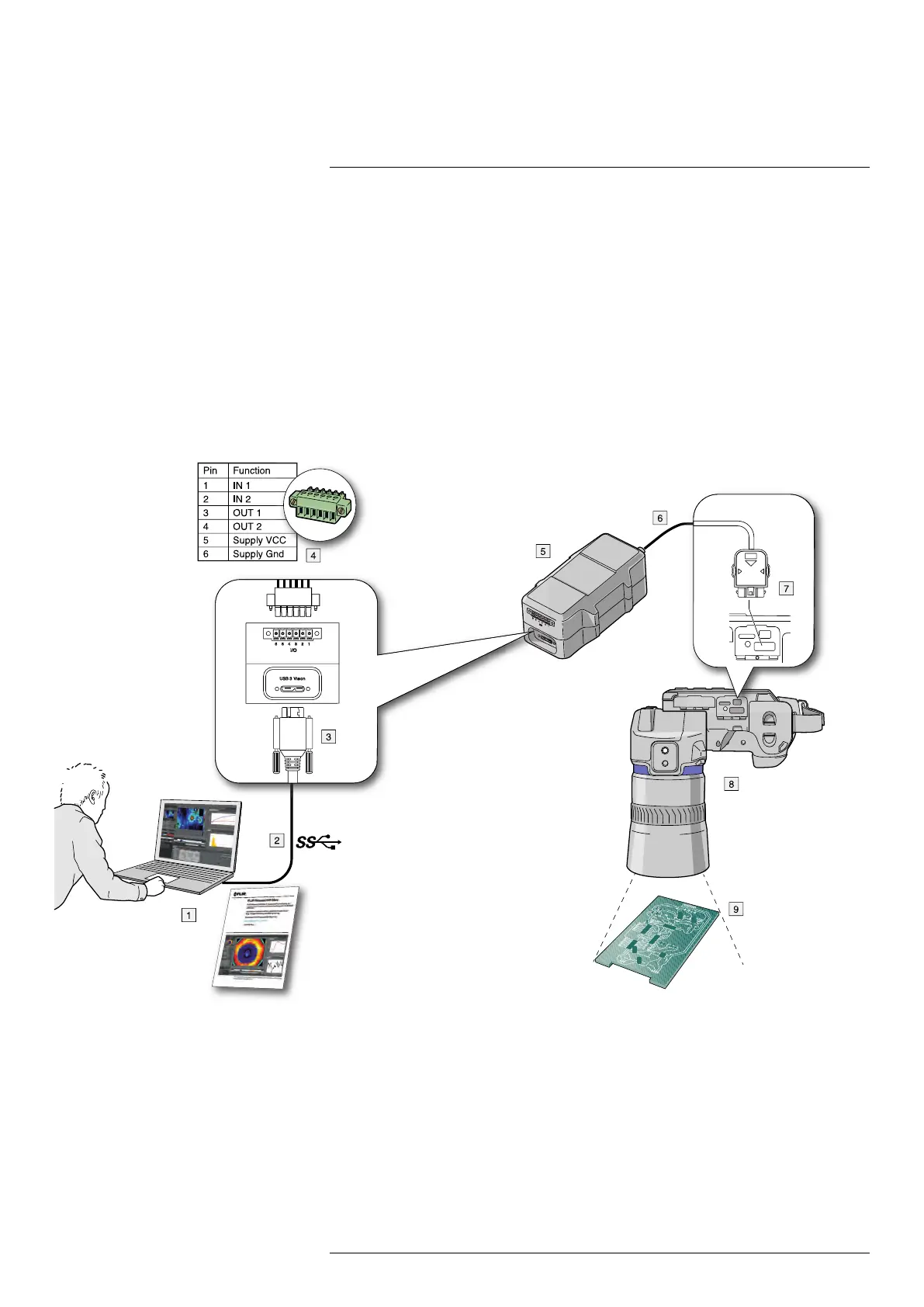

8.2.1 Figure
8.2.2 Explanation
1. PC running FLIR ResearchIR Max (a download card with a printed license key is in-
cluded with the HSI box).
2. USB 3 connection.
3. USB 3 cable connector.
4. Optional digital I/O connector.
5. HSI box
6. High-speed LVDS connection.
7. High-speed interface cable connector.
8. FLIR T10xx camera, optionally with a close-up lens.
