FLIR T10 Series User Manual

Camera parts
10
3. Laser pointer.
Note The laser pointer may not be enabled in all markets.
4. Infrared lens.
5. Camera lamp.
6. Digital camera.
7. Focusing ring.
8. Programmable button
.
9. Button to operate the laser pointer.

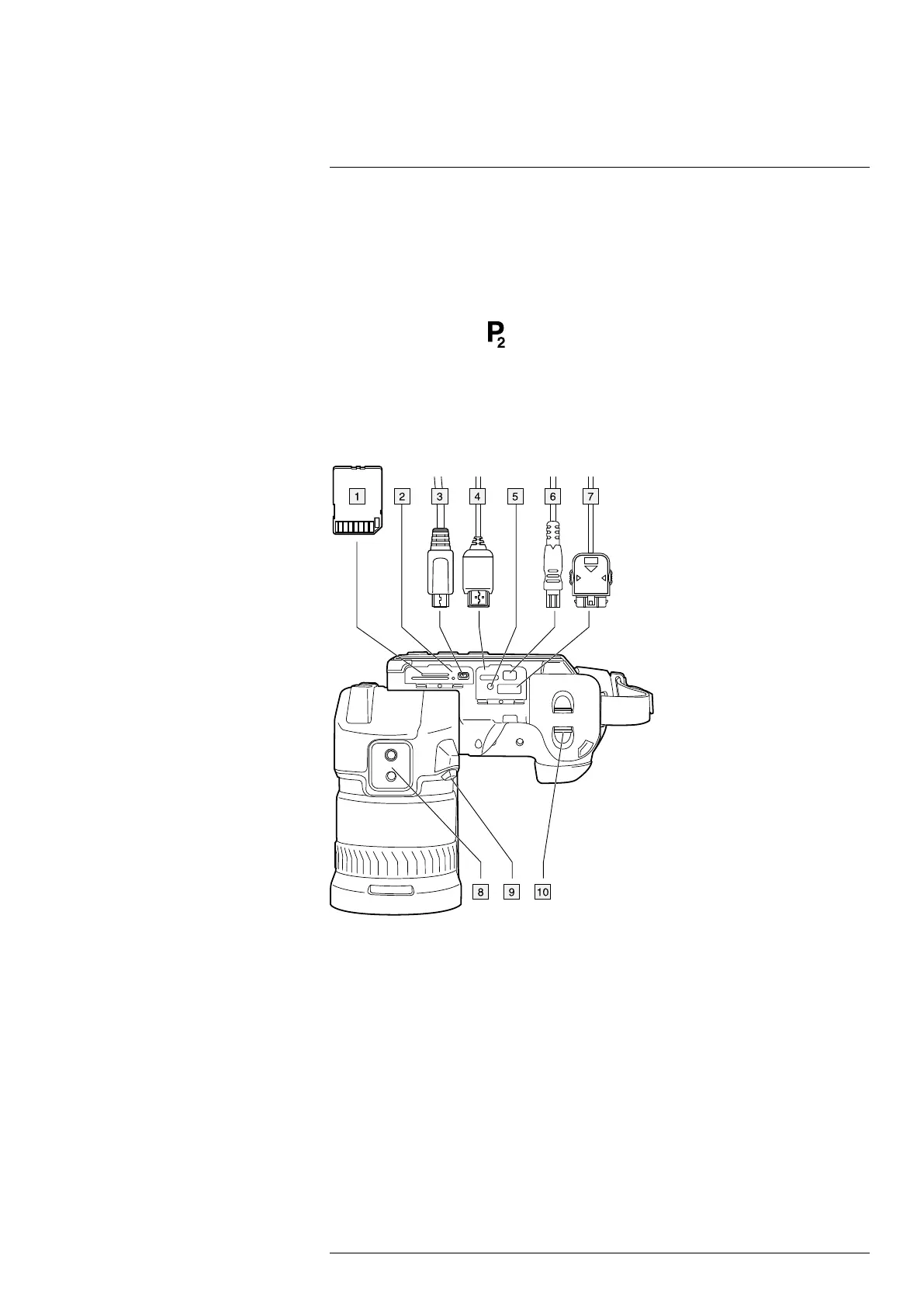

10.3 View from the bottom
10.3.1 Figure
10.3.2 Explanation
1. Memory card.
2. LED indicator showing that the memory card is busy.
Note
• Do not eject the memory card when this LED is flashing.
• Do not connect the camera to a computer when this LED is flashing.
3. USB Micro B cable (to connect the camera to a computer).
4. HDMI cable (for digital video output).
5. Battery condition LED indicator.
6. Power supply cable (to power the camera and charge the battery).
7. High-speed interface cable.
8. Tripod mount.
9. Button to release the lens.
10. Latch to release the battery.
#T559954; r. AP/42311/42335; en-US
