FLIR T10 Series User Manual

Camera parts
10

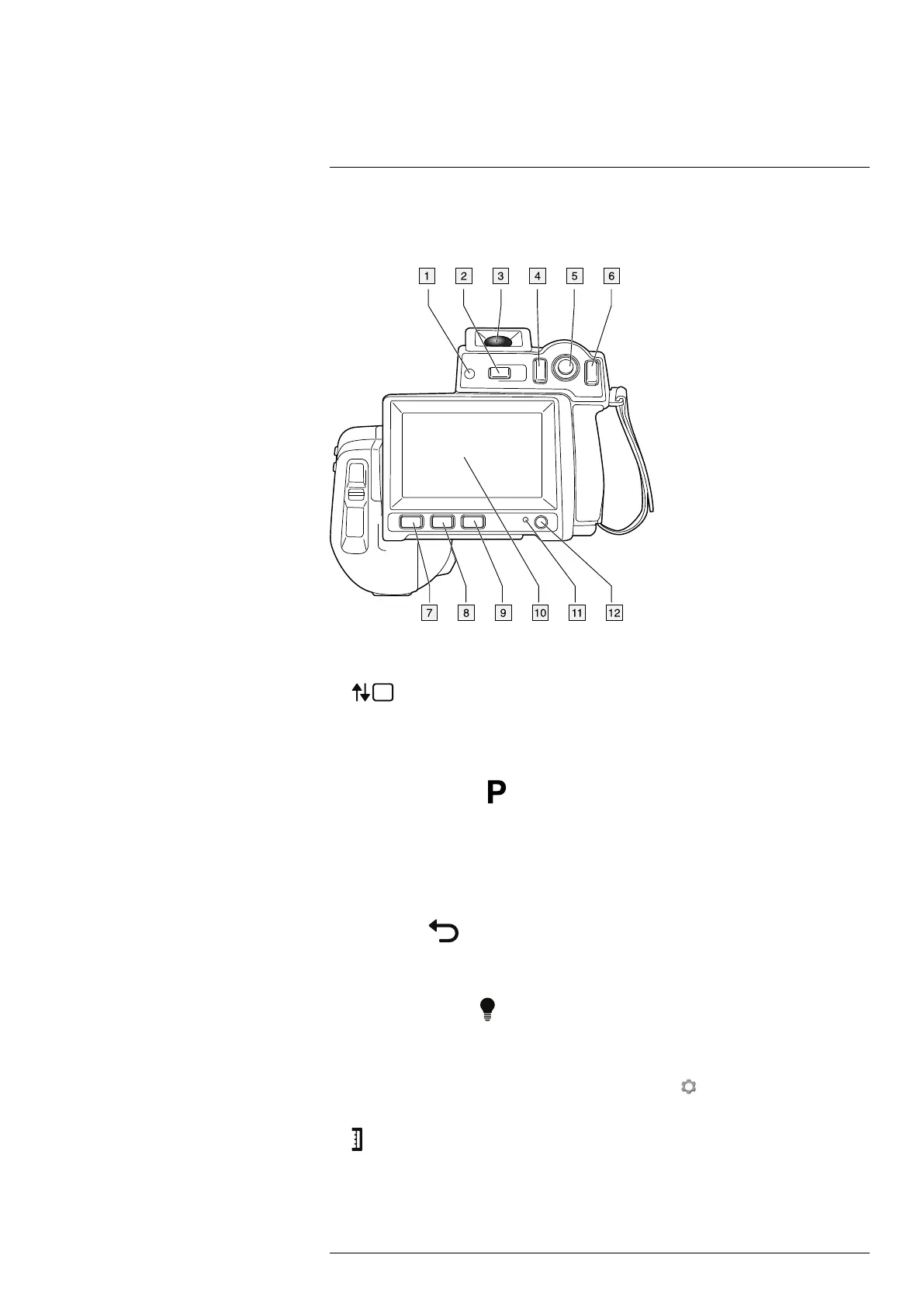

10.4 View from the rear
10.4.1 Figure
10.4.2 Explanation
1. Sensor that adjusts the touch-screen LCD intensity automatically.
2.
button.
Function:
• Push to switch between touch-screen LCD mode and viewfinder mode.
3. Viewfinder.
4. Programmable button
.
5. Joystick with push-button functionality.
Function:
• Move the joystick left/right or up/down to navigate in menus, submenus, and dia-
log boxes, and to change values in dialog boxes.
• Push the joystick to confirm changes and settings in menus and dialog boxes.
6. Back button
.
Function:
• Push to leave dialog boxes and to go back into the menu system.
7. Camera lamp button
.
Function:
• Push to turn on or off the camera lamp.
Note The camera lamp must be enabled. Select
(Settings) > Device set-
tings > Set up camera > Lamp & laser > Enable lamp & laser.
8.
button.
Function:
• Push to switch between automatic and manual image adjustment mode.
#T559954; r. AP/42311/42335; en-US
21
