Handling the camera13

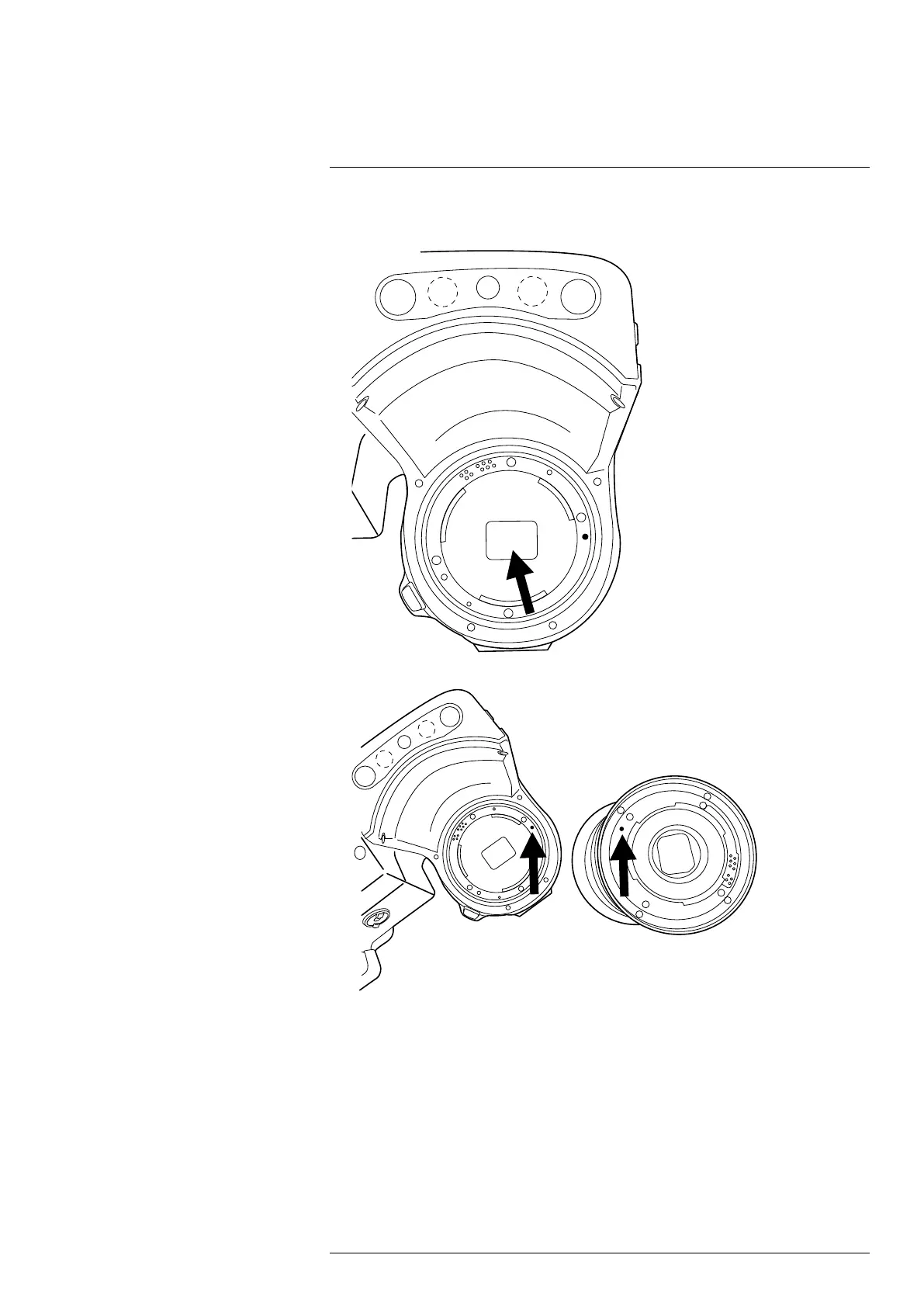

4. The infrared detector is now fully exposed. Do not touch this surface. If you see dust

on the detector, follow the instructions in 31.3 Infrared detector, page 201.

5. Note the index marks on the lens bayonet mount and on the lens.

#T559954; r. AP/42311/42335; en-US

Default Chapter7
