Page 27CWT S5 Installation & Maintenance ManualIssue 5
Product description

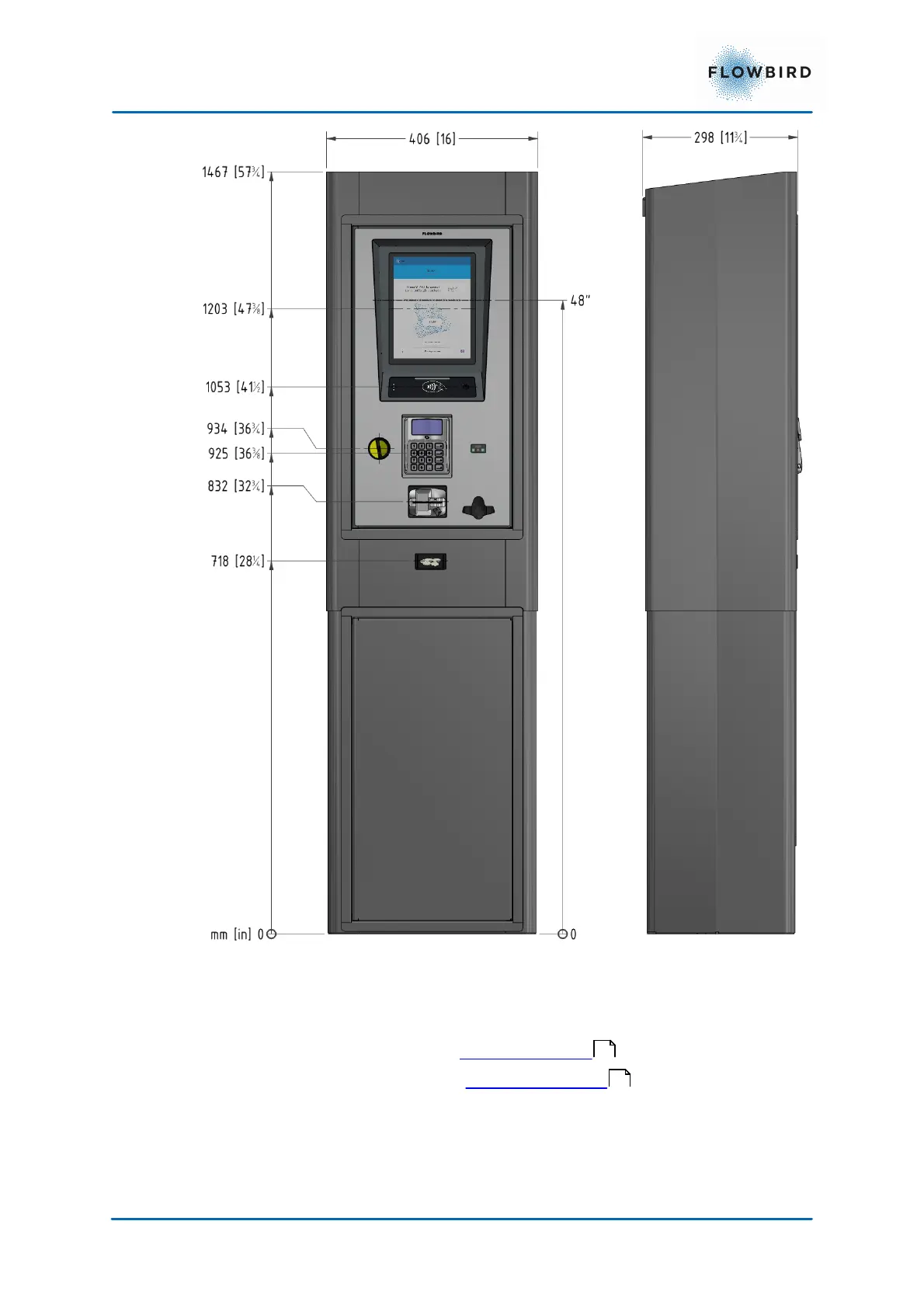

Figure 19, Compact S5 extra short: 1467 mm [57 3/4 in]
4.7.2
General
The terminal comes in 2 parts:
1. the upper part or Cabinet. See Inside the cabinet
2. the lower part or Pedestal. See Inside the pedestal
The cabinet can be detached from the pedestal and this is the way the CWT S5
is usually delivered from the factory.
