Page 28CWT S5 Installation & Maintenance ManualIssue 5
Product description
The cabinet can be removed from the pedestal at a later stage, for example for
maintenance or upgrading reasons, or if the terminal is to be taken out of
operation for a lengthy period.
The configuration of the CWT S5 is highly flexible and varies depending on
installed pay units etc.
4.7.3
Product label
Both the cabinet and the pedestal have a product label specifying the Type,
Colour, and Quality Inspection during production

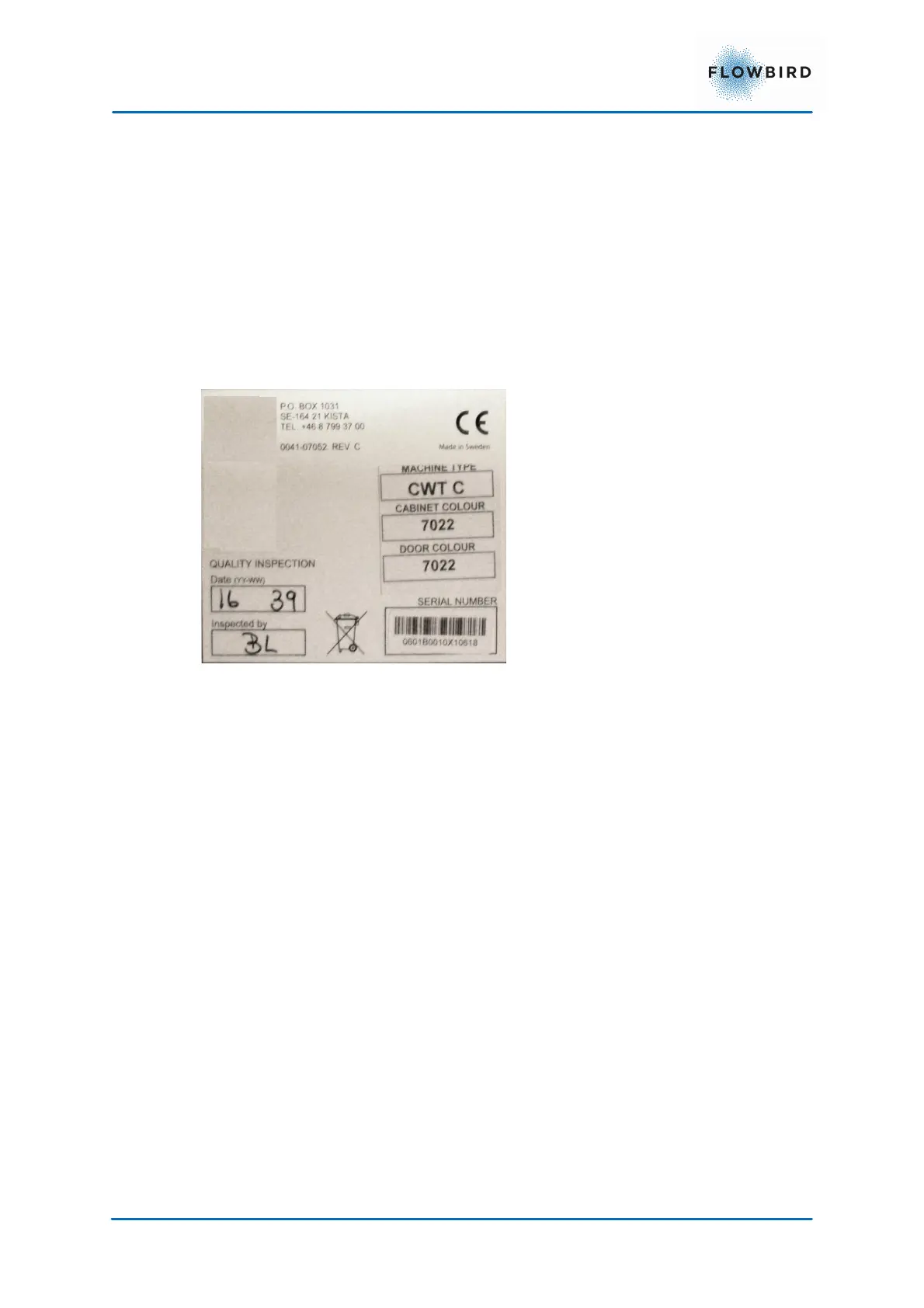

The figure below depicts the information shown on the product label attached
inside the cabinet.
Figure 20, Cabinet Product label.
4.7.4
Inside the cabinet
The items found inside the cabinet vary between the CWT S5 models and
between different versions of each model. The figures show a CWT S5 equipped
for payment with coins, credit cards, and optional contact-less cards.
