Page 45CWT S5 Installation & Maintenance ManualIssue 5
Installation

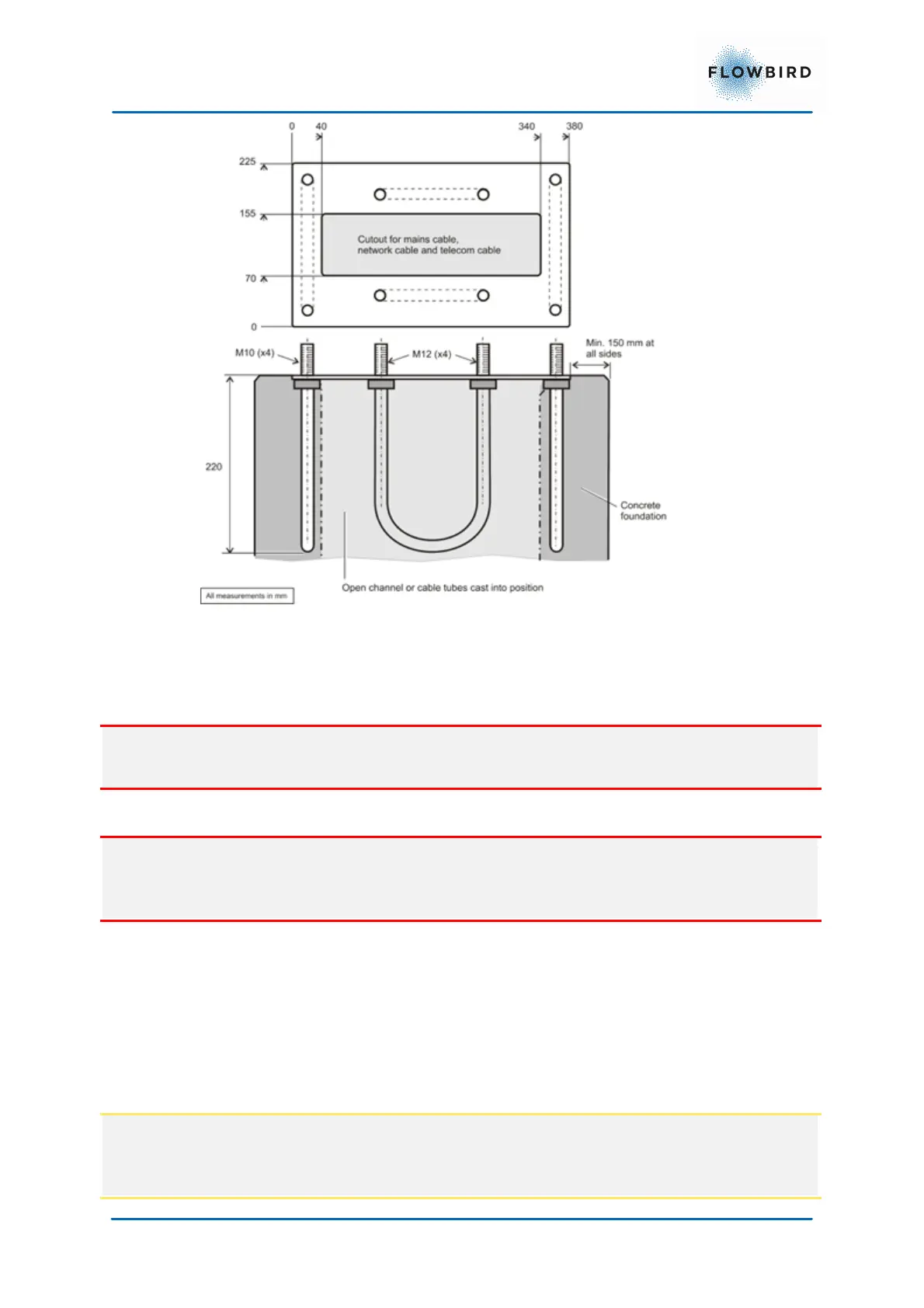

Figure 38, Foundation measurements
If the terminal should be connected to the grid power supply, a duct must be cast
in the concrete foundation so that the cable can be routed in through the bottom
of the pedestal. You can cast an approved type of plastic or steel pipe, according
to local regulations.
Danger:
Follow local regulations regarding electrical installations.
5.1.5
Power supply
Danger:
Only qualified personnel may carry out electrical installation. Follow all local
regulations.
Unless otherwise agreed, the customer is responsible for providing an
appropriate 12V battery. For Compact S5 terminals connected to the grid power
supply, a battery capacity of 17 Ah is required. Terminals equipped with a solar
cell panel require at least 45 Ah.
The customer is responsible for installing cables for terminals that will use the
grid power supply. When delivered, terminals are ready to be connected to the
power supply used at the installation site. It is up to the customer to ensure that
the correct type of battery charger and fuses are used.
Note:
The maximum total power consumption depends on the configuration of the
terminal.
