Daily operation
Emptying the coin box
1. Turn the collection lock clockwise with the appropriate key. The same key
combination is usually used for all coin boxes.
2. Pull the emptying hatch out completely. This will empty the box of its contents
and activate the internal mechanism.
3. Push the emptying hatch in. The hatch can be pushed back in only if it has
previously been pulled out completely.
4. Turn the collection lock counterclockwise and remove the key.
Inserting the coin box
1. Insert an empty coin box.
2. Turn the opening knob counterclockwise to its vertical position. This locks the
box into position in the vault and opens the collection hatch.
Important:
If the knob is accidentally turned to the horizontal position at this point, the
box must be emptied as described in section 2 above before the knob can be
returned to the correct position.
3. Close the vault door. The opening knob must be in the vertical position for the
door to be closed.
6.2 Paper refill
1. Remove the remaining paper from the printer, if any.
2. Remove about 0.7 m of the paper from a new roll to ensure there is no glue
residue left.
Make a clean straight cut to make sure the paper will be inserted correctly in
the printer
3. Remove the old roll and take out the roll support and place it in the new roll

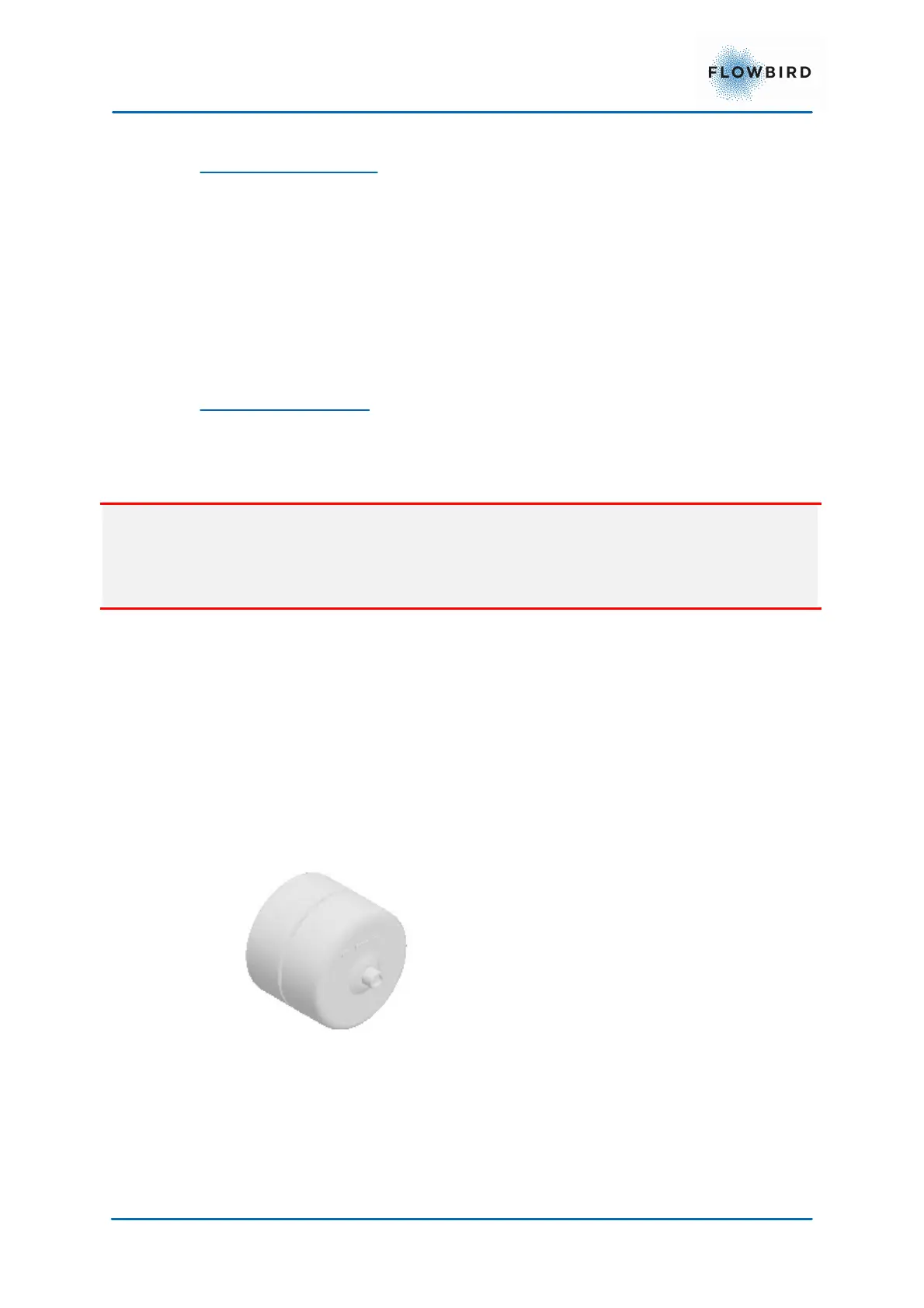

Figure 49, Paper roll support
4. Place the roll in the paper roll holder
Orient the roll so the paper leaves the roll from the front and downwards.
