10
Mounting
Note: If the positioner is installed in a
hazardous environment, it must be of a
type approved for this purpose.
All versions of the PMV D3 positioner have
an ISO F05 footprint, A. The holes are used to
attach the PMV D3 to the mounting bracket B.
Please contact PMV or your local distributor
representative with actuator specifics for the
proper mounting bracket and hardware.
The spindle adapter C can be changed to suit
the actuator in question.
It is important that the positioner’s spindle
and the lever arms, that transfer the actuator
movements, are correctly mounted.
Any tension between these parts can cause
incorrect operation and abnormal wear.

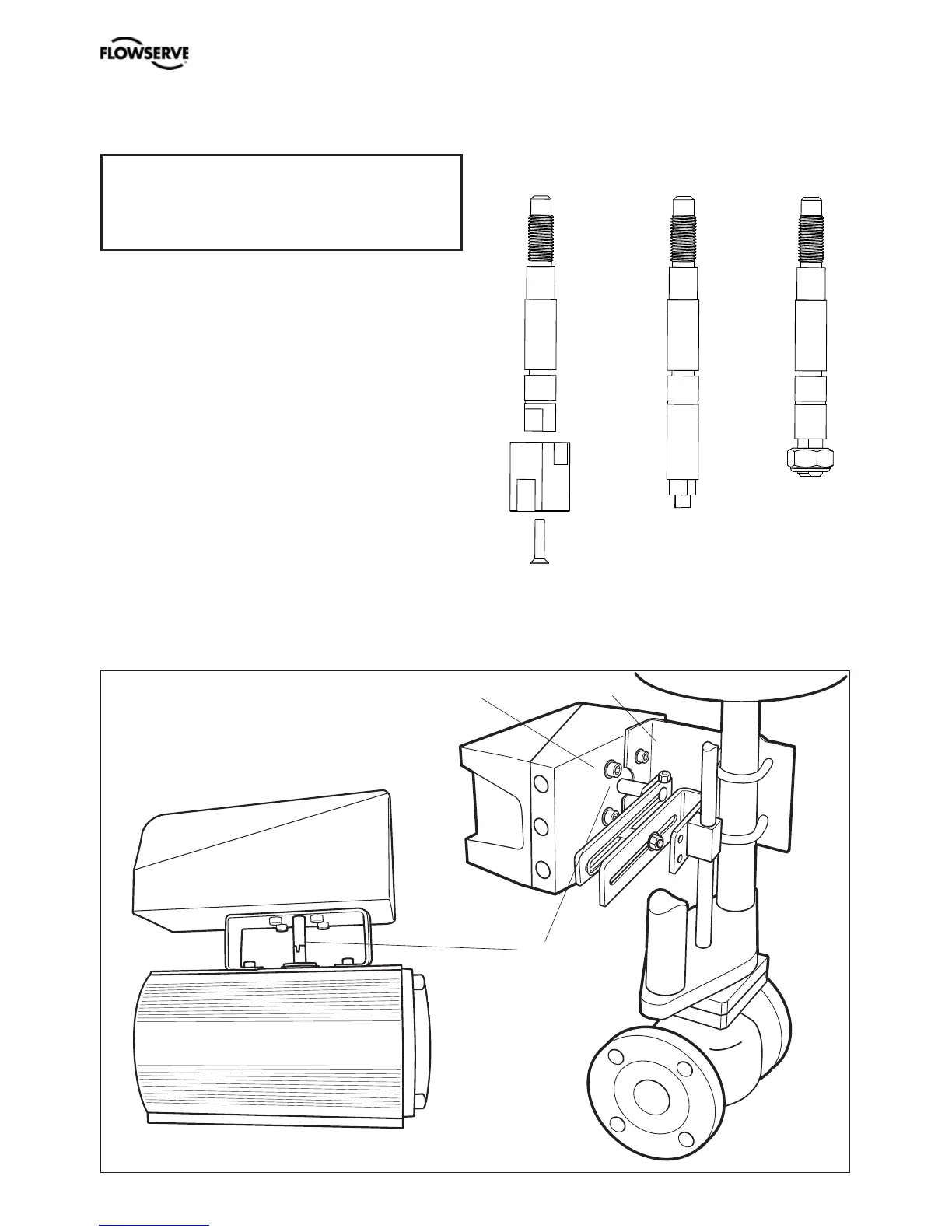

Assembly examples
A B
C
C
Rotary movement Linear movement
Spindles
S09 S23 S39
