Filter change
Turn off the compressed air supply
before starting any work.
Otherwise the filter can be
blown out of the positioner by the air
pressure, which can be dangerous.
•

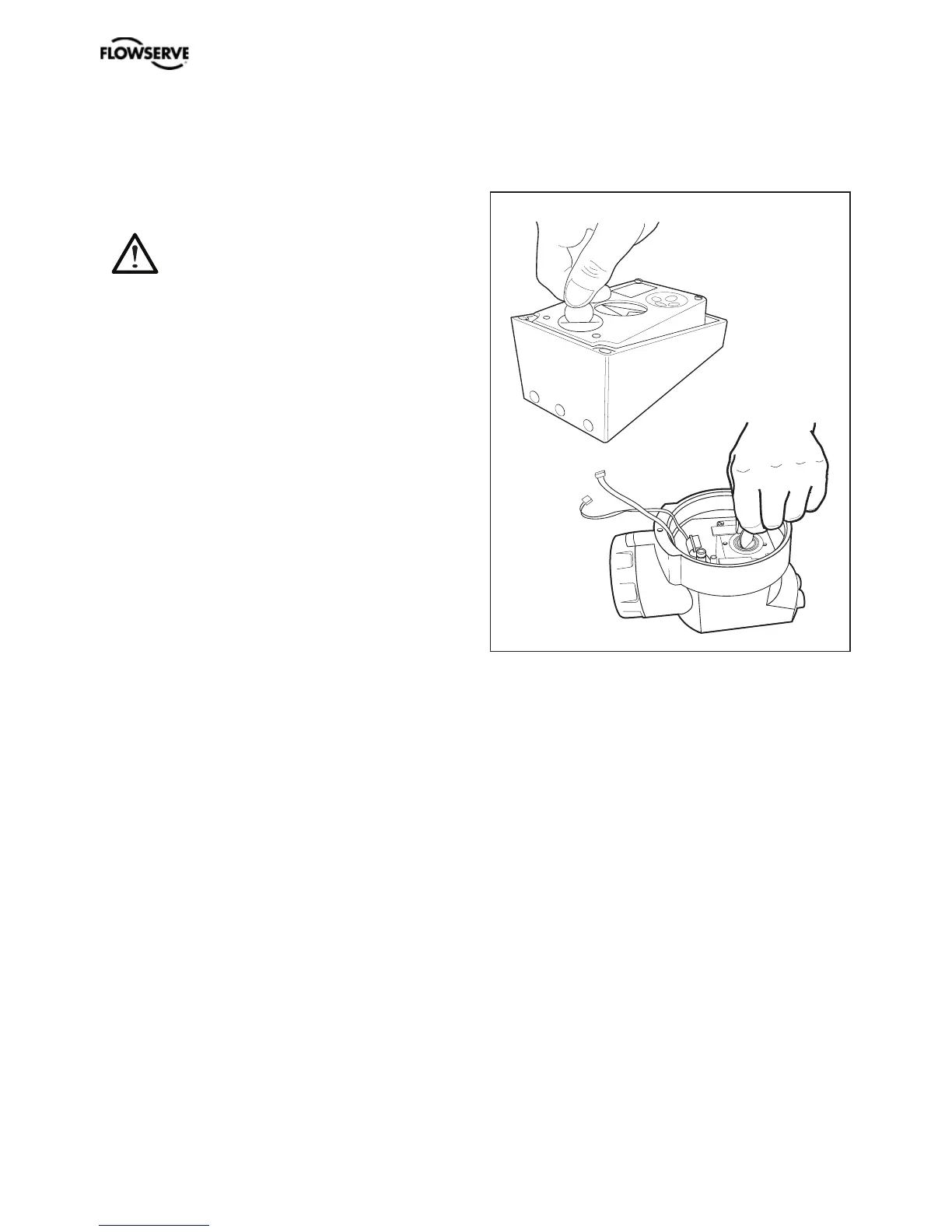

Remove the filter cap using a coin of
suitable size.
Note! Do not use a screwdriver. The filter
cap might crack and cause air leakage.
• When installing the filter/filter plug, start
by installing the O-ring in the bottom of
the cavity in the pneumatic block. Do not
try to install it on the threaded filter plug.
Insert filter in the filter plug, then thread
the filter plug into pneumatic block.
