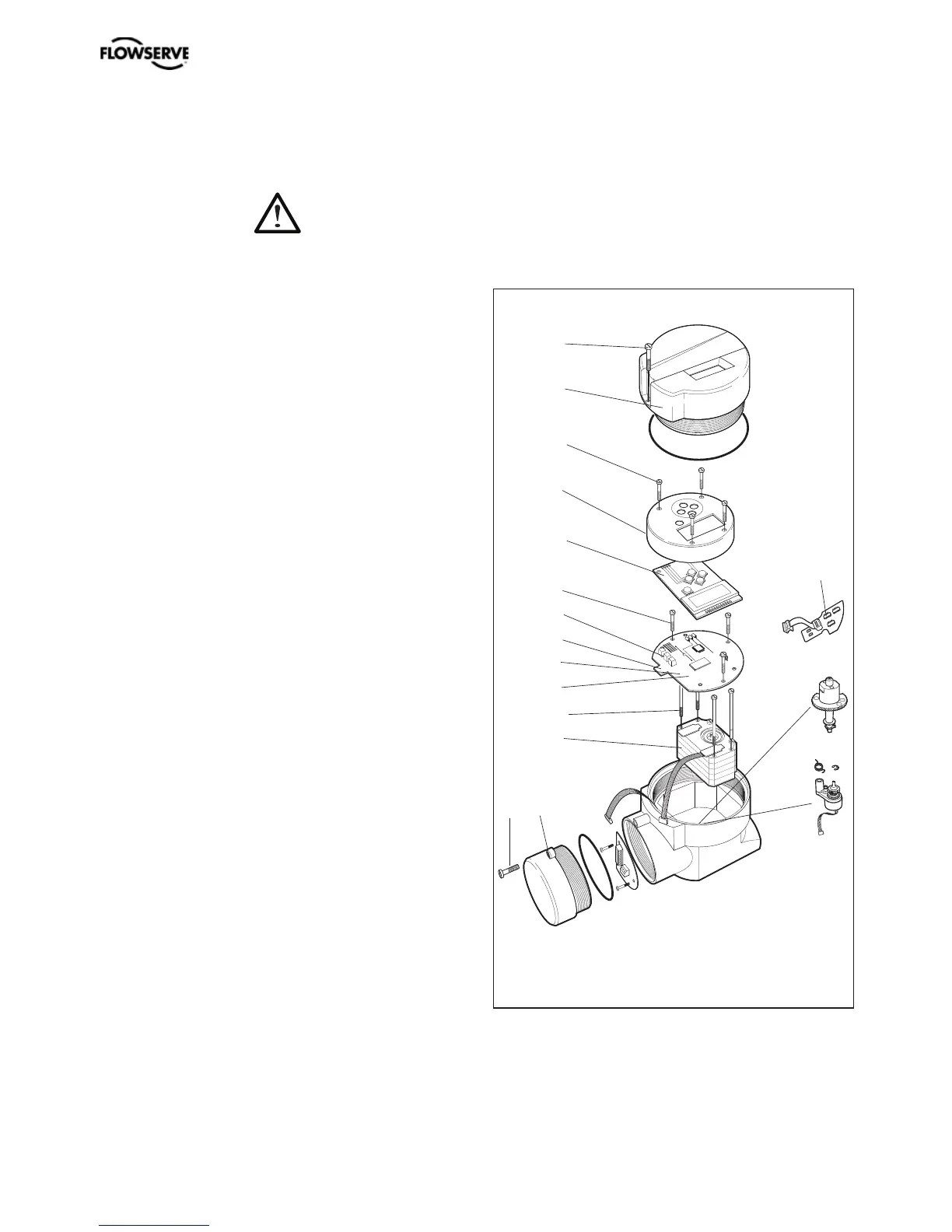

Disassembling PMV D3 Ex
Caution! Turn off the power and air supply
before disassembling the PMV D3 EX
• Loosen the screws A and B and remove the
caps C and D.
• Remove the inner display cover E by
loosening the four screws F.
• Carefully remove the display board and
loosen the connection H and I.
• Release the wide cable from the connector
J on the terminal board.
• Loosen the three screws K.
• Remove the circuit board package L,
consisting of terminal and processor board.
• Remove the four screws M and lift the block
N.
• Pressure sensor board O, (option) can only
be moved after the block N is removed.
A
D
F
E
G
K
H
L
I
J
M
N
B C
O
