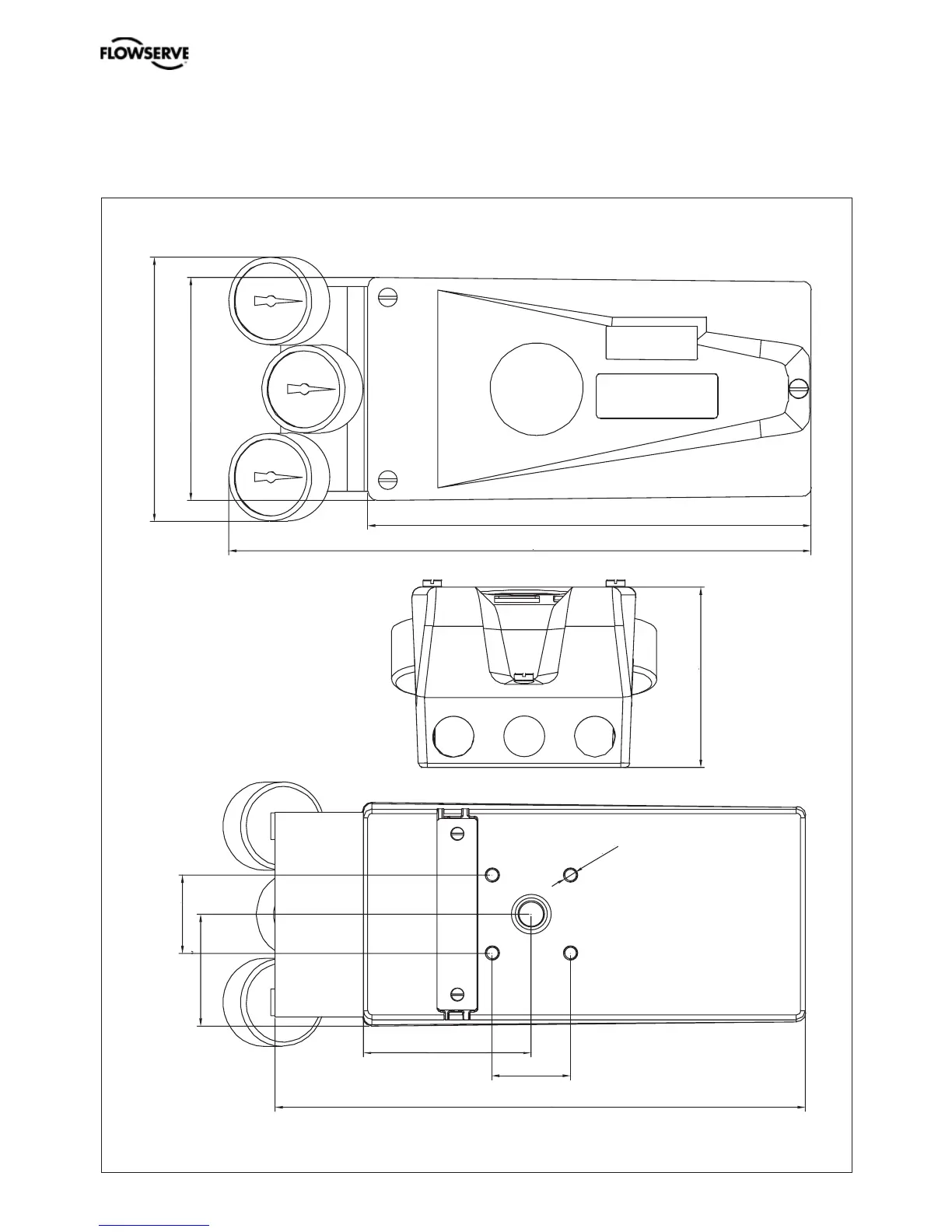

Dimensions with optional gauge block installed
264 / 10.4”
35.4 / 1.4”
35.4 / 1.4”
M6 / (4x)
240 / 9.4”
51 / 2”
76 / 3”
82 / 3.2”
200.6 / 7.9”
101.4 / 4”
120 / 4.7”
PMV D3 Digital Positioner FCD PMENIM0001-06 A5 09/16
