Menu Tree
The following figure provides an overview of the Power View menu structure that will be
helpful in navigating through the Power View application.
SD
1750
1750
Fluke
Power View
Insert File
Insert Stop MarkInsert Start Mark
Insert Text File
Tools Menu
ScopeScope
Meter
1750
Memo
ry Card Files
Memory Card Full
If Memory is full
Download
SD Card Files
Phasor
Annotate
Memory
Data
Settings
Check List
Harmonics
Trend
Snapshot Interval
1750 Internal Memory
1750 SD Memo
Write to SD
Delete File Cancel
1750
Memo
r
y Card Files
Delete File
Return to Download
Cancel
Erase All
1750 Setup
Setup
Password
Incorrect Password
Connecting
1750 Power Recorder
Not Found
1750 Power Recorders
Found
Erase 1750 Memory
Tools
Exit
Live
Scope
Meter
Phasor
Harmonics
Trend
Home
1750 Shutdown...
Erase 1750 Memory
azd15f.eps

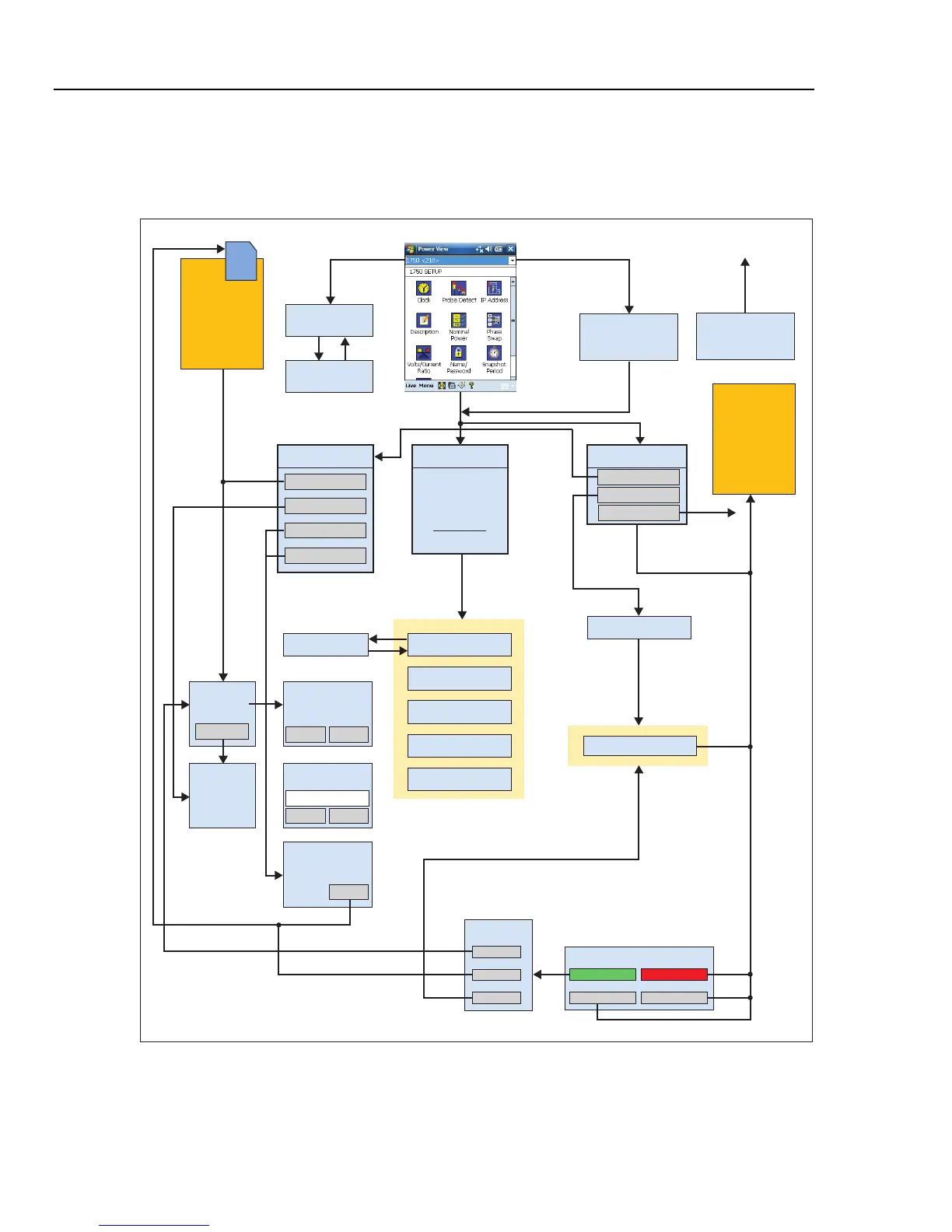

Figure 15. Power View Menu Tree

Fluke 1750 Specifications

General

Type	Power Quality Analyzer
Frequency Measurement Range	42.5 Hz to 69 Hz
Safety Rating	CAT IV 600 V, CAT III 1000 V
Accuracy	±0.1% of reading
Harmonics	Up to 50th harmonic
Communication	Ethernet, USB
Power Supply	100 V to 240 V AC
Channels	4 voltage, 4 current
Battery Backup	Yes, internal battery
Measurement Parameters	Voltage, Current, Power, Harmonics, Flicker
Data Logging Interval	1 second to 60 minutes
Battery Life	45 minutes (UPS)
Voltage Measurement Range	1 to 1000 V (phase to neutral)
Operating Temperature	-10 to 50 °C
