Fluke 1750 User Manual

Power Recorder
Viewing Live Data
37

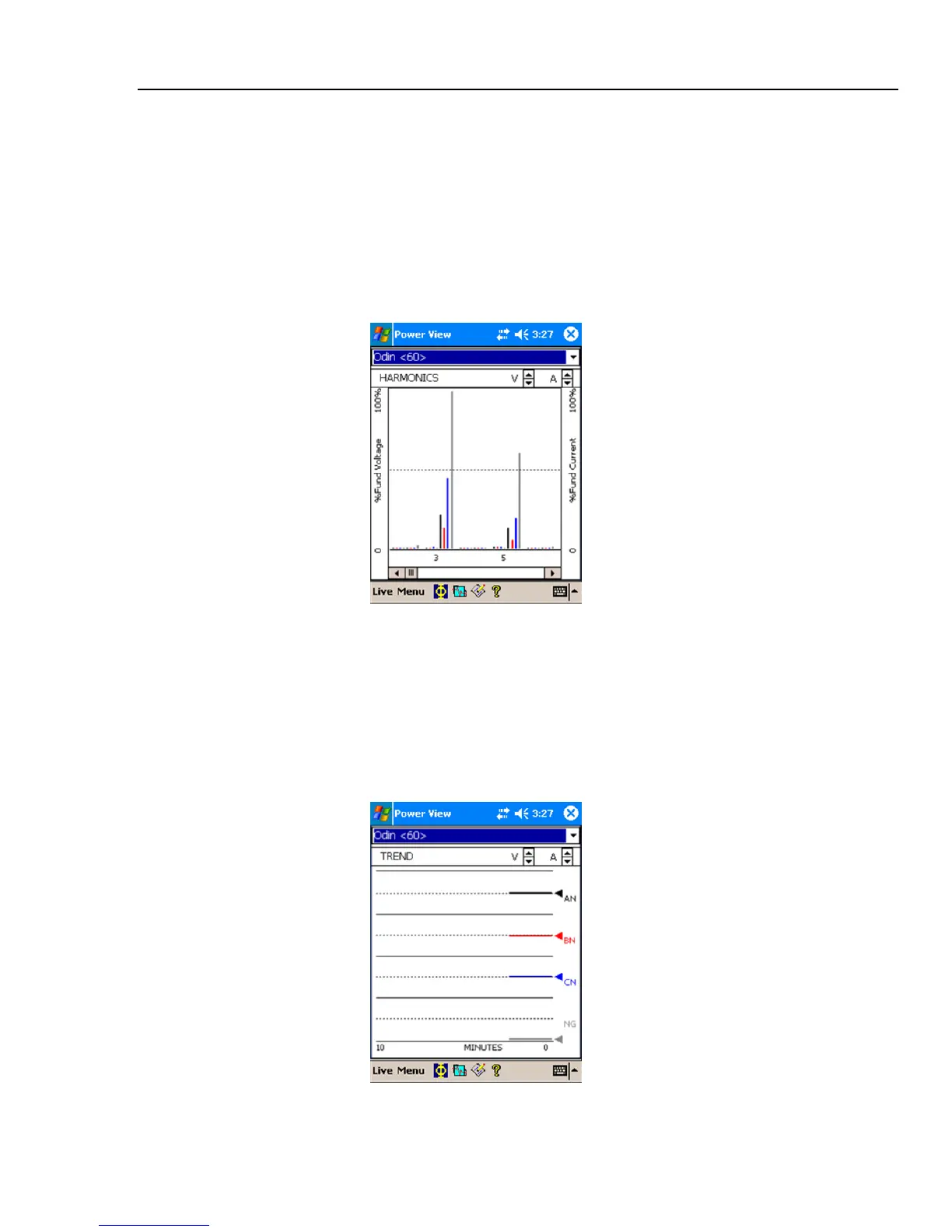

Harmonics Screen
The Harmonics screen shows the magnitudes of the selected phases of V and I. The scale
is % of nominal.
The slider control displays harmonics of a higher order up to the 50
th
. The V and A
scaling arrows are on the screen in the upper right.
If the power type is delta, V phases are AB, BC, and CA (L1L2, L2L3, L3L1 is available
as a localized European labeling scheme). If the power type is Wye, V phases are AN,
BN, CN, and NG. (N = neutral, G = ground).
Trend Screen
The Trend screen shows live data being recorded as a strip chart display of the selected
phases of voltage or current. This moment in time is visible on the right side of the graph.
The traces fill the screen in 10 minutes, and continue FIFO (first-in, first-out). This
feature is intended to paint a picture of the short-term stability of the power system. The
V and A scaling arrows on the upper right work like the scaling arrows on the PHASOR
screen.

Fluke 1750 Specifications

General

Type	Power Quality Analyzer
Frequency Measurement Range	42.5 Hz to 69 Hz
Safety Rating	CAT IV 600 V, CAT III 1000 V
Accuracy	±0.1% of reading
Harmonics	Up to 50th harmonic
Communication	Ethernet, USB
Power Supply	100 V to 240 V AC
Channels	4 voltage, 4 current
Battery Backup	Yes, internal battery
Measurement Parameters	Voltage, Current, Power, Harmonics, Flicker
Data Logging Interval	1 second to 60 minutes
Battery Life	45 minutes (UPS)
Voltage Measurement Range	1 to 1000 V (phase to neutral)
Operating Temperature	-10 to 50 °C
