Fluke 1750 User Manual

Power Recorder
Applying the Front Panel Decal
7
Applying the Front Panel Decal
Self-adhesive front panel decals are supplied with the 1750. The supplied decals
correspond to the wiring color codes used in the USA, Europe and UK (new), Europe
(old), UK, Canada, and China. Apply the decal appropriate for your local wiring codes
around the current and voltage inputs as shown in Figure 2.
EUROPE & UK (new std)
L2L2L1L1 N
VOLTAGE
CURRENT
China
BA CNN
VOLTAGE
CURRENT
EU (old std)
L2L2L1L1
L3
L3
N
VOLTAGE
CURRENT
UK
L2L1 L3 N
VOLTAGE
CURRENT
USA
BACN
VOLTAGE
CURRENT
Canada
CURRENT
BACN
VOLTAGE
SD
ETHERNET
POWER
1750
POWER RECORDER
ON
BUSYLINK
100-240 V
47-63Hz
BACN
VOLTAGE
CURRENT
azd17f.eps

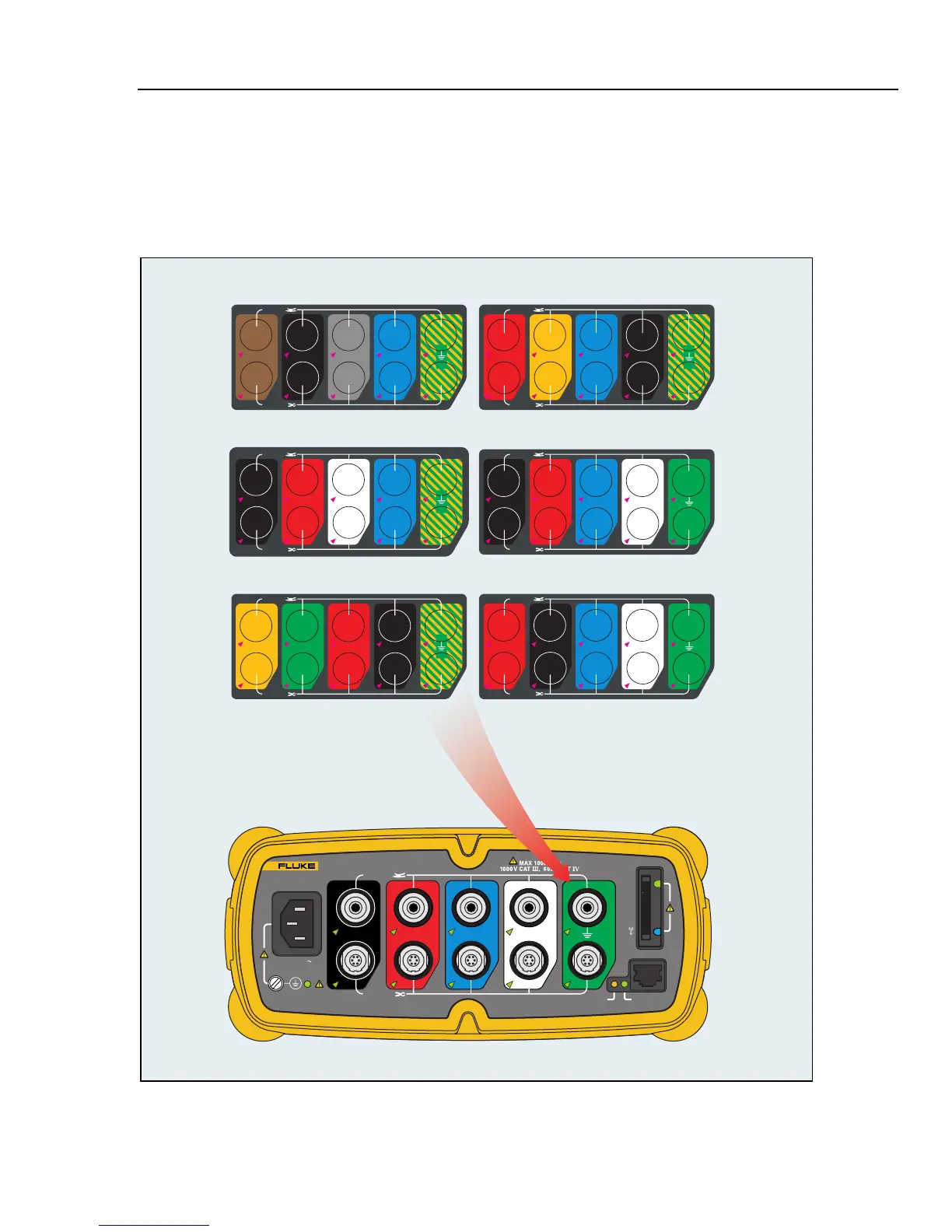

Figure 2. Applying the Front Panel Decal

Fluke 1750 Specifications

General

Type	Power Quality Analyzer
Frequency Measurement Range	42.5 Hz to 69 Hz
Safety Rating	CAT IV 600 V, CAT III 1000 V
Accuracy	±0.1% of reading
Harmonics	Up to 50th harmonic
Communication	Ethernet, USB
Power Supply	100 V to 240 V AC
Channels	4 voltage, 4 current
Battery Backup	Yes, internal battery
Measurement Parameters	Voltage, Current, Power, Harmonics, Flicker
Data Logging Interval	1 second to 60 minutes
Battery Life	45 minutes (UPS)
Voltage Measurement Range	1 to 1000 V (phase to neutral)
Operating Temperature	-10 to 50 °C
