Power Recorder
Home Screen
29
Home Screen
The Home screen is the top-level screen, accessed when you start Power View or when
you tap Live and then Home on the Menu Bar.

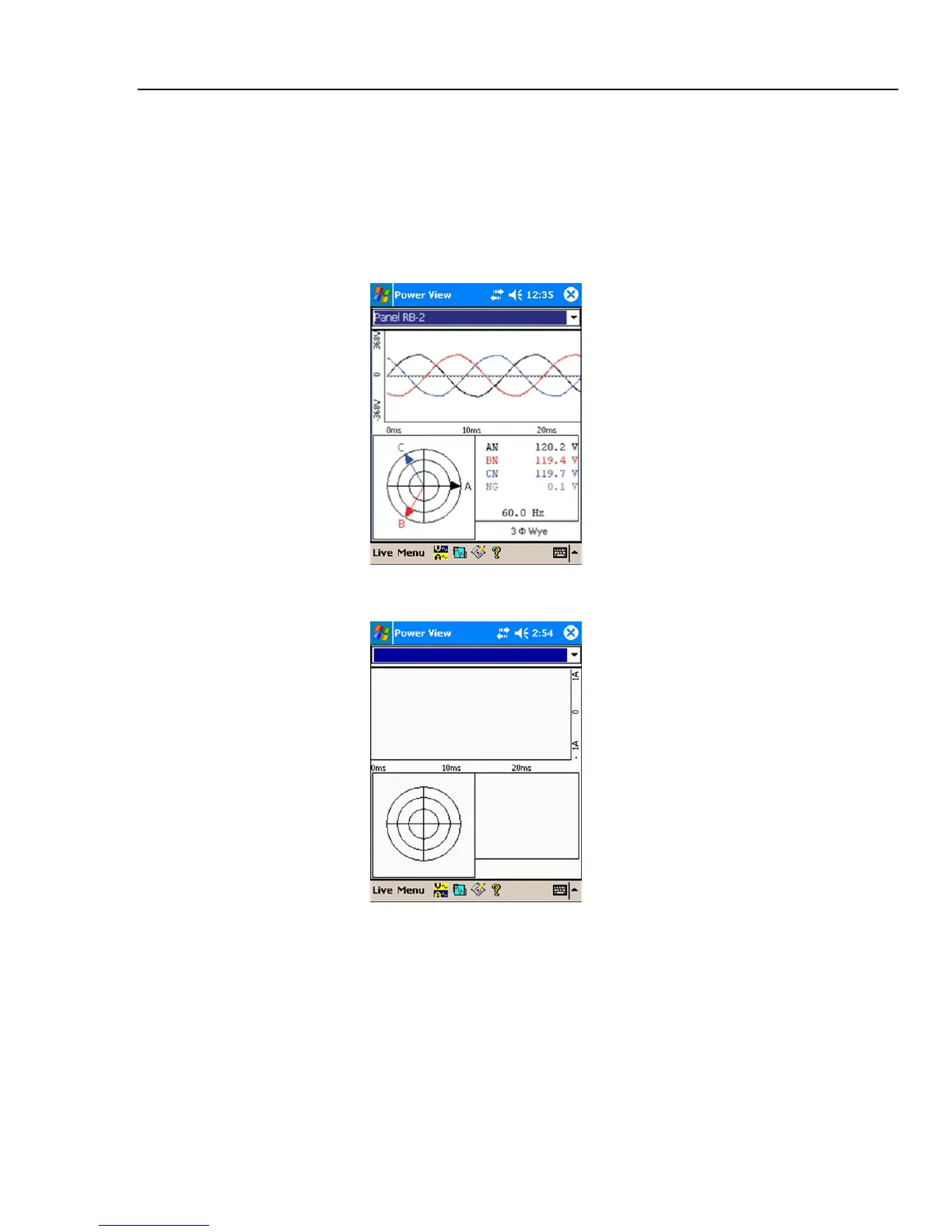

The Home screen contains a 1.5 cycle waveform screen, a digital meter screen, and a
PHASOR screen. The parameters shown in this screen are not configurable. All phases
are shown simultaneously, either all voltage or all current.
If no Recorders are within range, the following screen appears:
