Fluke 1750 - Viewing Phases; Setting up the Recorder

1750
Operators Manual
38

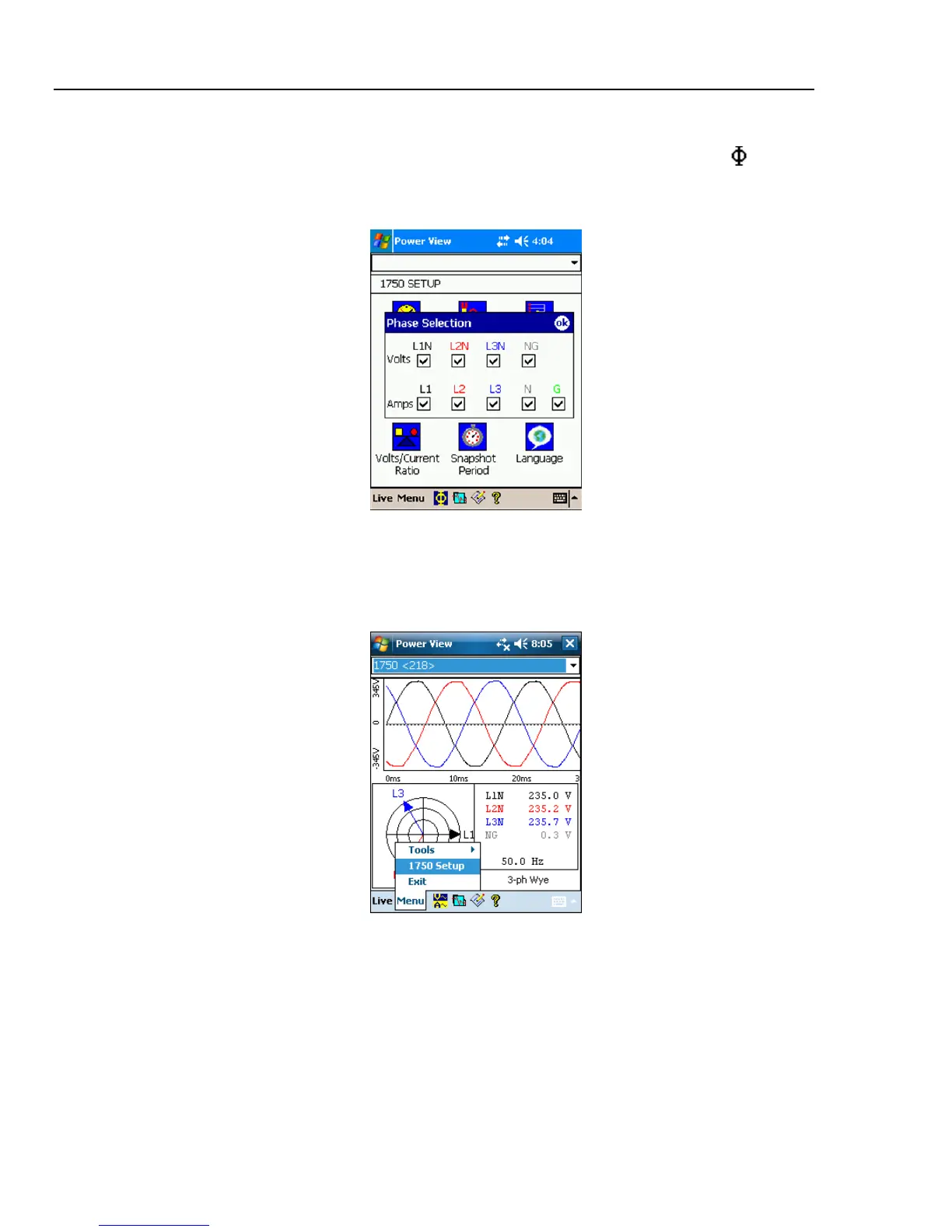

Viewing Phases
In all the detail Live View screen, a line selection menu is available using the
button
at the bottom. The Phase Selection screen reveals check boxes for selecting the voltage
and current channels you want to display.
Setting Up the Recorder
To adjust the settings of the Recorder, tap Menu>1750 Setup.
